Datasheet Texas Instruments OMAP5912 — Даташит
| Производитель | Texas Instruments |
| Серия | OMAP5912 |
Applications Processor
Datasheets
OMAP5912 Applications Processor datasheet
PDF, 2.5 Мб, Версия: E, Файл опубликован: 19 дек 2005
Цены
 Купить OMAP5912 на РадиоЛоцман.Цены — от 2 373 до 8 299 ₽24 предложений от 17 поставщиков Процессоры - специализированные Applications Processor | |||
| OMAP5912ZDY Texas Instruments | 2 373 ₽ | ||
| OMAP5912ZDY Texas Instruments | 2 861 ₽ | ||
| OMAP5912ZZG Texas Instruments | 3 010 ₽ | ||
| OMAP5912ZDYA Texas Instruments | по запросу | ||
Статус
| OMAP5912ZDY | OMAP5912ZDYA | OMAP5912ZZG | |
|---|---|---|---|
| Статус продукта | Не рекомендуется для новых разработок | Снят с производства | Не рекомендуется для новых разработок |
| Доступность образцов у производителя | Нет | Нет | Нет |
Корпус / Упаковка / Маркировка
| OMAP5912ZDY | OMAP5912ZDYA | OMAP5912ZZG | |
|---|---|---|---|
| N | 1 | 2 | 3 |

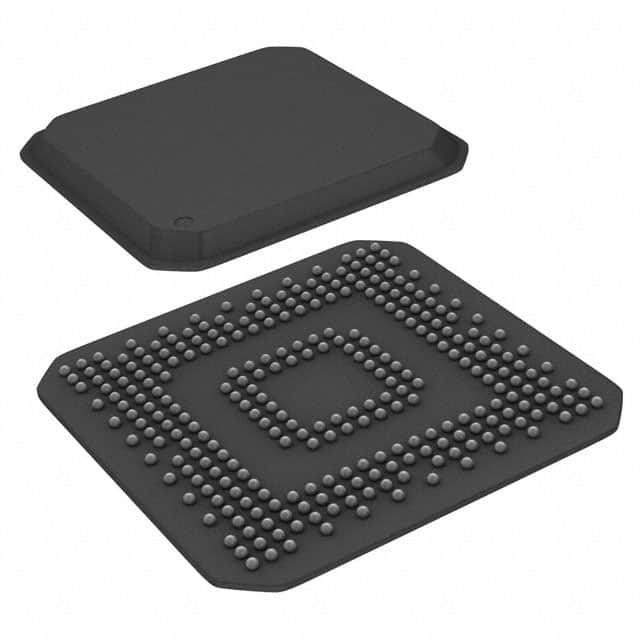

| Pin | 289 | 289 | 289 |
| Package Type | ZDY | ZDY | ZZG |
| Industry STD Term | BGA | BGA | BGA MICROSTAR |
| JEDEC Code | S-PBGA-N | S-PBGA-N | S-PBGA-N |
| Package QTY | 84 | 160 | |
| Carrier | JEDEC TRAY (5+1) | EIAJ TRAY (5+1) | |
| Маркировка | OMAP5912 | OMAP5912ZZG | |
| Width (мм) | 19 | 19 | 12 |
| Length (мм) | 19 | 19 | 12 |
| Thickness (мм) | 1.73 | 1.73 | .9 |
| Pitch (мм) | 1 | 1 | .5 |
| Max Height (мм) | 2.32 | 2.32 | 1.2 |
| Mechanical Data | Скачать | Скачать | Скачать |
Экологический статус
| OMAP5912ZDY | OMAP5912ZDYA | OMAP5912ZZG | |
|---|---|---|---|
| RoHS | Совместим | Не совместим | Совместим |
| Бессвинцовая технология (Pb Free) | Нет | Да |
Application Notes
- DSP Instruction Cache Performance on the OMAP5912PDF, 47 Кб, Файл опубликован: 28 фев 2005
- Enabling high-speed USB OTG functionality on TI DSPsPDF, 191 Кб, Файл опубликован: 18 май 2007
- OMAP591x: Tuning the System Memory Requirements of DSP/BIOS LinkPDF, 251 Кб, Файл опубликован: 16 мар 2005
The DSP/BIOSв„ў Link software has been designed to implement inter-processor communication between a host device and a DSP. For the case of OMAP591x devices, the default configuration of the DSP/BIOS Link software requires that 2MB of system memory is reserved for exclusive use by DSP/BIOS Link. The intention was to provide developers using DSP/BIOS Link plenty of memory to begin with and enab - Programming the DSP MMU in the OMAP5910 DevicePDF, 476 Кб, Файл опубликован: 7 окт 2004
The OMAP5910 device from Texas Instruments (TI) has a new dual-core architecture that is optimized for multimedia applications in a low-power environment. It couples two processorsВ—a TI-enhanced TI925T general-purpose processor and an ultralow-power TMS320C55xв„ў (C55xв„ў) digital signal processor (DSP)В—with a rich set of peripherals and powerful interfaces to achieve optimal per - Using the CSL to complement OS dispatcher in handling Cascaded InterruptsPDF, 299 Кб, Файл опубликован: 8 ноя 2004
This application report discusses how CSL's INTC module could be used to share the task of dispatching interrupts with the OS, in scenarios where the OS's interrupt dispatcher does not comprehend cascaded interrupts.The solution involves having the CSL dispatch the cascaded interrupts alone, while completely leaving the job of dispatching primary CPU interrupts to the OS.We also discuss an - High-Speed Interface Layout Guidelines (Rev. G)PDF, 814 Кб, Версия: G, Файл опубликован: 27 июл 2017
As modern bus interface frequencies scale higher, care must be taken in the printed circuit board (PCB) layout phase of a design to ensure a robust solution.
Модельный ряд
Серия: OMAP5912 (3)
Классификация производителя
- Semiconductors> Processors> Other Processors
