Datasheet Texas Instruments OPA1632 — Даташит
| Производитель | Texas Instruments |
| Серия | OPA1632 |
Fully Differential I/O Audio Amplifier
Datasheets
OPA1632 High-Performance, Fully-Differential Audio Operational Amplifier datasheet
PDF, 1.2 Мб, Версия: C, Файл опубликован: 29 окт 2015
Выписка из документа
Цены

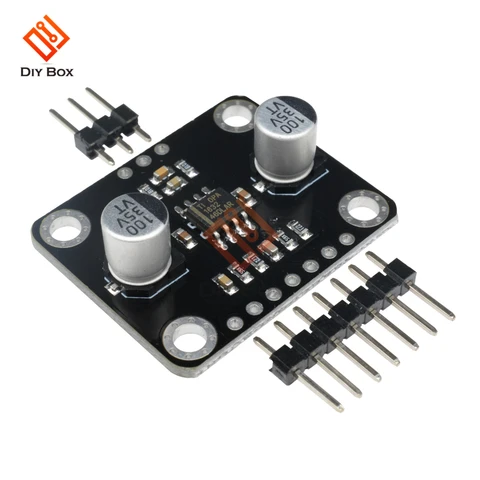

 Купить OPA1632 на РадиоЛоцман.Цены — от 48 до 601 ₽51 предложений от 29 поставщиков Усилитель звуковой мощности, AB, 1 канал, ± 2.5В до ± 16В, MSOP, 8 вывод(-ов) | |||
| OPA1632DGN Texas Instruments | 48 ₽ | ||
| OPA1632DR Texas Instruments | 138 ₽ | ||
| OPA1632DGNR Texas Instruments | 189 ₽ | ||
| OPA1632DGNR Texas Instruments | от 265 ₽ | ||
Статус
| OPA1632D | OPA1632DG4 | OPA1632DGN | OPA1632DGNG4 | OPA1632DGNR | OPA1632DGNRG4 | OPA1632DR | OPA1632DRG4 | |
|---|---|---|---|---|---|---|---|---|
| Статус продукта | В производстве | В производстве | В производстве | В производстве | В производстве | В производстве | В производстве | В производстве |
| Доступность образцов у производителя | Да | Да | Да | Да | Нет | Нет | Нет | Нет |
Корпус / Упаковка / Маркировка
| OPA1632D | OPA1632DG4 | OPA1632DGN | OPA1632DGNG4 | OPA1632DGNR | OPA1632DGNRG4 | OPA1632DR | OPA1632DRG4 | |
|---|---|---|---|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Pin | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Package Type | D | D | DGN | DGN | DGN | DGN | D | D |
| Industry STD Term | SOIC | SOIC | HVSSOP | HVSSOP | HVSSOP | HVSSOP | SOIC | SOIC |
| JEDEC Code | R-PDSO-G | R-PDSO-G | S-PDSO-G | S-PDSO-G | S-PDSO-G | S-PDSO-G | R-PDSO-G | R-PDSO-G |
| Package QTY | 75 | 75 | 80 | 80 | 2500 | 2500 | 2500 | 2500 |
| Carrier | TUBE | TUBE | TUBE | TUBE | LARGE T&R | LARGE T&R | LARGE T&R | LARGE T&R |
| Маркировка | OPA | 1632 | 1632 | 1632 | 1632 | 1632 | OPA | 1632 |
| Width (мм) | 3.91 | 3.91 | 3 | 3 | 3 | 3 | 3.91 | 3.91 |
| Length (мм) | 4.9 | 4.9 | 3 | 3 | 3 | 3 | 4.9 | 4.9 |
| Thickness (мм) | 1.58 | 1.58 | 1.02 | 1.02 | 1.02 | 1.02 | 1.58 | 1.58 |
| Pitch (мм) | 1.27 | 1.27 | .65 | .65 | .65 | .65 | 1.27 | 1.27 |
| Max Height (мм) | 1.75 | 1.75 | 1.1 | 1.1 | 1.1 | 1.1 | 1.75 | 1.75 |
| Mechanical Data | Скачать | Скачать | Скачать | Скачать | Скачать | Скачать | Скачать | Скачать |
Параметры
| Parameters / Models | OPA1632D | OPA1632DG4 | OPA1632DGN | OPA1632DGNG4 | OPA1632DGNR | OPA1632DGNRG4 | OPA1632DR | OPA1632DRG4 |
|---|---|---|---|---|---|---|---|---|
| Additional Features | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown | Burr-Brownв„ў Audio,Shutdown |
| Архитектура | Voltage FB | Voltage FB | Voltage FB | Voltage FB | Voltage FB | Voltage FB | Voltage FB | Voltage FB |
| CMRR(Typ), дБ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| GBW(Typ), МГц | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Input Bias Current(Max), pA | 200000 | 200000 | 200000 | 200000 | 200000 | 200000 | 200000 | 200000 |
| Iq per channel(Max), мА | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 | 17.1 |
| Iq per channel(Typ), мА | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Количество каналов | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Рабочий диапазон температур, C | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 |
| Output Current(Typ), мА | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Package Group | SOIC | SOIC | MSOP-PowerPAD | MSOP-PowerPAD | MSOP-PowerPAD | MSOP-PowerPAD | SOIC | SOIC |
| Package Size: mm2:W x L, PKG | 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) | 8MSOP-PowerPAD: 15 mm2: 4.9 x 3(MSOP-PowerPAD) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) |
| Rail-to-Rail | No | No | No | No | No | No | No | No |
| Rating | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog |
| Slew Rate(Typ), V/us | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| THD + N @ 1 kHz(Typ), % | 0.000022 | 0.000022 | 0.000022 | 0.000022 | 0.000022 | 0.000022 | 0.000022 | 0.000022 |
| Total Supply Voltage(Max), +5V=5, +/-5V=10 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Total Supply Voltage(Min), +5V=5, +/-5V=10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Vn at 1kHz(Typ), нВ/rtГц | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| Vos (Offset Voltage @ 25C)(Max), мВ | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Экологический статус
| OPA1632D | OPA1632DG4 | OPA1632DGN | OPA1632DGNG4 | OPA1632DGNR | OPA1632DGNRG4 | OPA1632DR | OPA1632DRG4 | |
|---|---|---|---|---|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим |
Application Notes
- Using infinite-gain, MFB filter topology in fully differential active filtersPDF, 571 Кб, Файл опубликован: 14 июл 2009
- Analysis of fully differential amplifiersPDF, 295 Кб, Файл опубликован: 11 мар 2005
- Q3 2009 Issue Analog Applications JournalPDF, 2.1 Мб, Файл опубликован: 14 июл 2009
- Fully-Differential Amplifiers (Rev. E)PDF, 867 Кб, Версия: E, Файл опубликован: 19 сен 2016
Differential signaling has been commonly used in audio, data transmission, and telephone systems for many years because of its inherent resistance to external noise sources. Today, differential signaling is becoming popular in high-speed data acquisition, where the ADC’s inputs are differential and a differential amplifier is needed to properly drive them.Two other advantages of di - Designing for low distortion with high-speed op ampsPDF, 277 Кб, Файл опубликован: 2 мар 2005
- Compensate Transimpedance Amplifiers Intuitively (Rev. A)PDF, 69 Кб, Версия: A, Файл опубликован: 30 мар 2005
Transimpedance amplifiers are used to convert low-level photodiode currents to usable voltage signals. All too often, the amplifiers have to be empirically compensated to operate properly. The problem can be easily understood if one looks at all the elements involved. - Noise Analysis for High Speed Op Amps (Rev. A)PDF, 256 Кб, Версия: A, Файл опубликован: 17 янв 2005
As system bandwidths have increased an accurate estimate of the noise contribution for each element in the signal channel has become increasingly important. Many designers are not however particularly comfortable with the calculations required to predict the total noise for an op amp or in the conversions between the different descriptions of noise. Considerable inconsistency between manufactu - Tuning in AmplifiersPDF, 44 Кб, Файл опубликован: 2 окт 2000
Have you ever had the experience of designing an analog gain block with an amplifier that is specified to be unity gain stable only to find that it is oscillating out of control in your circuit? Or have you ever replaced a stable voltage feedback amplifier with a current feedback amplifier to find that the current feedback amplifier immediately oscillates when placed in the amplifier socket? Oscil - Single-Supply Operation of Operational AmplifiersPDF, 77 Кб, Файл опубликован: 2 окт 2000
Operation of op amps from single supply voltages is useful when negative supply voltages are not available. Furthermore, certain applications using high voltage and high current op amps can derive important benefits from single supply operation. - Op Amp Performance AnalysisPDF, 76 Кб, Файл опубликован: 2 окт 2000
This bulletin reflects the analysis power gained through knowledge of an op amp circuit's feedback factor. Feedback dictates the performance of an op amp both in function and in quality. The major specifications of the amplifier descibe an open-loop device awaiting feedback direction of the end circuit's function. Just how well the amplifier performs the function reflects through the feedback inte
Модельный ряд
Серия: OPA1632 (8)
Классификация производителя
- Semiconductors> Amplifiers> Operational Amplifiers (Op Amps)> Audio Op Amps
