GSIB620, GSIB640, GSIB660, GSIB680
www.vishay.com Vishay General Semiconductor Single-Phase Single In-Line Bridge Rectifiers
FEATURES
• UL recognition file number E54214
• Thin single in-line package
• Glass passivated chip junction
• High surge current capability
• High case dielectric strength of 1500 VRMS ~ • Solder dip 275 °C max. 10 s, per JESD 22-B106 ~ ~ ~ • Material categorization: for definitions of compliance

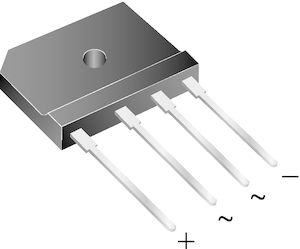

please see www.vishay.com/doc?99912 Case Style GSIB-5S TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification
for switching power supply, home appliances, office
equipment, industrial automation applications. PRIMARY CHARACTERISTICS
MECHANICAL DATA Package GSIB-5S IF(AV) 6.0 A VRRM 200 V, 400 V, 600 V, 800 V IFSM 180 A IR 10 μA VF at IF = 3.0 V 0.95 V Terminals: Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test TJ max. 150 °C Polarity: As marked on body Diode variations In-Line Mounting Torque: 10 cm-kg (8.8 inches-lbs) max. Case: GSIB-5S
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 -RoHS-compliant, commercial grade
per Recommended Torque: 5.7 cm-kg (5 inches-lbs) MAXIMUM RATINGS (TA = 25 °C unless otherwise specified)
PARAMETER SYMBOL GSIB620 GSIB640 GSIB660 GSIB680 UNIT Maximum repetitive peak reverse voltage VRRM 200 400 600 800 V Maximum RMS voltage VRMS 140 280 420 560 V Maximum DC blocking voltage VDC 200 400 600 800 V Maximum average forward rectified
output current at TC = 100 °C (1)
TA = 25 °C (2) Peak forward surge current single sine-wave
superimposed on rated load (JEDEC method)
Rating for fusing (t < 8.3 ms) …
