Transistor tester

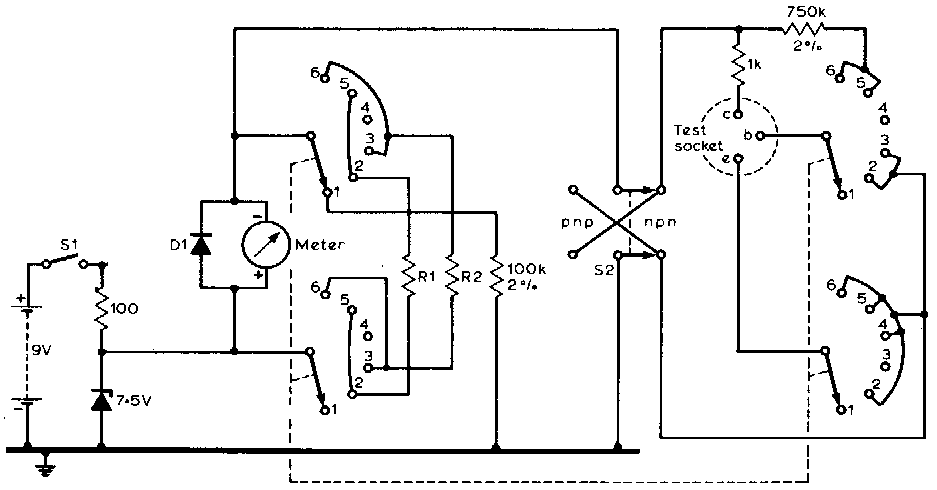

M, 0.1mA fsd; D1 GEX34; R1, to shunt meter to 5mA fsd; R2, to shunt meter to 1mA fsd; the four six-way swithes are ganged

Transistor tester

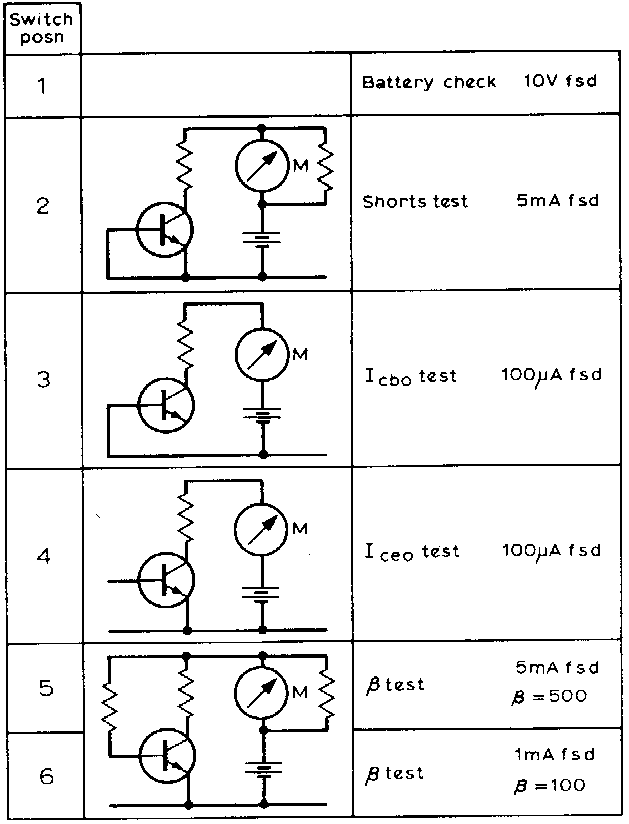

Test corresponding to switch positions 1-6 of previous figure.

Test corresponding to switch positions 1-6 of previous figure
