SO T3 PDTB1xxxU series
500 mA, 50 V PNP resistor-equipped transistors
Rev. 1 -- 6 May 2014 Product data sheet 1. Product profile
1.1 General description

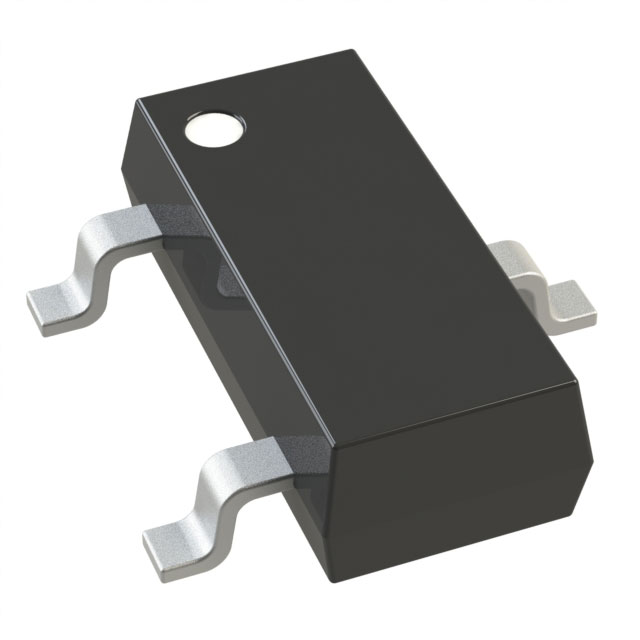

PNP Resistor-Equipped Transistor (RET) family in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Package NXP PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB114EU SOT323 JEITA SC-70 JEDEC NPN complement PDTD113EU PDTD113ZU PDTD123EU PDTD123YU PDTD143EU PDTD143XU PDTD114EU Package configuration very small 23 Type number 1.2 Features 500 mA output current capability Built-in bias resistors Simplifies circuit design Reduces component count 10 % resistor ratio tolerance AEC-Q101 qualified High temperature applications up to 175 °C 1.3 Applications IC inputs control Cost-saving alternative to BC807 or BC817 series transistors in digital applications Switching loads NXP Semiconductors PDTB1xxxU series
500 mA, 50 V PNP resistor-equipped transistors 1.4 Quick reference data
Table 2. Symbol VCEO IO R1 Quick reference data Parameter collector-emitter voltage output current bias resistor 1 (input) PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB114EU R2 bias resistor 2 (base-emitter) PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB114EU 1 10 2.2 10 4.7 10 10 k k k k k k k 1 1 2.2 2.2 4.7 4.7 10 k k k k k k k Conditions open base Min Typ Max 50 500 Unit V mA 2. Pinning information
Table 3. Pin 1 2 3 Pinning Description input (base) GND (emitter) output (collector)
1 2 2
sym003 Simplified outline
3 Graphic symbol
3
R1 1
R2 3. Ordering information
Table 4. Ordering information Package Name PDTB1xxxU series SC-70 Description plastic surface-mounted package; 3 leads Version SOT323 Type number PDTB1XXXU_SER All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2014. All rights reserved. Product data sheet Rev. 1 -- 6 May 2014 2 of 27 NXP Semiconductors PDTB1xxxU series
500 mA, 50 V PNP resistor-equipped transistors 4. Marking
Table 5. Marking codes Marking code[1] ZG* ZH* ZJ* ZK* ZL* ZM* ZN* Type number PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB114EU
[1] * = placeholder for manufacturing site code 5. Limiting values
Table 6. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol VCBO VCEO VEBO Parameter collector-base voltage collector-emitter voltage emitter-base voltage PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB114EU VI input voltage PDTB113EU PDTB113ZU PDTB123EU PDTB123YU PDTB143EU PDTB143XU PDTB …
