Datasheet IFM Electronic RB-1000-I24/L2 — Даташит

RB6029

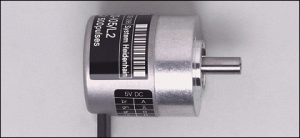

RB-1000-I24/L2 Encoders 1: reference mark 2: M3 5 mm deep Made in Germany Product characteristics Solid shaft encoder HTL-output 50 mA, short-circuit protected < 1 min Cable Resolution 1000 Electrical data Operating voltage Current consumption Phase difference A und B Switching frequency Pulse diagram output A [V] [mA] [°] [kHz] 10.30 DC 150 90 160 output B 0 index Outputs Output function Measuring / setting range Encoders Resolution Mechanical data Max. permissible rpm / mech. [1/min] Starting torque Shaft, material Vibration resistance Shock resistance Housing materials Weight Environment Max. relative air humidity Ambient temperature Protection [%] [°C] 75, for a short time 95% -40.70, firmly laid cable IP 64 [kg] [Ncm] [mm] Max. shaft load (at the shaft end) [N] 10000 < 1 (20 °C) axial 5; radial 10 Ш 6, steel (1.4104) 10 g (55.2000 Hz) 100 g (6 ms) aluminium 0.261 1000 HTL-output 50 mA, short-circuit protected < 1 min RB6029
RB-1000-I24/L2 Tests / approvals MTTF Electrical connection Connection Wiring brown: A green: 0VA grey: B pink: 0VB red: 0 index black: 0 V 0 index brown/green: L+ (Up) white/green: L-0 V (Un) lilac: error (inv.) Screen: Housing Remarks Remarks Pack quantity [piece] *) for a short time 95% 1 PUR cable / 2 m; radial, can also be used axially [Years] 190 Encoders ifm electronic gmbh FriedrichstraЯe 1 45128 Essen -We reserve the right to make technical alterations without prior notice. -GB -RB6029 -12.04.2013 …
