74HC590
8-bit binary counter with output register; 3-state
Rev. 02 — 28 April 2009 Product data sheet 1. General description
The 74HC590 is a high-speed Si-gate CMOS device and is pin compatible with Low
power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A.
The 74HC590 is an 8-bit binary counter with a storage register and 3-state outputs. The
storage register has parallel (Q0 to Q7) outputs. The binary counter features a master
reset counter (MRC) and count enable (CE) inputs. The counter and storage register have
separate positive edge triggered clock (CPC and CPR) inputs. If both clocks are
connected together, the counter state always is one count ahead of the register. Internal
circuitry prevents clocking from the clock enable. A ripple carry output (RCO) is provided
for cascading. Cascading is accomplished by connecting RCO of the first stage to CE of
the second stage. Cascading for larger count chains can be accomplished by connecting
RCO of each stage to the counter clock (CPC) input of the following stage. If both clocks
are connected together, the counter state always is one count ahead of the register. 2. Features n Counter and register have independent clock inputs
Counter has master reset
Complies with JEDEC standard no. 7A

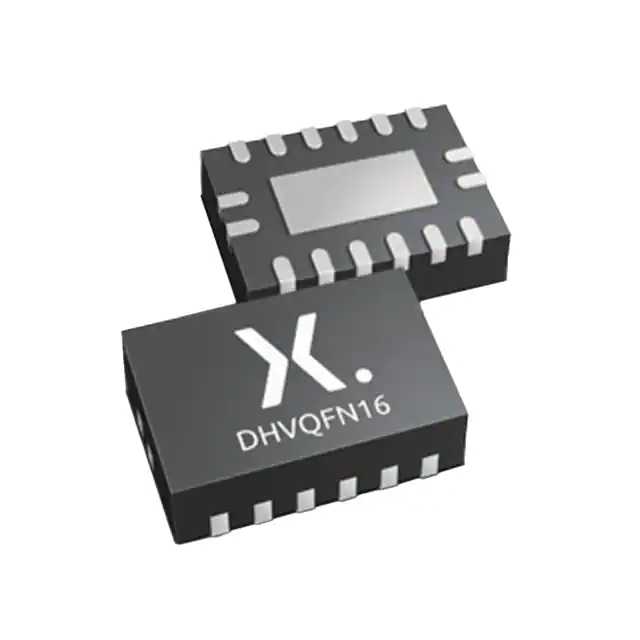

Multiple package options
ESD protection:
u HBM JESD22-A114E exceeds 2000 V
u MM JESD22-A115-A exceeds 200 V
u CDM JESD22-C101C exceeds 2000 V
n Specified from −40 °C to +85 °C and from −40 °C to +125 °C 3. Ordering information …
