EVALUATION KIT AVAILABLE MAX20002/MAX20003 36V, 220kHz to 2.2MHz, 2A/3A Fully Integrated Step-Down Converters with 15A Operating Current

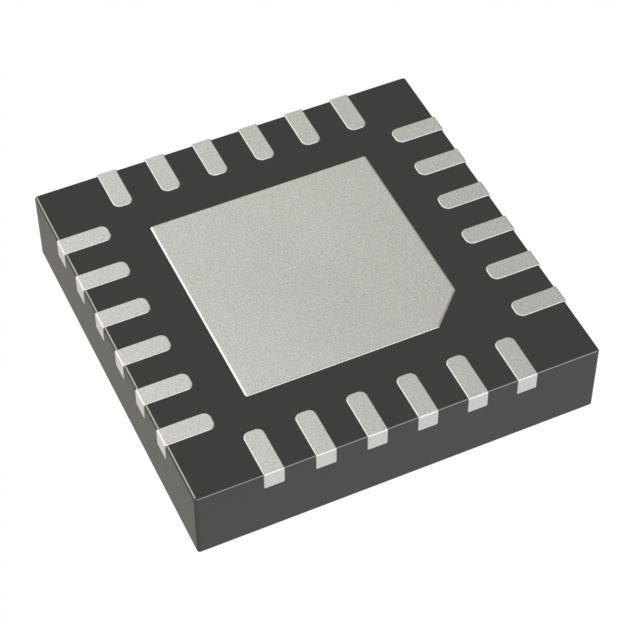

Benefits and Features General Description The MAX20002/MAX20003 are small, synchronous buck converters with integrated high-side and low-side MOSFETs. Each device is designed to deliver up to 2A/3A with input voltages from 3.5V to 36V, while using only 15µA quiescent current at no load. Voltage quality can be monitored by observing the PGOOD signal. The devices can operate in dropout by running at 98% duty cycle, making them ideal for automotive applications. The devices offer fixed output voltages of 5V/3.3V, along with the ability to program the output voltage between 1V to 10V. Frequency can be programmed using a resistor to ground on the FOSC pin from 220kHz to 2.2MHz. The devices offer a forced fixed-frequency mode and skip mode with ultra-low quiescent current of 15µA. They have a pin that can be programmed to turn on/off the spread spectrum, further helping systems designers with better EMC management. The MAX20002/MAX20003 are available in a small 5mm x 5mm 20-pin TQFN package with exposed pad and use very few external components. Synchronous DC-DC Converter with Integrated FETs MAX20002 = 2A MAX20003 = 3A 15µA Quiescent Current When in Standby Mode Small Solution Size Saves Space 220kHz to 2.2MHz Adjustable Frequency Programmable 1V to 10V Output for the Buck or Fixed 5V/3.3V Options Available Fixed 8ms Internal Soft-Start Fixed Output Voltage with ±2% Output Accuracy (5V/3.3V) or Externally Resistor Adjustable (1V to 10V) with ±1% FB Accuracy PGOOD Output and High-Voltage EN Input Simplify Power Sequencing Protection Features and Operating Range Ideal for Automotive Applications Operating VIN Range of 3.5V to 36V 42V Load-Dump Protection 99% Duty-Cycle Operation with Low Dropout -40°C to +125°C Automotive Temperature Range AEC-Q100 Qualified Applications Point-of-Load Applications in Automotive Distributed DC Power Systems Navigation and Radio Head Units Ordering Information appears at end of data sheet. 19-7311; Rev 4; 3/16 MAX20002/MAX20003 36V, 220kHz to 2.2MHz, 2A/3A Fully Integrated Step-Down Converters with 15A Operating Current Typical Application Circuit/Block Diagram 2.2µH 0.1µF
FSYNC N.C. LX LX LX VOUT = 3.3V/5V AT 3A, 2.2MHz 2 x 22µF FOSC 12k OUT BST PGND FB MAX20002 MAX20003 PGND COMP 20.0k BIAS
SUPSW EN SPS PGOOD
SUPSW SUP 1,000pF EP 2.2µF AGND 4.7µF 2.2µF VBAT www.maximintegrated.com Maxim Integrated 2 MAX20002/MAX20003 36V, 220kHz to 2.2MHz, 2A/3A Fully Integrated Step-Down Converters with 15A O …
