Datasheet Texas Instruments ADS1230IPW — Даташит
| Производитель | Texas Instruments |
| Серия | ADS1230 |
| Модель | ADS1230IPW |
20-битный дельта-сигма АЦП для мостовых датчиков 16-TSSOP от -40 до 85
Datasheets
20-Bit Analog-to-Digital Converter for Bridge Sensors datasheet
PDF, 1.1 Мб, Версия: B, Файл опубликован: 5 сен 2012
Выписка из документа
 Купить ADS1230IPW на РадиоЛоцман.Цены — от 46 до 1 749 ₽48 предложений от 20 поставщиков Микросхема Преобразователь AD, Analog to Digital Converter 20Bit Delta Sigma ADC for Bridge Sensors Single ADC Delta-Sigma 80sps 20Bit Serial 16Pin... | |||
| ADS1230IPW Texas Instruments | 621 ₽ | ||
| ADS1230IPW. Texas Instruments | от 1 108 ₽ | ||
| ADS1230IPW Texas Instruments | от 1 749 ₽ | ||
| ADS1230IPW Texas Instruments | по запросу | ||
Статус
| Статус продукта | В производстве (Рекомендуется для новых разработок) |
| Доступность образцов у производителя | Да |

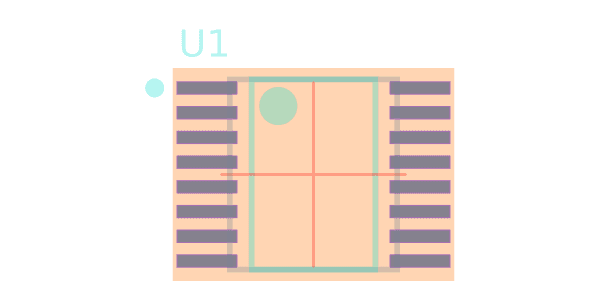

Корпус / Упаковка / Маркировка
| Pin | 16 |
| Package Type | PW |
| Industry STD Term | TSSOP |
| JEDEC Code | R-PDSO-G |
| Package QTY | 90 |
| Carrier | TUBE |
| Маркировка | ADS1230 |
| Width (мм) | 4.4 |
| Length (мм) | 5 |
| Thickness (мм) | 1 |
| Pitch (мм) | .65 |
| Max Height (мм) | 1.2 |
| Mechanical Data | Скачать |
Параметры
| # Input Channels | 1 |
| Analog Voltage AVDD(Max) | 5.3 В |
| Analog Voltage AVDD(Min) | 2.7 В |
| Архитектура | Delta-Sigma |
| Digital Supply(Max) | 5.3 В |
| Digital Supply(Min) | 2.7 В |
| INL(Max) | 6.29 +/-LSB |
| Input Range(Max) | 0.039 В |
| Тип входа | Differential,Single-Ended |
| Integrated Features | 50/60 Hz Rejection,Oscillator,PGA |
| Interface | SPI |
| Multi-Channel Configuration | N/A |
| Рабочий диапазон температур | от -40 до 85 C |
| Package Group | TSSOP |
| Package Size: mm2:W x L | 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) PKG |
| Power Consumption(Typ) | 2.9 mW |
| Rating | Catalog |
| Reference Mode | Ext |
| Разрешение | 20 Bits |
| Sample Rate (max) | 80SPS SPS |
| Sample Rate(Max) | 0.00008 MSPS |
Экологический статус
| RoHS | Совместим |
Application Notes
- Delta-Sigma ADC Design for Bridge Sensor ApplicationsPDF, 98 Кб, Файл опубликован: 30 сен 2011
This application report reviews several different types of bridge sensors, including characteristics of each type, and discusses the key parameters of delta-sigma (О”ОЈ) analog-to-digital converters (ADCs) at the system level. Additionally, the parameters of a О”ОЈ ADC are considered for use in common bridge sensor applications - Digital Filter Types in Delta-Sigma ADCsPDF, 219 Кб, Файл опубликован: 27 июн 2017
This application report discusses digital filters which are a ubiquitous feature in delta-sigma analog todigital converters (ADCs). Digital low-pass filters are essential to the functionality of a delta-sigma ADCwhich relies on oversampling and noise shaping to push quantization noise out of band. There arevariations between the types of digital filters used in delta-sigma ADCs that provide - Analog-to-Digital Converter Grounding Practices Affect System Performance (Rev. A)PDF, 69 Кб, Версия: A, Файл опубликован: 18 май 2015
- A Glossary of Analog-to-Digital Specifications and Performance Characteristics (Rev. B)PDF, 425 Кб, Версия: B, Файл опубликован: 9 окт 2011
This glossary is a collection of the definitions of Texas Instruments' Delta-Sigma (О”ОЈ), successive approximation register (SAR), and pipeline analog-to-digital (A/D) converter specifications and performance characteristics. Although there is a considerable amount of detail in this document, the product data sheet for a particular product specification is the best and final reference. - Principles of Data Acquisition and Conversion (Rev. A)PDF, 132 Кб, Версия: A, Файл опубликован: 16 апр 2015
Модельный ряд
Серия: ADS1230 (6)
- ADS1230IPW ADS1230IPWG4 ADS1230IPWR ADS1230IPWRG4 HPA00468IPWR HPA00630IPWR
Классификация производителя
- Semiconductors > Data Converters > Analog-to-Digital Converters (ADCs) > Precision ADCs (<=10MSPS)
