THS6062
www.ti.com SLOS228D – JANUARY 1999 – REVISED OCTOBER 2007 LOW-NOISE ADSL DUAL DIFFERENTIAL RECEIVER
FEATURES 1 SOIC (D) AND MSOP PowerPAD?
(TOP VIEW) ADSL Differential Receiver Low 1.6 nV/в€љHz Voltage Noise High Speed
– 100 MHz Bandwidth [–3 dB, G = 2 (–1)]
– 100 V/μs Slew Rate 90 mA Output Drive (Typ) Very Low Distortion
– THD = –72 dBc (f = 1 MHz, RL = 150 Ω)
– THD = –90 dBc (f = 1 MHz, RL = 1 kΩ) 5 V, ±5 V to ±15 V Typical Operation Available in Standard SOIC or MSOP
PowerPADв„ў Package
2 1OUT
1IN -1IN +
-VCC 1 8 2 7 3 6 4 5 (DGN) PACKAGE VCC+
2OUT
2IN-2IN+ DESCRIPTION

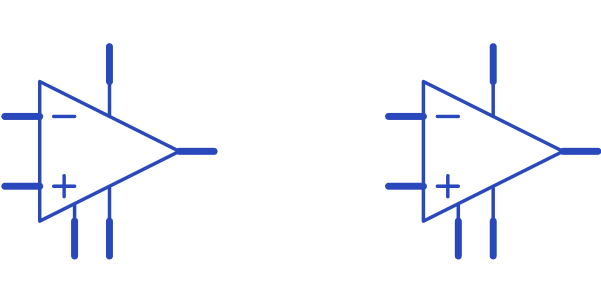

The THS6062 is a high-speed differential receiver designed for ADSL data communication systems. Its very low
1.6 nV/в€љHz voltage noise provides the high signal-to-noise ratios necessary for the long transmission lengths of
ADSL systems over copper telephone lines. In addition, this receiver operates with a very low distortion of –90
dBc (f = 1 MHz, RL = 1 kΩ), exceeding the distortion requirements of ADSL CODECs. The THS6062 is a voltage
feedback amplifier offering a high 100-MHz bandwidth and 100-V/μs slew rate and is stable at gains of 2(–1) or
greater. It operates over a wide range of power supply voltages including 5 V and В±5 V to В±15 V. This device is
available in standard SOIC or MSOP PowerPAD package. The small, surface-mount, thermally-enhanced MSOP
PowerPAD package is fully compatible with automated surface-mount assembly procedures.
