Datasheet Texas Instruments ADS58C28 — Даташит

Производитель	Texas Instruments
Серия	ADS58C28

Datasheets

Цены

Купить ADS58C28 на РадиоЛоцман.Цены — от 1 387 до 71 176 ₽ 19 предложений от 18 поставщиков Микросхема Преобразователь AD, Analog to Digital Converter Dual 11Bit 200MSPS ADC with SNRBoost Dual ADC Pipelined 200MSPS 11Bit Parallel/Serial/LVDS 64Pin VQFN...
AiPCBA Весь мир	ADS58C28IRGC25 Texas Instruments	8 515 ₽	Купить

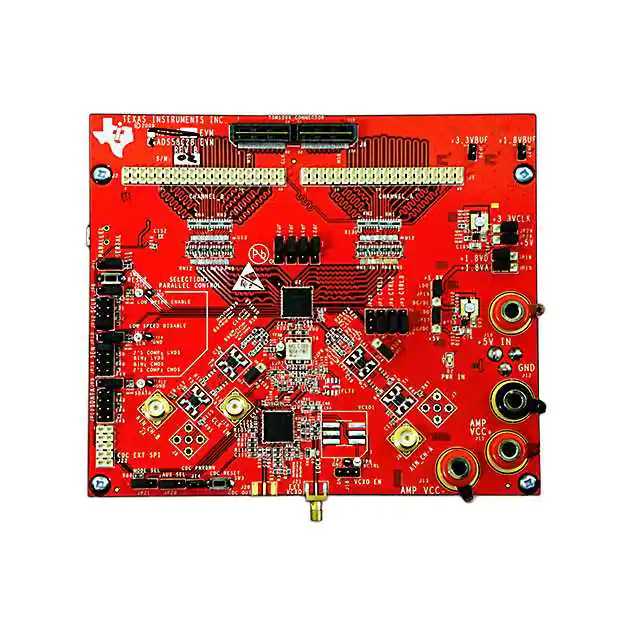

Компонентс Ру Россия	ADS58C28EVM Texas Instruments	67 813 ₽	Купить
ЭлектроПласт- Екатеринбург Россия	ADS58C28IRGCT Texas Instruments	по запросу	Купить
МосЧип Россия	ADS58C28IRGC25 Texas Instruments	по запросу	Купить

Статус

Корпус / Упаковка / Маркировка

Параметры

Parameters / Models	ADS58C28IRGCR	ADS58C28IRGCT
# Input Channels	2	2
Analog Input BW, МГц	600	600
Архитектура	Pipeline	Pipeline
DNL(Max), +/-LSB	1.2	1.2
ENOB, Bits	10.7	10.7
INL(Max), +/-LSB	2	2
INL(Typ), +/-LSB	0.3	0.3
Input Buffer	No	No
Input Range, Vp-p	2	2
Interface	Parallel CMOS,Parallel LVDS	Parallel CMOS,Parallel LVDS
Рабочий диапазон температур, C	от -40 до 85	от -40 до 85
Package Group	VQFN	VQFN
Package Size: mm2:W x L, PKG	64VQFN: 81 mm2: 9 x 9(VQFN)	64VQFN: 81 mm2: 9 x 9(VQFN)
Power Consumption(Typ), mW	505	505
Rating	Catalog	Catalog
Reference Mode	Int	Int
Разрешение, Bits	11	11
SFDR, дБ	84	84
SINAD, дБ	66.6	66.6
SNR, дБ	66.6	66.6
Sample Rate(Max), MSPS	200	200

Экологический статус

Application Notes

• Скачать
  Using Windowing With SNRBoost 3G Technology
  PDF, 498 Кб, Файл опубликован: 30 авг 2010
  Coherency is a well-known requirement when using FFT techniques to examine the spectrum of the output of an analog-to-digital converter. SNRBoost(3G) technology results in loss in coherency, and this can be seen as an unstable noise floor in the spectrum. Windowing of the ADC output is a well-known solution to restore coherency and stable spectrum.However, windowing also modifies the amplitude o
• Скачать
  Understanding Low-Amplitude Behavior of 11-bit ADCs
  PDF, 678 Кб, Файл опубликован: 22 окт 2011
  In TI’s line of high-speed analog-to-digital converters (ADCs) with SNRBoost technology, output amplitude tends to deviate from its expected value when the applied input amplitude is small. This application note explains this phenomenon and the reasons it occurs.
• Скачать
  Power Supply Design for the ADS41xx (Rev. A)
  PDF, 401 Кб, Версия: A, Файл опубликован: 29 дек 2011
  System designers traditionally power the high-speed data converter in their systems from a low-noise, low-dropout linear regulator (LDO) in order to achieve the performance described in the analog-to-digital converter (ADC) data sheet. However, LDOs inherently are not very power efficient. Switching regulators, on the other hand, offer good power efficiency but typically come with higher output no
• Скачать
  High-Speed Analog-to-Digital Converter Basics
  PDF, 1.1 Мб, Файл опубликован: 11 янв 2012
  The goal of this document is to introduce a wide range of theories and topics that are relevant tohigh-speed analog-to-digital converters (ADC). This document provides details on sampling theorydata-sheet specifications ADC selection criteria and evaluation methods clock jitter and other commonsystem-level concerns. In addition some end-users will want to extend the performance capabil
• Скачать
  Band-Pass Filter Design Techniques for High-Speed ADCs
  PDF, 733 Кб, Файл опубликован: 27 фев 2012
  Several well-known methods exist for designing passive inductor-capacitor (LC) filters with resistive load terminations. However, when LC filters are used to drive the analog input pins of a high-speed analog-to-digital converter (ADC), special consideration must be given to the ADC input impedance. Not accounting for the ADC input impedance often results in a filter design that does not meet the
• Скачать
  QFN Layout Guidelines
  PDF, 1.3 Мб, Файл опубликован: 28 июл 2006
  Board layout and stencil information for most Texas Instruments Quad Flat No-Lead (QFN) devices is provided in their data sheets. This document helps printed-circuit board designers understand and better use this information for optimal designs.
• Скачать
  CDCE62005 as Clock Solution for High-Speed ADCs
  PDF, 805 Кб, Файл опубликован: 4 сен 2008
  TI has introduced a family of devices well-suited to meet the demands for high-speed ADC devices such as the ADS5527 which is capable of sampling up to 210 MSPS. To realize the full potential of these high-performance products it is imperative to provide a low phase noise clock source. The CDCE62005 clock synthesizer chip offers a real-world clocking solution to meet these stringent requirements
• Скачать
  Smart Selection of ADC/DAC Enables Better Design of Software-Defined Radio
  PDF, 376 Кб, Файл опубликован: 28 апр 2009
  This application report explains different aspects of selecting analog-to-digital and digital-to-analog data converters for Software-Defined Radio (SDR) applications. It also explains how ADS61xx ADCs and the DAC5688 from Texas Instruments fit properly for SDR designs.
• Скачать
  Driving High-Speed ADCs: Circuit Topologies and System-Level Parameters (Rev. A)
  PDF, 327 Кб, Версия: A, Файл опубликован: 10 сен 2010
  This application report discusses the performance-related aspects of passive and active interfaces at the analog input of high-speed pipeline analog-to-digital converters (ADCs). The report simplifies the many possibilities into two main categories: passive and active interface circuits. The first section of the report gives an overview of equivalent models of buffered and unbuffered ADC input cir
• Скачать
  Phase Noise Performance and Jitter Cleaning Ability of CDCE72010
  PDF, 2.3 Мб, Файл опубликован: 2 июн 2008
  This application report presents phase noise data taken on the CDCE72010 jitter cleaner and synchronizer PLL device. The phase noise performance of the CDCE72010 depends on the phase noise of the reference clock VCXO clock and the CDCE72010 itself. This application report shows the phase noise performance at several of the most popular CDMA frequencies. This data helps the user to choose the rig
• Скачать
  CDCE72010 as a Clocking Solution for High-Speed Analog-to-Digital Converters
  PDF, 424 Кб, Файл опубликован: 8 июн 2008
  Texas Instruments has recently introduced a family of devices suitable to meet the demands of high-speed high-IF sampling analog-to-digital converters (ADCs) such as the ADS5483 which is capable of sampling up to 135 MSPS. To realize the full potential of these high-performance devices the system must provide an extremely low phase noise clock source. The CDCE72010 clock synthesizer chip offers
• Скачать
  Principles of Data Acquisition and Conversion (Rev. A)
  PDF, 132 Кб, Версия: A, Файл опубликован: 16 апр 2015
• Скачать
  A Glossary of Analog-to-Digital Specifications and Performance Characteristics (Rev. B)
  PDF, 425 Кб, Версия: B, Файл опубликован: 9 окт 2011
  This glossary is a collection of the definitions of Texas Instruments' Delta-Sigma (О”ОЈ), successive approximation register (SAR), and pipeline analog-to-digital (A/D) converter specifications and performance characteristics. Although there is a considerable amount of detail in this document, the product data sheet for a particular product specification is the best and final reference.
• Скачать
  Analog-to-Digital Converter Grounding Practices Affect System Performance (Rev. A)
  PDF, 69 Кб, Версия: A, Файл опубликован: 18 май 2015
