Datasheet Texas Instruments AM5716 — Даташит

Производитель	Texas Instruments
Серия	AM5716

Datasheets

Цены

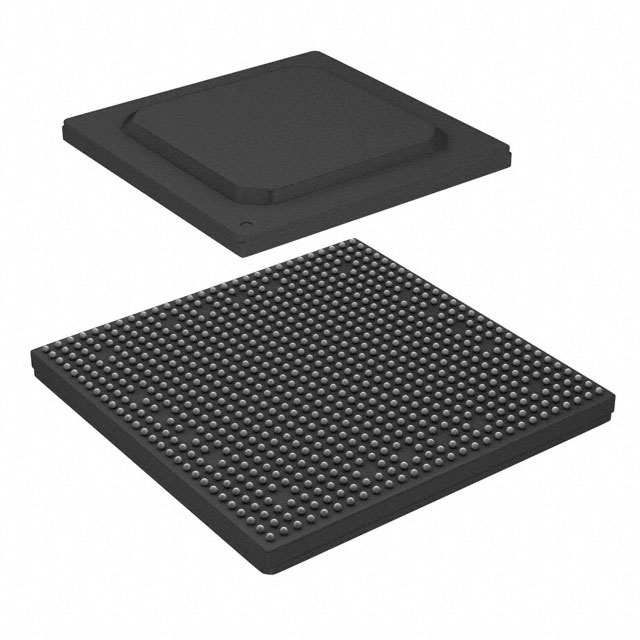

Купить AM5716 на РадиоЛоцман.Цены — от 2 398 до 8 659 ₽ 16 предложений от 9 поставщиков ARM® Cortex®-A15 Microprocessor IC SitaraTM1 Core, 32-Bit 500MHz 760-FCBGA (23x23)
Akcel Весь мир	AM5716AABCD Texas Instruments	от 2 398 ₽	Купить
T-electron Россия и страны СНГ	AM5716AABCD Texas Instruments	2 437 ₽	Купить
ЧипСити Россия	AM5716AABCX Texas Instruments	3 010 ₽	Купить
FAV Technology Весь мир	AM5716AABCDA Texas Instruments	по запросу	Купить

Статус

Корпус / Упаковка / Маркировка

Параметры

Parameters / Models	AM5716AABCD	AM5716AABCDA	AM5716AABCDEA	AM5716AABCX	AM5716AABCXA	AM5716AABCXEA	AM5716AABCXEQ1	AM5716AABCXQ1
ARM CPU	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15	1 ARM Cortex-A15
ARM MHz, Max.	500,1500	500,1500	500,1500	500,1500	500,1500	500,1500	500,1500	500,1500
ARM MIPS, Max.	1750,5250	1750,5250	1750,5250	1750,5250	1750,5250	1750,5250	1750,5250	1750,5250
Application	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics	Communications Equipment,Enterprise Systems,Industrial,Personal Electronics
CAN	2	2	2	2	2	2	2	2
CSI-2	2	2	2	2	2	2	2	2
Co-Processor, s	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS	2 ARM Cortex-M4,4 PRU-ICSS
DMA, Ch	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA	64-Ch EDMA
DRAM	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L	DDR3,DDR3L
DSP	1 C66x	1 C66x	1 C66x	1 C66x	1 C66x	1 C66x	1 C66x	1 C66x
DSP MHz, Max.	500,750	500,750	500,750	500,750	500,750	500,750	500,750	500,750
EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC	10/100/1000,2-Port 1Gb Switch,4-Port 10/100 PRU EMAC
General Purpose Memory	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)	1 16-bit (GPMC, NAND flash,NOR Flash,SRAM)
I2C	5	5	5	5	5	5	5	5
IO Supply, В	1.8,3.3	1.8,3.3	1.8,3.3	1.8,3.3	1.8,3.3	1.8,3.3	1.8,3.3	1.8,3.3
Industrial Protocols	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III	1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III
MMC/SD	4	4	4	4	4	4	4	4
McASP	8	8	8	8	8	8	8	8
On-Chip L1 Cache	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)	32KB (L1D and L1I ARM Cortex-A15)
On-Chip L2 Cache	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)	1 MB w/ECC (ARM Cortex-A15),288 KB (C66x)
Operating Systems	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE	Android,Integrity,Linux,Neutrino,Nucleus,TI-RTOS,VxWorks,Windows Embedded CE
Рабочий диапазон температур, C	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90	от -40 до 105,-40 до 125,0 до 90
Other Hardware Acceleration	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator	Crypto Accelerator
Other On-Chip Memory	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC	512 KB w/ECC
PCI/PCIe	2 PCIe	2 PCIe	2 PCIe	2 PCIe	2 PCIe	2 PCIe	2 PCIe	2 PCIe
PWM, Ch	3	3	3	3	3	3	3	3
Package Group	FCBGA	FCBGA	FCBGA	FCBGA	FCBGA	FCBGA	FCBGA	FCBGA
QSPI	1	1	1	1	1	1	1	1
RTC	1	1	1	1	1	1	1	1
Rating	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog
SATA	1	1	1	1	1	1	1	1
SPI	4	4	4	4	4	4	4	4
Serial I/O	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB	CAN,I2C,SPI,UART,USB
UART, SCI	10	10	10	10	10	10	10	10
USB	2	2	2	2	2	2	2	2
USB 2.0	1	1	1	1	1	1	1	1
USB 3.0	1	1	1	1	1	1	1	1
Video Port, Configurable	6+	6+	6+	6+	6+	6+	6+	6+
eCAP	3	3	3	3	3	3	3	3
eQEP	3	3	3	3	3	3	3	3

Экологический статус

Application Notes

• Скачать
  AM572x GP EVM Power Simulations
  PDF, 22.4 Мб, Файл опубликован: 8 окт 2015
  The purpose of this application report is to present the flow, the environment settings and TI requirements used to perform the analysis of critical power nets of a platform using an application processor. The Power Delivery Network (PDN) performance is measured by extracting and analyzing three printed circuit board (PCB) parameters: DC resistivity, capacitor loop inductance, and broadband target
• Скачать
  IODELAY Application Note for AM57xx Devices (Rev. A)
  PDF, 785 Кб, Версия: A, Файл опубликован: 3 авг 2017
• Скачать
  EMIF Tools (Rev. A)
  PDF, 207 Кб, Версия: A, Файл опубликован: 5 июн 2017
  At the center of every application is the need for memory. With limited on-chip processor memory, external memory serves as a solution for large software systems and data storage, and an unstable external memory interface can result in system failures or hinder software development. To prevent potential system level anomalies and ensure robust systems, hardware must be configured correctly and tes
• Скачать
  Code Composer Studio Device Support Package
  PDF, 87 Кб, Файл опубликован: 19 ноя 2015
  This document gives a brief description of download location and installation procedures of the device Chip Support Package (CSP) for Code Composer Studioв„ў (CCS).
• Скачать
  AM57x Processor SDK Linux: Customization of Multicore Application to Run on a Ne
  PDF, 55 Кб, Файл опубликован: 6 окт 2016
  When customers develop applications that use multiple programmable cores on the AM57x they require a clear understanding of roles and configurations of multiple software (SW) components such as IPC, CMEM, CMA, Linuxв„ў, and SYS/BIOS on slave cores, in order to arrive at correct configuration for their application. This application report describes memory utilization schemes by A15/DSP/IPU, how they
• Скачать
  AM572x/AM571x Compatibility Guide (Rev. C)
  PDF, 182 Кб, Версия: C, Файл опубликован: 22 фев 2016
  This application report provides a summary of the differences between AM572x Silicon Revision 1.1/2.0 and AM571x Silicon Revision 1.0 high-performance ARMВ® devices.
• Скачать
  AN-1281 Bumped Die (Flip Chip) Packages (Rev. A)
  PDF, 2.2 Мб, Версия: A, Файл опубликован: 1 май 2004
  Application Note 1281 Bumped Die (Flip Chip) Packages
• Скачать
  TI DSP Benchmarking
  PDF, 62 Кб, Файл опубликован: 13 янв 2016
  This application report provides benchmarks for the C674x DSP core, the C66x DSP core and the ARMВ®CortexВ®-A15 core. This document also shows how to reproduce these benchmarks on specific hardware platforms.
• Скачать
  Thermal Design Guide for DSP and ARM Application Processors (Rev. A)
  PDF, 324 Кб, Версия: A, Файл опубликован: 17 авг 2016
  This application report has been compiled to provide specific information and considerations regarding thermal design requirements for all DSP and ARM-based single and multi-core processors (collectively referred to as “processors”, “System-on-chip”, or “SoC”). The information contained within this document is intended to provide a minimum level of understanding with regards to the thermal require
• Скачать
  Plastic Ball Grid Array [PBGA] Application Note (Rev. B)
  PDF, 1.6 Мб, Версия: B, Файл опубликован: 13 авг 2015
• Скачать
  High-Speed Interface Layout Guidelines (Rev. G)
  PDF, 814 Кб, Версия: G, Файл опубликован: 27 июл 2017
  As modern bus interface frequencies scale higher, care must be taken in the printed circuit board (PCB) layout phase of a design to ensure a robust solution.

Модельный ряд

Классификация производителя

• Semiconductors> Processors> Sitara Processors> ARM Cortex-A15> AM57x
