Datasheet Texas Instruments BQ24316 — Даташит
| Производитель | Texas Instruments |
| Серия | BQ24316 |
Микросхема защиты передней части зарядного устройства с максимальным напряжением 30 В и OVP 6,8 В.
Datasheets
bq2431x Overvoltage and Overcurrent Protection IC and Li+ Charger Front-End Protection IC datasheet
PDF, 2.2 Мб, Версия: D, Файл опубликован: 29 апр 2016
Выписка из документа
 Купить BQ24316 на РадиоЛоцман.Цены — от 11 до 105 ₽40 предложений от 24 поставщиков Микросхема Чип управления батареи, Charger Front End Protection Charger front end protection IC with 30V max Vin and 6.8V OVP Battery... | |||
| BQ24316DSGT Texas Instruments | от 105 ₽ | ||
| BQ24316DSJ Texas Instruments | по запросу | ||
| BQ24316DSJR Texas Instruments | по запросу | ||
| BQ24316DSGTG4 Texas Instruments | по запросу | ||
Статус
| BQ24316DSGR | BQ24316DSGT | BQ24316DSGTG4 | BQ24316DSJR | BQ24316DSJT | |
|---|---|---|---|---|---|
| Статус продукта | В производстве | В производстве | В производстве | В производстве | В производстве |
| Доступность образцов у производителя | Нет | Да | Да | Нет | Нет |
Корпус / Упаковка / Маркировка
| BQ24316DSGR | BQ24316DSGT | BQ24316DSGTG4 | BQ24316DSJR | BQ24316DSJT | |
|---|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 | 5 |

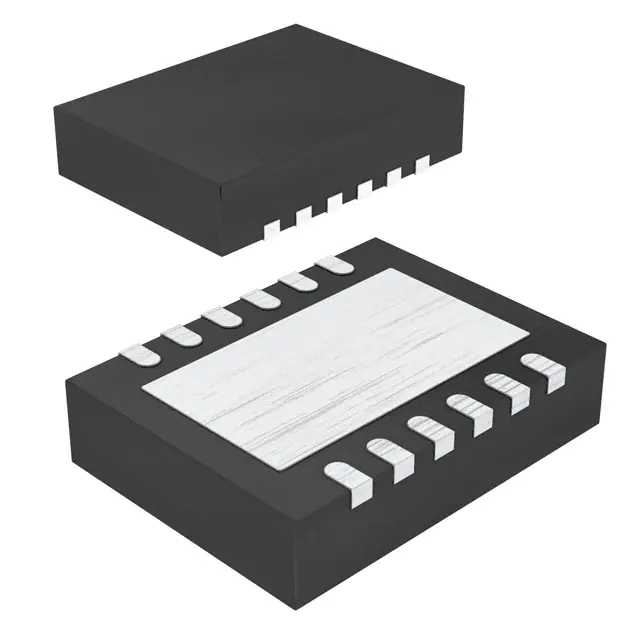

| Pin | 8 | 8 | 8 | 12 | 12 |
| Package Type | DSG | DSG | DSG | DSJ | DSJ |
| Industry STD Term | WSON | WSON | WSON | VSON | VSON |
| JEDEC Code | S-PDSO-N | S-PDSO-N | S-PDSO-N | R-PDSO-N | R-PDSO-N |
| Package QTY | 3000 | 250 | 250 | 3000 | 250 |
| Carrier | LARGE T&R | SMALL T&R | SMALL T&R | LARGE T&R | SMALL T&R |
| Маркировка | CBW | CBW | CBW | BZC | BZC |
| Width (мм) | 2 | 2 | 2 | 4 | 4 |
| Length (мм) | 2 | 2 | 2 | 3 | 3 |
| Thickness (мм) | .75 | .75 | .75 | .9 | .9 |
| Pitch (мм) | .5 | .5 | .5 | .5 | .5 |
| Max Height (мм) | .8 | .8 | .8 | 1 | 1 |
| Mechanical Data | Скачать | Скачать | Скачать | Скачать | Скачать |
Параметры
| Parameters / Models | BQ24316DSGR | BQ24316DSGT | BQ24316DSGTG4 | BQ24316DSJR | BQ24316DSJT |
|---|---|---|---|---|---|
| Communication Interface | No Communication | No Communication | No Communication | No Communication | No Communication |
| Function | Charger Front-End Protection | Charger Front-End Protection | Charger Front-End Protection | Charger Front-End Protection | Charger Front-End Protection |
| Input Over-Current Protection, A | 1 | 1 | 1 | 1 | 1 |
| Input Over-Voltage Protection, В | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| Number of Series Cells, Min | 1 | 1 | 1 | 1 | 1 |
| Package Group | WSON | WSON | WSON | VSON | VSON |
| Protection Feature, s | Over-voltage (OV) | Over-voltage (OV) | Over-voltage (OV) | Over-voltage (OV) | Over-voltage (OV) |
| Rating | Catalog | Catalog | Catalog | Catalog | Catalog |
| Special Features | N/A | N/A | N/A | N/A | N/A |
| Typical Operating Current(Typ), uA | 400 | 400 | 400 | 400 | 400 |
| Vin(Max), В | 30 | 30 | 30 | 30 | 30 |
Экологический статус
| BQ24316DSGR | BQ24316DSGT | BQ24316DSGTG4 | BQ24316DSJR | BQ24316DSJT | |
|---|---|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим | Совместим | Совместим |
Application Notes
- How to Meet 24V Hot Plug-In Test for Charge Front-End bq243xxPDF, 112 Кб, Файл опубликован: 2 янв 2008
The maximum input voltage rating of the bq243xx family of ICs is 30 V. However, some customers like to perform a 24-V hot plug-in transient test to prove its high-voltage capability and reliability from a system level. It is important for system designers to properly design the charging system with correct system-level protections. Usually, a TVS (transient voltage suppression) Zener diode is used - High Voltage Pulse Transient Safety Design fro bq243xxPDF, 611 Кб, Файл опубликован: 4 дек 2007
The maximum input voltage rating of the bq243xx family is 30 V. However, some customers like to do high-voltage pulse transient tests to prove its high-voltage capability and reliability from a system level. This pulse transient voltage could be as high as 45 V with 1-A output current limit and 200-Вµs pulse width. It is important for system designers to properly design the charging system wi - Extending Single Input Charger to Dual Input Applications (Rev. A)PDF, 256 Кб, Версия: A, Файл опубликован: 21 сен 2009
