Datasheet Texas Instruments DCR022405 — Даташит
| Производитель | Texas Instruments |
| Серия | DCR022405 |
Миниатюрные изолированные регулируемые преобразователи постоянного тока в постоянный ток мощностью 2 Вт
Datasheets
DCR02 Miniature, 2-W Isolated Regulated DC-DC Converters datasheet
PDF, 887 Кб, Версия: C, Файл опубликован: 30 ноя 2016
Выписка из документа
Цены
 Купить DCR022405 на РадиоЛоцман.Цены — от 22 до 4 433 ₽32 предложений от 20 поставщиков Преобразователи постоянного тока в постоянный Mini 2W Iso Regs DC/DC Converter | |||
| DCR022405P-U/700 Texas Instruments | 1 406 ₽ | ||
| DCR022405P-U Texas Instruments | 3 122 ₽ | ||
| DCR022405P Texas Instruments | по запросу | ||
| DCR022405P-U Texas Instruments | по запросу | ||
Статус
| DCR022405P | DCR022405P-U | DCR022405P-U/700 | |
|---|---|---|---|
| Статус продукта | В производстве | В производстве | В производстве |
| Доступность образцов у производителя | Да | Да | Нет |

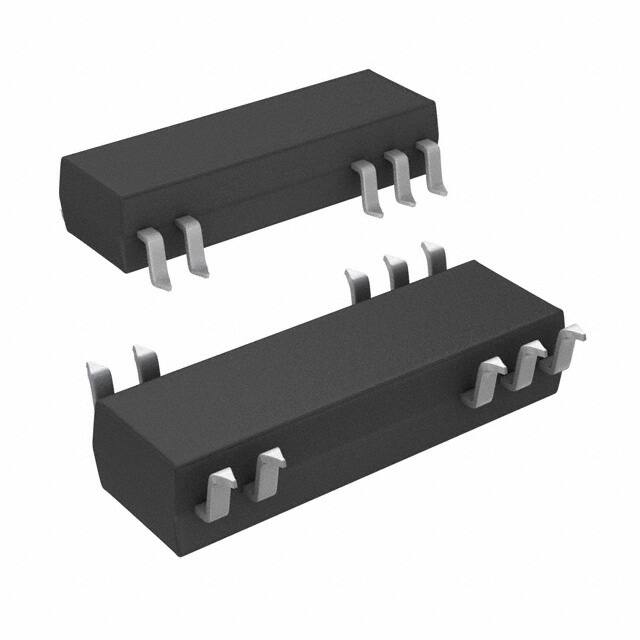

Корпус / Упаковка / Маркировка
| DCR022405P | DCR022405P-U | DCR022405P-U/700 | |
|---|---|---|---|
| N | 1 | 2 | 3 |
| Pin | 10 | 10 | 10 |
| Package Type | NVE | DVS | DVS |
| Industry STD Term | PDIP | SOP | SOP |
| JEDEC Code | R-PDIP-T | R-PDSO-G | R-PDSO-G |
| Package QTY | 20 | 20 | 700 |
| Carrier | TUBE | TUBE | LARGE T&R |
| Маркировка | DCR022405P | DCR022405P-U | DCR022405P-U |
| Width (мм) | 6.61 | 22.36 | 22.36 |
| Length (мм) | 22.86 | 6.6 | 6.6 |
| Thickness (мм) | 3.94 | 3.94 | 3.94 |
| Pitch (мм) | 2.54 | 2.54 | 2.54 |
| Max Height (мм) | 4.95 | 5.33 | 5.33 |
| Mechanical Data | Скачать | Скачать | Скачать |
Параметры
| Parameters / Models | DCR022405P | DCR022405P-U | DCR022405P-U/700 |
|---|---|---|---|
| Iout(Max), A | 0.4 | 0.4 | 0.4 |
| Рабочий диапазон температур, C | от -40 до 70 | от -40 до 70 | от -40 до 70 |
| Package Size: mm2:W x L, PKG | See datasheet (PDIP),10SOP: 240 mm2: 10.5 x 22.86(SOP) | See datasheet (PDIP),10SOP: 240 mm2: 10.5 x 22.86(SOP) | See datasheet (PDIP),10SOP: 240 mm2: 10.5 x 22.86(SOP) |
| Package Type | Leaded | Leaded | Leaded |
| Preset Vout, В | 5 | 5 | 5 |
| Regulated Outputs | 1 | 1 | 1 |
| Special Features | Regulated,Single Output,2W | Regulated,Single Output,2W | Regulated,Single Output,2W |
| Vin(Max), В | 26.4 | 26.4 | 26.4 |
| Vin(Min), В | 21.6 | 21.6 | 21.6 |
| Vout(Max), В | 5.1 | 5.1 | 5.1 |
| Vout(Min), В | 4.9 | 4.9 | 4.9 |
Экологический статус
| DCR022405P | DCR022405P-U | DCR022405P-U/700 | |
|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим |
| Бессвинцовая технология (Pb Free) | Да | Да | Да |
Application Notes
- DC-to-DC Converter Noise ReductionPDF, 40 Кб, Файл опубликован: 2 окт 2000
The inherent switching inside the DC-to-DC converter gives rise to potential sources of noise. This noise manifests itself on the output voltage as spikes at the switching frequency. Due to size and cost requirements, internal filtering is limited but usually adequate for most applications. When excessive noise is suspected, you must rule out extraneous noise sources. - Ext. Synch. of the DCP01/02, DCR01/02, and DCV01 Series of DC/DC Converters (Rev. B)PDF, 120 Кб, Версия: B, Файл опубликован: 20 июл 2009
- AB-177: Optimizing Performance of the DCP01B, DCV01, and DCP02 Series (Rev. A)PDF, 122 Кб, Версия: A, Файл опубликован: 23 окт 2001
The DCP01B, DCV01, and DCP02 are three families of miniature DC/DC converters providing an isolated unregulated voltage output. All are fabricated using a CMOS/DMOS process with the DCP01B replacing the familiar DCP01 family that was fabricated from a bipolar process. The DCP02 is essentially an extension of the DCP01B family providing a higher power output with a significantly improved load regul
Модельный ряд
Серия: DCR022405 (3)
Классификация производителя
- Semiconductors> Power Management> Power Modules> Isolated Module> 1W & 2W Miniature Module
