Datasheet Texas Instruments DP83848K — Даташит
| Производитель | Texas Instruments |
| Серия | DP83848K |
PHYTER Mini LS Промышленный температурный однопортовый приемопередатчик Ethernet 10/100 Мбит/с
Datasheets
DP83848x PHYTER Mini / LS Single Port 10/100 MB/s Ethernet Transceiver datasheet
PDF, 2.3 Мб, Версия: E, Файл опубликован: 8 сен 2014
Выписка из документа
Цены
 Купить DP83848K на РадиоЛоцман.Цены — от 55 до 11 426 ₽17 предложений от 17 поставщиков Набор разработчика, Evaluation Board For Phyter Mini LS Industrial Temperature Single Port 10/100 Ethernet Transceiver | |||
| DP83848K Texas Instruments | 55 ₽ | ||

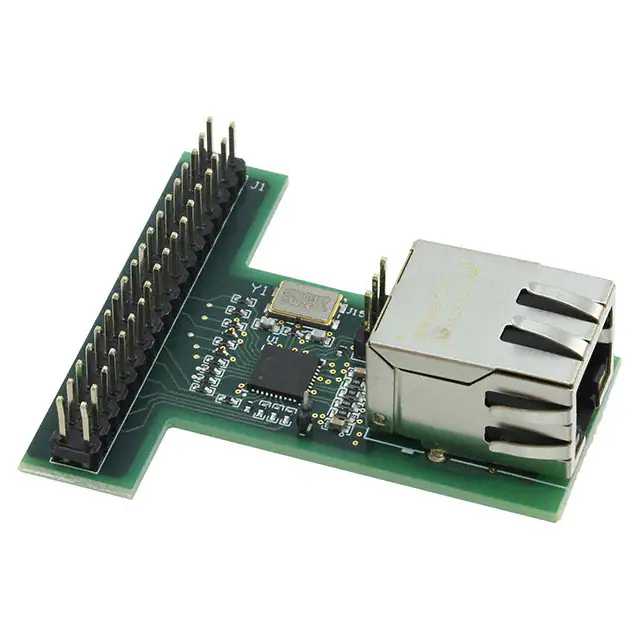

| DP83848K-MAU-EK Texas Instruments | 4 654 ₽ | ||
| DP83848K Texas Instruments | по запросу | ||
| DP83848K | по запросу | ||
Статус
| DP83848KSQ/NOPB | |
|---|---|
| Статус продукта | В производстве |
| Доступность образцов у производителя | Да |
Корпус / Упаковка / Маркировка
| DP83848KSQ/NOPB | |
|---|---|
| N | 1 |
| Pin | 40 |
| Package Type | RTA |
| Industry STD Term | WQFN |
| JEDEC Code | S-PQFP-N |
| Package QTY | 250 |
| Carrier | SMALL T&R |
| Маркировка | 83848KSQ |
| Width (мм) | 6 |
| Length (мм) | 6 |
| Thickness (мм) | .75 |
| Pitch (мм) | .5 |
| Max Height (мм) | .8 |
| Mechanical Data | Скачать |
Параметры
| Parameters / Models | DP83848KSQ/NOPB |
|---|---|
| Cable Length, m | 137 |
| Datarate, Mbps | 10/100 |
| Function | PHY |
| Interface | MII,RMII |
| JTAG1149.1 | No |
| Рабочий диапазон температур, C | от -40 до 85 |
| Package Group | WQFN |
| Package Size: mm2:W x L, PKG | 40WQFN: 36 mm2: 6 x 6(WQFN) |
| Port Count | Single |
| Rating | Catalog |
| Напряжение питания, Volt | 3.3 |
Экологический статус
| DP83848KSQ/NOPB | |
|---|---|
| RoHS | Совместим |
Application Notes
- DP83848 Sin 10/100Mb/s Ethernet Transcvr Reduced Media Indep Interfce RMII Mode (Rev. A)PDF, 168 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report summarizes how a designer can take advantage of RMII mode of the DP83848 toprovide lower cost system design. - DP83848 - Single 10/100 Mb/s Ethernet Transceiver Ini During Pwr Dwn Mode (Rev. A)PDF, 41 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report details the procedure to put the device into Power Down mode during initialization,configure the registers of the device to the desired mode, and then exit Power Down. - AN-1469 PHYTERВ® Design & Layout Guide (Rev. D)PDF, 289 Кб, Версия: D, Файл опубликован: 26 апр 2013
This application report describes PHYTERв„ў design and layout guidelines. - DP83848I PHYTER Single to DP83848K/T PHYTER Mini System Rollover Document (Rev. B)PDF, 145 Кб, Версия: B, Файл опубликован: 26 апр 2013
This document discusses points to be considered when migrating an existing 10/100 Mb/s Ethernet designusing the Texas Instruments DP83848I PHYTER product to the smaller DP83848K or DP83848Tproducts. - DP83848 - Single 10/100 Mb/s Ethernet Transceiver Energy Detect Mode (Rev. A)PDF, 38 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report explains the concept and the operation of the Energy Detect mode of the DP83848. - AN-1499 DP83846 to DP83848C/I/YB PHYTER System Rollover Document (Rev. B)PDF, 178 Кб, Версия: B, Файл опубликован: 26 апр 2013
This is an informational document detailing points to be considered when updating an existing 10/100Mb/s Ethernet design, using Texas Instruments DP83846 Ethernet Physical Layer (PHY) product, to thenew DP83848C/I/YB PHYTER product. Although the basic functions of the device are similar, differencesinclude feature set, pin functions, package and pinout, and possibly register operation. The i - AN-1511 Cable Discharge Event (Rev. A)PDF, 262 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report discusses exposing semiconductor devices to potentially destructive Electro StaticDischarge (ESD). - Reducing Radiated Emissions in Ethernet 10/100 LAN Applications (Rev. A)PDF, 70 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report explains how Texas Instruments' PHYTER products help system designers toreduce radiated emissions in Ethernet 10/100 LAN applications. - AN-1519 DP83848 PHYTERВ® Transformerless Ethernet Operation (Rev. A)PDF, 249 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report describes a method for using Texas Instruments PHYTERв„ў products withouttransformer magnetics. This includes a list of recommendations for configuring transformerless systems. Adescription of a typical network configuration is provided, followed by descriptions of non-typicaltransformerless configurations. Finally, this application note presents PHYTER product pe - AN-1540 Power Measurement of Ethernet Physical Layer Products (Rev. B)PDF, 79 Кб, Версия: B, Файл опубликован: 26 апр 2013
System designers require accurate component power consumption specifications, for the purposes of thermal management, component selection, and power distribution planning. - AN-1507 DP83848 and DP83849 100Mb Data Latency (Rev. B)PDF, 301 Кб, Версия: B, Файл опубликован: 26 апр 2013
The purpose of this document is to define the 100Mb Transmit and Receive latencies of the TexasInstruments Semiconductor DP83848 and DP83849 Ethernet Transceiver family, and to document theircontributions for end-to-end packet transfer in both MII and RMII modes of operation. - Diff Between NSC 10/100 Mb/s Ethernet Physical Layer Devices (Rev. A)PDF, 116 Кб, Версия: A, Файл опубликован: 26 апр 2013
This application report discusses the differences between the 10/100 Mb/s Ethernet Physical Layerdevices, DP8384x. - AN-1548 PHYTER 100 Base-TX Reference Clock Jitter Tolerance (Rev. B)PDF, 126 Кб, Версия: B, Файл опубликован: 26 апр 2013
The use of a reference clock that is less stable than those directly driven from an oscillator may be required for some applications. In addition, some customer applications may require partnering with devices that operate outside of the IEEE 802.3 standard for transmitted jitter.
Модельный ряд
Серия: DP83848K (1)
Классификация производителя
- Semiconductors> Interface> Ethernet
