DS32EV100
www.ti.com SNLS239D – OCTOBER 2006 – REVISED FEBRUARY 2013 DS32EV100 Programmable Single Equalizer
Check for Samples: DS32EV100 FEATURES DESCRIPTION The DS32EV100 programmable equalizer provides
compensation for transmission medium losses and
reduces the medium-induced deterministic jitter for
NRZ data channel. The DS32EV100 is optimized for
operation up to 3.2 Gbps for both cables and FR4
traces. The equalizer channel has eight levels of
input equalization that can be programmed by three
control pins. 1 2 Equalizes Up to 14 dB loss at 3.2 Gbps
8 levels of Programmable Equalization
Operates up to 3.2 Gbps with 40” FR4 Traces
0.12 UI Residual Deterministic Jitter at 3.2
Gbps with 40” FR4 Traces
Single 2.5V or 3.3V Power Supply
Supports AC or DC-Coupling with Wide Input
Common-Mode
Low power Consumption: 100 mW Typ at 2.5V

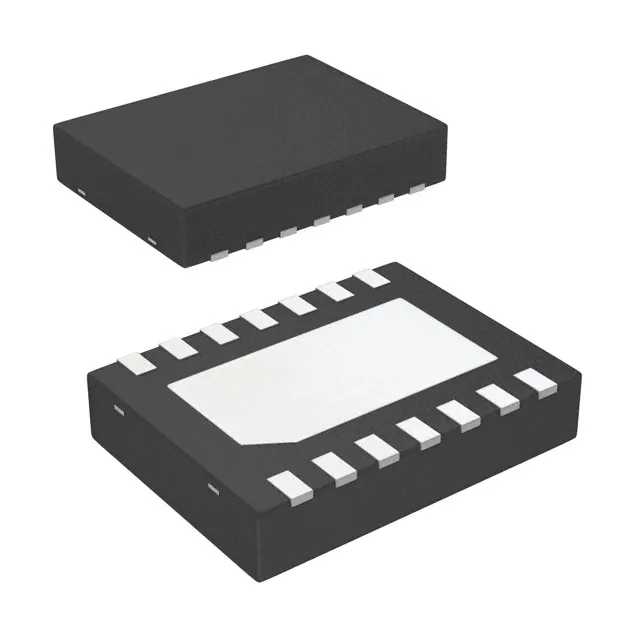

Small 3 mm x 4 mm 14-pin WSON Package
> 8 kV HBM ESD Rating
-40 to 85В°C Operating Temperature Range The equalizer supports both AC and DC-coupled data
paths for long run length data patterns such as
PRBS-31, and balanced codes such as 8b/10b. The …
