DS64EV100
www.ti.com SNLS232E – OCTOBER 2006 – REVISED FEBRUARY 2013 DS64EV100 Programmable Single Equalizer
Check for Samples: DS64EV100 FEATURES DESCRIPTION The DS64EV100 programmable equalizer provides
compensation for transmission medium losses and
reduces the medium-induced deterministic jitter for
NRZ data channel. The DS64EV100 is optimized for
operation up to 10 Gbps for both cables and FR4
traces. The equalizer channel has eight levels of
input equalization that can be programmed by three
control pins. 1 2 Equalizes up to 24 dB loss at 10 Gbps
Equalizes up to 22 dB loss at 6.4 Gbps
8 levels of programmable equalization
Operates up to 10 Gbps with 30” FR4 traces
Operates up to 6.4 Gbps with 40” FR4 traces
0.175 UI residual deterministic jitter at 6.4
Gbps with 40” FR4 traces
Single 2.5V or 3.3V power supply
Supports AC or DC-Coupling with wide input
common-mode
Low power consumption: 100 mW Typ at 2.5V

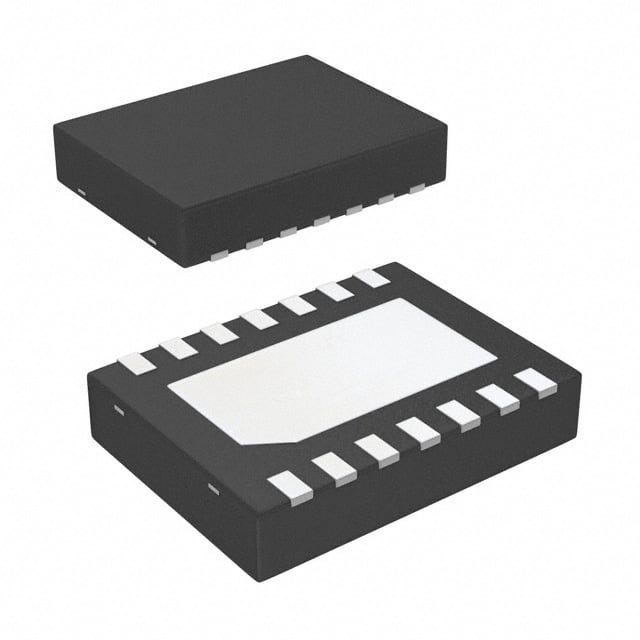

Small 3 mm x 4 mm 14-pin WSON package
> 8 kV HBM ESD Rating
-40 to 85В°C operating temperature range The equalizer supports both AC and DC-coupled data …
