Datasheet Texas Instruments LDC2112 — Даташит
| Производитель | Texas Instruments |
| Серия | LDC2112 |
2-канальный индуктивный сенсорный интерфейс HMI для потребительских приложений и приложений с низким энергопотреблением
Datasheets
LDC2112, LDC2114 Inductive Touch Solution for Low-Power HMI Button Applications datasheet
PDF, 1.8 Мб, Версия: B, Файл опубликован: 4 апр 2017
Выписка из документа
Цены
 Купить LDC2112 на РадиоЛоцман.Цены — от 32 до 216 ₽17 предложений от 11 поставщиков , 2Channel HMI Inductive Touch Buttons for Consumer and Low-Power Applications 16-DSBGA -40℃ to 85℃ | |||
| LDC2112YFDR Texas Instruments | 106 ₽ | ||
| LDC2112YFDR Texas Instruments | 143 ₽ | ||
| LDC2112PWR Texas Instruments | от 156 ₽ | ||
| LDC2112YFDT Texas Instruments | 216 ₽ | ||
Статус
| LDC2112PWR | LDC2112PWT | LDC2112YFDR | LDC2112YFDT | |
|---|---|---|---|---|
| Статус продукта | Анонсирован | Анонсирован | Анонсирован | Анонсирован |
| Доступность образцов у производителя | Нет | Нет | Нет | Нет |
Корпус / Упаковка / Маркировка
| LDC2112PWR | LDC2112PWT | LDC2112YFDR | LDC2112YFDT | |
|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 |
| Pin | 16 | 16 | 16 | 16 |

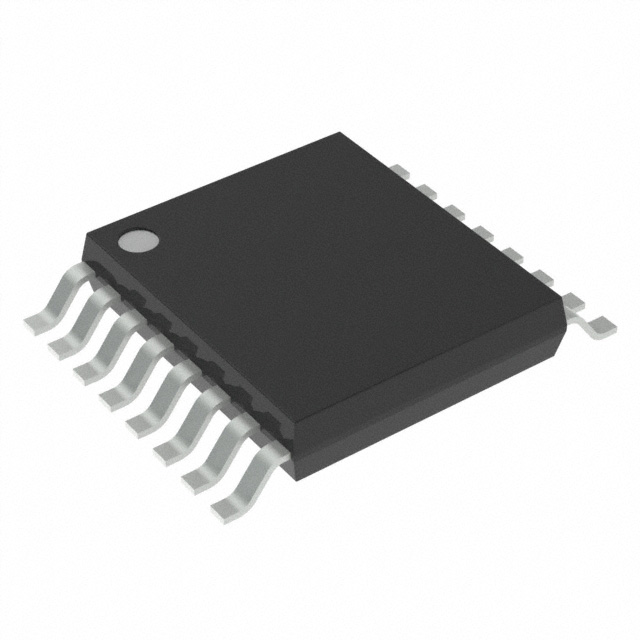

| Package Type | PW | PW | YFD | YFD |
| Industry STD Term | TSSOP | TSSOP | DSBGA | DSBGA |
| JEDEC Code | R-PDSO-G | R-PDSO-G | S-XBGA-N | S-XBGA-N |
| Package QTY | 2000 | 250 | 3000 | 250 |
| Carrier | LARGE T&R | SMALL T&R | LARGE T&R | SMALL T&R |
| Width (мм) | 4.4 | 4.4 | 2.2 | 2.2 |
| Length (мм) | 5 | 5 | 2.2 | 2.2 |
| Thickness (мм) | 1 | 1 | .4 | .4 |
| Pitch (мм) | .65 | .65 | .4 | .4 |
| Max Height (мм) | 1.2 | 1.2 | .4 | .4 |
| Mechanical Data | Скачать | Скачать | Скачать | Скачать |
| Маркировка | 17M | 17M |
Параметры
| Parameters / Models | LDC2112PWR | LDC2112PWT | LDC2112YFDR | LDC2112YFDT |
|---|---|---|---|---|
| # Input Channels | 2 | 2 | 2 | 2 |
| Active Supply Current(Typ), мА | 3.66 | 3.66 | 3.66 | 3.66 |
| Analog Supply (V), Min | 1.8 | 1.8 | 1.8 | 1.8 |
| Interface | GPIOs & I2C | GPIOs & I2C | GPIOs & I2C | GPIOs & I2C |
| L (Inductance) Resolution, Bits | 12 | 12 | 12 | 12 |
| Рабочий диапазон температур, C | от -40 до 85 | от -40 до 85 | от -40 до 85 | от -40 до 85 |
| Oscillation Amplitude(Max), В | 1.1 | 1.1 | 1.1 | 1.1 |
| Oscillation Amplitude(Min), В | 0.85 | 0.85 | 0.85 | 0.85 |
| Package Group | TSSOP | TSSOP | DSBGA | DSBGA |
| Package Size: mm2:W x L, PKG | 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) | 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) | See datasheet (DSBGA) | See datasheet (DSBGA) |
| Rating | Catalog | Catalog | Catalog | Catalog |
| Response Time(Max), 1/fsensor | N/A | N/A | N/A | N/A |
| Rp (Parallel Resonance Impedance) Resolution, Bits | N/A | N/A | N/A | N/A |
| Sensor Frequency, Hz | 1MHz to 30MHz | 1MHz to 30MHz | 1MHz to 30MHz | 1MHz to 30MHz |
| Sensor Rp Range(Max), Ohms | 10K | 10K | 10K | 10K |
| Sensor Rp Range(Min), Ohms | 35 | 35 | 35 | 35 |
| Stand-By Current(Typ), uA | 5 | 5 | 5 | 5 |
Экологический статус
| LDC2112PWR | LDC2112PWT | LDC2112YFDR | LDC2112YFDT | |
|---|---|---|---|---|
| RoHS | See ti.com | See ti.com | Совместим | Совместим |
Application Notes
- LDC2112/LDC2114 Inductive Touch System Design GuidePDF, 3.0 Мб, Файл опубликован: 2 фев 2017
The Inductive Touch System Design Guide presents an overview of the typical sensor mechanicalstructure and sensor electrical design for human machine interface (HMI) button applications. Themechanical design chapter discusses several factors that impact button sensitivity, including metalselection, sensor geometry, sensitivity dependence on target-to-coil distance, and mechanical isolation - Inductive Touch - Configuring LDC2114 Touch-Button SensitivityPDF, 771 Кб, Файл опубликован: 16 мар 2017
Erroneous or unintended button presses can result in a frustrating user experience in a human machine interface (HMI). Capacitive touch buttons trigger anytime a grounded object is brought close to the button; this can often cause false or erroneous button presses. One advantage mechanical buttons have over capacitive touch buttons is that a certain amount of force must be applied on the buttons f - EMI Considerations for Inductive SensingPDF, 151 Кб, Файл опубликован: 22 фев 2017
This application note explains various EMI reduction techniques to help improve EMI performance for TI'sInductance-to-Digital Converters (LDC). Each section details a general technique with references to otheruseful online documents. A list of relevant EMI reduction techniques is provided for specific devices withinthe LDC family of products.
Модельный ряд
Серия: LDC2112 (4)
Классификация производителя
- Semiconductors> Sensing Products> Inductive Sensing> Inductance to Digital Converters
