Datasheet Texas Instruments LM3533 — Даташит

Производитель	Texas Instruments
Серия	LM3533

Datasheets

Цены

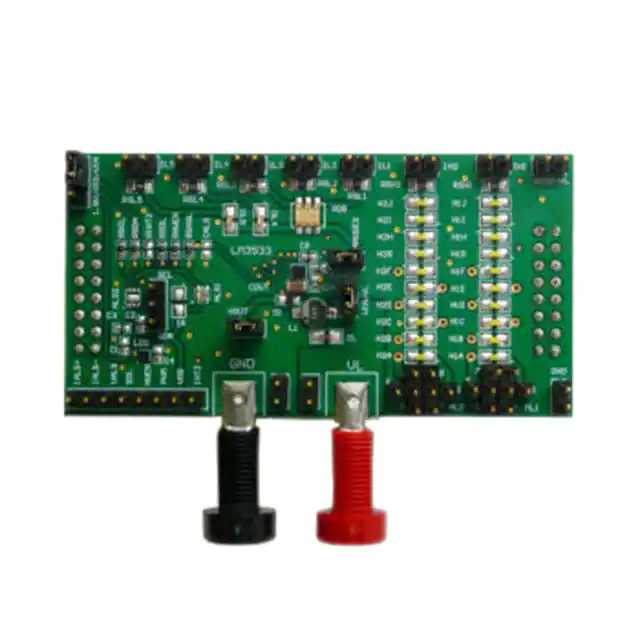

Купить LM3533 на РадиоЛоцман.Цены — от 68 до 18 413 ₽ 15 предложений от 13 поставщиков Набор разработчика, LM3533 LED Driver Evaluation Board
ChipWorker Весь мир	LM3533EVAL/NOPB Texas Instruments	7 732 ₽	Купить
T-electron Россия и страны СНГ	LM3533EVAL/NOPB Texas Instruments	7 924 ₽	Купить
Компонентс Ру Россия	LM3533EVAL/NOPB Texas Instruments	17 543 ₽	Купить
Augswan Весь мир	LM3533EVAL/NOPB Texas Instruments	по запросу	Купить

Статус

Корпус / Упаковка / Маркировка

Параметры

Parameters / Models	LM3533TME-40/NOPB	LM3533TME-40A/NOPB	LM3533TMX-40/NOPB	LM3533TMX-40A/NOPB
Количество каналов	7	7	7	7
Duty Cycle(Max), %	94	94	94	94
LED	25	25	25	25
LED Current Per Channel, мА	30	30	30	30
Рабочий диапазон температур, C	от -40 до 125	от -40 до 125	от -40 до 125	от -40 до 125
Package Group	DSBGA	DSBGA	DSBGA	DSBGA
Package Size: mm2:W x L, PKG	See datasheet (DSBGA)	See datasheet (DSBGA)	See datasheet (DSBGA)	See datasheet (DSBGA)
Peak Efficiency, %	88	88	88	88
Rating	Catalog	Catalog	Catalog	Catalog
Shutdown Current(Typ), uA	1	1	1	1
Special Features	OVP	OVP	OVP	OVP
Switching Frequency(Max), kHz	1000	1000	1000	1000
Topology	Boost	Boost	Boost	Boost
Тип	Inductive	Inductive	Inductive	Inductive
Vin(Max), В	5.5	5.5	5.5	5.5
Vin(Min), В	2.7	2.7	2.7	2.7
Vout(Max), В	40	40	40	40
Vout(Min), В	2.7	2.7	2.7	2.7

Экологический статус

Application Notes

• Скачать
  Inductor Selection in Boost Converters for LCD Backlight Applications
  PDF, 764 Кб, Файл опубликован: 24 окт 2016
  White LED drivers for LCD back-light applications are often designed for battery-powered devices. This makes circuit size and efficiency crucial. Because of this, selecting the optimal inductor is one of the mostimportant aspects of the design. This application note discusses the important parameters of the inductorand how to select the right inductor for the application.
• Скачать
  Schottky Diode Selection in Asynchronous Boost Converters
  PDF, 491 Кб, Файл опубликован: 6 сен 2016
  Asynchronous boost converters require a Schottky diode as the rectifying element due to the diode's lowforward voltage and fast turn-on time. Because of these characteristics asynchronous boost converterscan have as good as, or better efficiency, than synchronous boost converters. This is especially true whenthe boost conversion ratios (VOUT/VIN) are high, and the Schottky diode conduction t
• Скачать
  Analog PWM Dimming in White-LED Drivers
  PDF, 539 Кб, Файл опубликован: 21 дек 2016
  Pulse-width modulation (PWM) is a common type of dimming used to adjust the current in white-LEDdriver devices. PWM dimming takes a rectangle waveform with variable positive duty cycle (D) and adjuststhe LED current proportionally. For many smaller format white LED drivers (7-inch screen size or smaller),the PWM signal is converted to a DC control voltage and made to drive the LED current in

Модельный ряд

Классификация производителя

• Semiconductors> Power Management> LED Driver> Backlight
