Datasheet Texas Instruments LM4930 — Даташит
| Производитель | Texas Instruments |
| Серия | LM4930 |

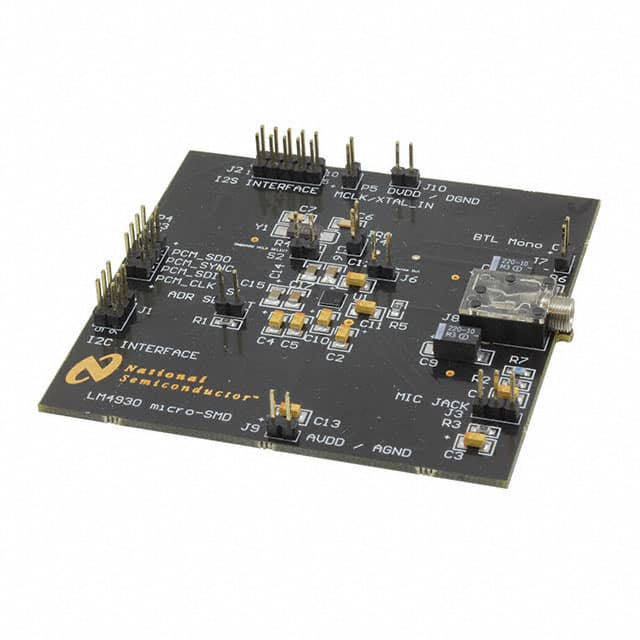

Audio Subsystem with Stereo Headphone & Mono Speaker Amplifiers
Datasheets
LM4930 Audio Subsystem w/Stereo Headphone - Mono Speaker Amps datasheet
PDF, 1.3 Мб, Версия: C, Файл опубликован: 1 май 2013
Выписка из документа
Цены
 Купить LM4930 на РадиоЛоцман.Цены — от 75 до 1 171 ₽21 предложений от 18 поставщиков Audio Amp Headphone/Microphone/Speaker 1CH Mono/2CH Stereo 1W Class-AB 44Pin LLP EP T/R | |||
| LM4930ITL/NOPB Texas Instruments | 75 ₽ | ||
| LM4930LQ Texas Instruments | 372 ₽ | ||
| LM4930LQ National Semiconductor | 1 171 ₽ | ||
| LM4930ITLX Texas Instruments | по запросу | ||
Статус
| LM4930ITLX/NOPB | LM4930LQ/NOPB | |
|---|---|---|
| Статус продукта | В производстве | В производстве |
| Доступность образцов у производителя | Нет | Нет |
Корпус / Упаковка / Маркировка
| LM4930ITLX/NOPB | LM4930LQ/NOPB | |
|---|---|---|
| N | 1 | 2 |
| Pin | 36 | 44 |
| Package Type | YZR | NJN |
| Industry STD Term | DSBGA | WQFN |
| JEDEC Code | R-XBGA-N | S-PQSO-N |
| Package QTY | 1000 | 250 |
| Carrier | LARGE T&R | SMALL T&R |
| Маркировка | B6 | L4930LQ |
| Width (мм) | 3.3 | 7 |
| Length (мм) | 3.5 | 7 |
| Thickness (мм) | .675 | .8 |
| Pitch (мм) | .5 | .5 |
| Max Height (мм) | .675 | .8 |
| Mechanical Data | Скачать | Скачать |
Параметры
| Parameters / Models | LM4930ITLX/NOPB | LM4930LQ/NOPB |
|---|---|---|
| ADC Channels | 1 | 1 |
| ADC SNR(Typ), дБ | 75 | 75 |
| Analog Inputs | 2 | 2 |
| Analog Outputs | 3 | 3 |
| DAC Channels | 3 | 3 |
| DAC SNR(Typ), дБ | 72 | 72 |
| Digital Audio Interface | I2S,PCM | I2S,PCM |
| Package Size: mm2:W x L, PKG | See datasheet (DSBGA),44WQFN: 49 mm2: 7 x 7(WQFN) | See datasheet (DSBGA),44WQFN: 49 mm2: 7 x 7(WQFN) |
| Sampling Rate(Max), kHz | 48 | 48 |
Экологический статус
| LM4930ITLX/NOPB | LM4930LQ/NOPB | |
|---|---|---|
| RoHS | Совместим | Совместим |
Application Notes
- Control Port And Reset Operation SoundPlus Audio Converters and CODECsPDF, 77 Кб, Файл опубликован: 27 сен 2000
This application bulletin provides operational details of the serial control port and reset functions for Burr-Brown digital audio data converters and CODECs. Specifically, this information applies to the PCM1716, PCM1717, PCM1719, PCM1720, PCM1723, PCM1727, PCM3000-series CODECs, and the PCM1800 A/D converter. - Configuring I2S to Generate BCLK from Codec Devices & WCLK from McBSP PortPDF, 105 Кб, Файл опубликован: 8 июл 2009
This application note describes a method for interfacing the multichannel buffered serial port (McBSP) to the IВІSв„ў interface of the TLV320AIC32/33/31, theTLV320AIC3101/3104/3105/3106/3204/3254 and TLV320DAC32 devices such that the bit clock (BCLK) is generated by the audio data converter device and the word clock (WCLK) is generated by the McBSP.This type of interface is useful in applications - Low Sampling Rate Operation SoundPlus Audio Data Converters and CODECsPDF, 291 Кб, Файл опубликован: 27 сен 2000
This application bulletin describes the operation and performance of Burr-Brown's PCM digital audio products when using low sampling frequencies. - Using the MSP430 Launchpad as a Standalone I2C Host for Audio Products (Rev. A)PDF, 5.4 Мб, Версия: A, Файл опубликован: 28 окт 2013
- Solving Enumeration Errors in USB Audio DAC and CODEC DesignsPDF, 157 Кб, Файл опубликован: 30 окт 2009
TI’s portfolio of audio digital-to-analog converters (DACs) and coder/decoders (codecs) with integrated USB interfaces offers an excellent building block for any streaming USB audio system. When designing with the PCM270x and PCM29xx devices, careful attention must be given to both the clocking and USB hardware configurations in order to ensure proper host to device communication.This applicatio - Audio Serial Interface Configurations for Audio CodecsPDF, 70 Кб, Файл опубликован: 22 сен 2010
An audio serial interface (ASI) provides a means to transfer non-buffered audio data between processors and/or audio converters. These data are typically encoded in PCM twos complement format, although other format variations may be possible to achieve companding for lower data rate transfers. Audio converters based on the delta-sigma (О”ОЈ) architecture require an internal master clock - Out-of-Band Noise Measurement Issues for Audio CodecsPDF, 145 Кб, Файл опубликован: 6 дек 2006
Модельный ряд
Серия: LM4930 (2)
Классификация производителя
- Semiconductors> Audio> Audio Converters> Audio CODEC
