Datasheet Texas Instruments LP3971 — Даташит
| Производитель | Texas Instruments |
| Серия | LP3971 |
Микросхема управления питанием (PMIC) для усовершенствованных прикладных процессоров
Datasheets
LP3971 Power Management Unit for Advanced Application Processors datasheet
PDF, 1.3 Мб, Версия: V, Файл опубликован: 3 май 2013
Выписка из документа
Статус
| LP3971SQ-2G16/NOPB | LP3971SQ-7848/NOPB | LP3971SQ-B410/NOPB | LP3971SQ-B510/NOPB | LP3971SQ-D510/NOPB | LP3971SQ-N510/NOPB | LP3971SQX-7848/NOPB | |
|---|---|---|---|---|---|---|---|
| Статус продукта | В производстве | В производстве | В производстве | В производстве | В производстве | В производстве | В производстве |
| Доступность образцов у производителя | Да | Нет | Нет | Да | Нет | Да | Нет |

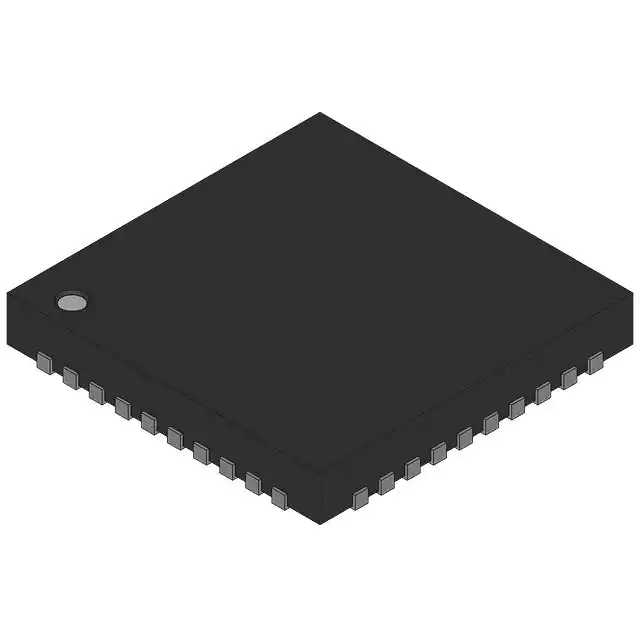

Корпус / Упаковка / Маркировка
| LP3971SQ-2G16/NOPB | LP3971SQ-7848/NOPB | LP3971SQ-B410/NOPB | LP3971SQ-B510/NOPB | LP3971SQ-D510/NOPB | LP3971SQ-N510/NOPB | LP3971SQX-7848/NOPB | |
|---|---|---|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Pin | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Package Type | RSB | RSB | RSB | RSB | RSB | RSB | RSB |
| Industry STD Term | WQFN | WQFN | WQFN | WQFN | WQFN | WQFN | WQFN |
| JEDEC Code | S-PQFP-N | S-PQFP-N | S-PQFP-N | S-PQFP-N | S-PQFP-N | S-PQFP-N | S-PQFP-N |
| Package QTY | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 4500 |
| Carrier | SMALL T&R | SMALL T&R | SMALL T&R | SMALL T&R | SMALL T&R | SMALL T&R | LARGE T&R |
| Маркировка | 71-2G16 | 71-7848 | 71-B410 | 71-B510 | 71-D510 | 71-N510 | 71-7848 |
| Width (мм) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Length (мм) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Thickness (мм) | .75 | .75 | .75 | .75 | .75 | .75 | .75 |
| Pitch (мм) | .4 | .4 | .4 | .4 | .4 | .4 | .4 |
| Max Height (мм) | .8 | .8 | .8 | .8 | .8 | .8 | .8 |
| Mechanical Data | Скачать | Скачать | Скачать | Скачать | Скачать | Скачать | Скачать |
Параметры
| Parameters / Models | LP3971SQ-2G16/NOPB | LP3971SQ-7848/NOPB | LP3971SQ-B410/NOPB | LP3971SQ-B510/NOPB | LP3971SQ-D510/NOPB | LP3971SQ-N510/NOPB | LP3971SQX-7848/NOPB |
|---|---|---|---|---|---|---|---|
| Approx. Price (US$) | 2.78 | 1ku | ||||||
| Iout(Max), A | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Iout(Max)(A) | 1.6 | ||||||
| LDO | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Рабочий диапазон температур, C | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 | |
| Operating Temperature Range(C) | -40 to 125 | ||||||
| Package Group | WQFN | WQFN | WQFN | WQFN | WQFN | WQFN | WQFN |
| Package Size: mm2:W x L, PKG | 40WQFN: 25 mm2: 5 x 5(WQFN) | 40WQFN: 25 mm2: 5 x 5(WQFN) | 40WQFN: 25 mm2: 5 x 5(WQFN) | 40WQFN: 25 mm2: 5 x 5(WQFN) | 40WQFN: 25 mm2: 5 x 5(WQFN) | 40WQFN: 25 mm2: 5 x 5(WQFN) | |
| Package Size: mm2:W x L (PKG) | 40WQFN: 25 mm2: 5 x 5(WQFN) | ||||||
| Processor Name | PXA | PXA | PXA | PXA | PXA | PXA | PXA |
| Processor Supplier | Marvell,Samsung,Freescale | Marvell,Samsung,Freescale | Marvell,Samsung,Freescale | Marvell Samsung Freescale | Marvell,Samsung,Freescale | Marvell,Samsung,Freescale | Marvell,Samsung,Freescale |
| Rating | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog | Catalog |
| Regulated Outputs | 9 | 9 | 9 | 9 | 9 | 9 | |
| Regulated Outputs(#) | 9 | ||||||
| Special Features | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown | Comm Control Dynamic Voltage Scaling Enable Over Current Protection Power Good Synchronous Rectification Thermal Shutdown | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown | Comm Control,Dynamic Voltage Scaling,Enable,Over Current Protection,Power Good,Synchronous Rectification,Thermal Shutdown |
| Step-Down DC/DC Converter | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Switching Frequency(Max), kHz | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| Switching Frequency(Max)(kHz) | 2000 | ||||||
| Vin(Max), В | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| Vin(Max)(V) | 5.5 | ||||||
| Vin(Min), В | 1.74 | 1.74 | 1.74 | 1.74 | 1.74 | 1.74 | |
| Vin(Min)(V) | 1.74 | ||||||
| Vout(Max), В | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | |
| Vout(Max)(V) | 3.3 | ||||||
| Vout(Min), В | 0.725 | 0.725 | 0.725 | 0.725 | 0.725 | 0.725 | |
| Vout(Min)(V) | 0.725 |
Экологический статус
| LP3971SQ-2G16/NOPB | LP3971SQ-7848/NOPB | LP3971SQ-B410/NOPB | LP3971SQ-B510/NOPB | LP3971SQ-D510/NOPB | LP3971SQ-N510/NOPB | LP3971SQX-7848/NOPB | |
|---|---|---|---|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим |
| Бессвинцовая технология (Pb Free) | Да |
Модельный ряд
Серия: LP3971 (7)
Классификация производителя
- Semiconductors> Power Management> Power Management Multi-Channel IC (PMIC) Solutions
