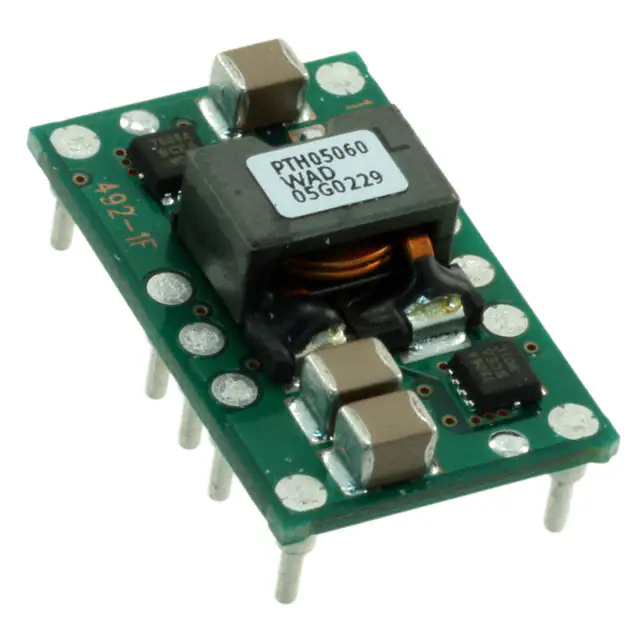

Datasheet Texas Instruments PTH05060WAD — Даташит

PTH05060W —5-V Input
10-A, 5-V Input Non-Isolated
Wide-Output Adjust Power Module SLTS216B – MAY 2003 – REVISED DECEMBER 2003 Features NOMINAL SIZE = Up to 10-A Output Current 5-V Input Voltage Wide-Output Voltage Adjust
(0.8 V to 3.6 V) Efficiencies up to 96 % 150 W/inВі Power Density On/Off Inhibit Output Voltage Sense Pre-Bias Startup Margin Up/Down Controls Under-Voltage Lockout 1 in x 0.62 in
(25,4 mm x 15,75 mm) Auto-Trackв„ў Sequencing Output Over-Current Protection
(Non-Latching, Auto-Reset) Operating Temp: –40 to +85 °C DSP Compatible Output Voltages Safety Agency Approvals:
UL 1950, CSA 22.2 950, EN60950
VDE (Pending) Point-of-Load Alliance (POLA)
Compatible Description Pin Configuration
Sequencing. Auto-Track simplifies the
task of supply voltage sequencing in a
power system by enabling modules to
track each other, or any external voltage,
during power up and power down.
Other operating features include an
on/off inhibit, margin up/down controls,
and the ability to start up into an existing
output voltage or prebias. To ensure tight
load regulation, an output voltage sense
is also provided. A non-latching overcurrent trip serves as load fault protection.
Target applications include complex
multi-voltage, multi-processor systems
that incorporate the industry’s high-speed …
