SCAN921260
www.ti.com SNLS139F – DECEMBER 2001 – REVISED APRIL 2013 SCAN921260 X6 1:10 Deserializer with IEEE 1149.1 (JTAG) and at-speed BIST
Check for Samples: SCAN921260 FEATURES DESCRIPTION The SCAN921260 integrates six deserializer devices
into a single chip. The SCAN921260 can
simultaneously deserialize up to six data streams that
have been serialized by the Texas Instruments
SCAN921023 Bus LVDS serializer. The device also
includes a seventh serial input channel that serves as
a redundant input. 1 2 IEEE 1149.1 (JTAG) Compliant and At-Speed
BIST Test Modes
Deserializes One to Six BusLVDS Input Serial
Data Streams With Embedded Clocks
Seven Selectable Serial Inputs to Support N+1
Redundancy of Deserialized Streams
Seventh Channel Has Single Pin Monitor
Output That Reflects Input From Seventh
Channel Input
Parallel Clock Rate Up To 66 MHz
On Chip Filtering for PLL
High Impedance Inputs Upon Power Off (Vcc =
0V)
Single Power Supply at +3.3V

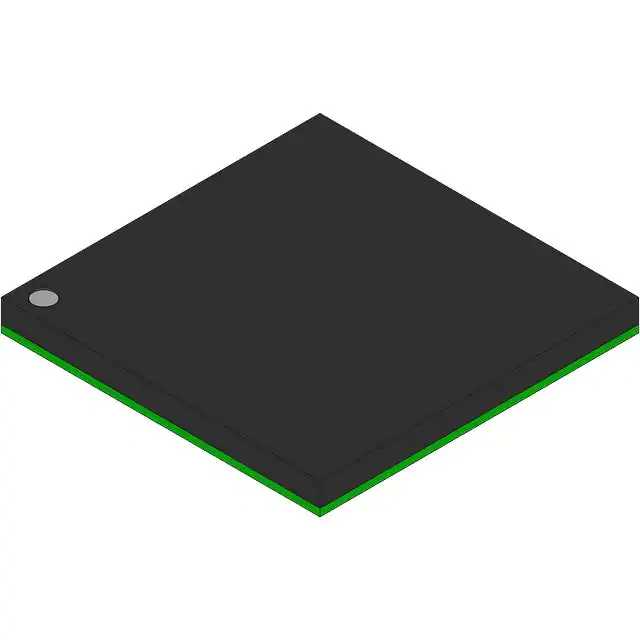

196-Pin NFBGA Package (Low-Profile Ball Grid …
