Datasheet Texas Instruments SN74ABT7820 — Даташит

Datasheets

Цены

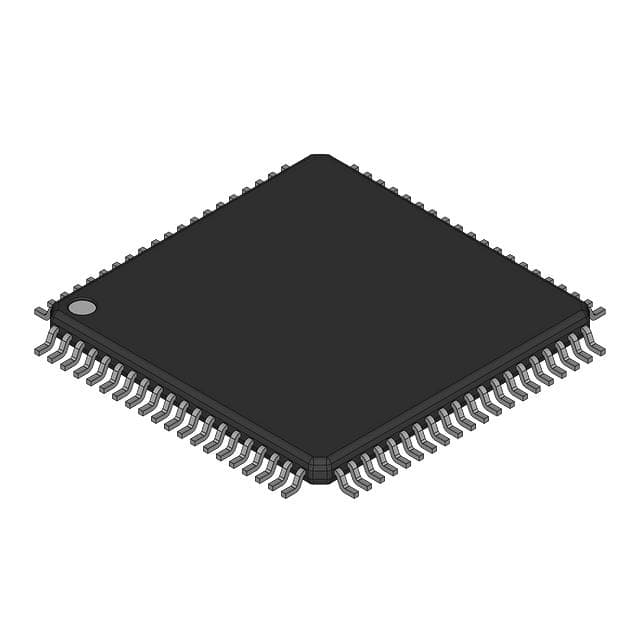

Купить SN74ABT7820 на РадиоЛоцман.Цены — от 65 до 1 737 ₽ 25 предложений от 23 поставщиков IC SYNC FIFO MEM 512X18X2 80-QFP / Asynchronous FIFO 18K (512 x 18 x 2) Bi-Directional 40MHz 15ns 80-QFP (14x20)
Lixinc Electronics Весь мир	SN74ABT7820-25PH Texas Instruments	585 ₽	Купить
Maybo Весь мир	SN74ABT7820-30PH Texas Instruments	1 209 ₽	Купить
Компонентс Ру Россия	SN74ABT7820-25PH Texas Instruments	от 1 335 ₽	Купить
TradeElectronics Россия	SN74ABT7820-30PH Texas Instruments	по запросу	Купить

Статус

Корпус / Упаковка / Маркировка

Экологический статус

Application Notes

• Скачать
  Quad Flatpack No-Lead Logic Packages (Rev. D)
  PDF, 1.0 Мб, Версия: D, Файл опубликован: 16 фев 2004
  Texas Instruments (TI) Quad Flatpack No-lead (QFN) 14/16/20-terminal Pb-free plastic packages meet dimensions specified in JEDEC standard MO-241 allow for board miniaturization and hold several advantages over traditional SOIC SSOP TSSOP and TVSOP packages. The packages are physically smaller have a smaller routing area improved thermal performance and improved electrical parasitics while
• Скачать
  Advanced BiCMOS Technology (ABT) Logic Characterization Information (Rev. B)
  PDF, 528 Кб, Версия: B, Файл опубликован: 1 июн 1997
  The purpose of this document is to assist the designers of high-performance digital logic systems in using the advanced BiCMOS technology (ABT) logic family. Detailed electrical characteristics of these bus-interface devices are provided and tables and graphs have been included to compare specific parameters of the ABT family with those of other logic families. In addition typical data is provide
• Скачать
  Advanced BiCMOS Technology (ABT) Logic Enables Optimal System Design (Rev. A)
  PDF, 115 Кб, Версия: A, Файл опубликован: 1 мар 1997
  Advanced bus-interface logic (ABIL) products processed in submicron advanced BiCMOS technologies (ABT) address the specific end-equipment demands of workstations personal and portable computers and telecommunications markets. This document discusses ABIL as system bus interfaces the merits of ABT its I/O structure packaging and ABT products for end-equipment specific solutions.
• Скачать
  Understanding Advanced Bus-Interface Products Design Guide
  PDF, 253 Кб, Файл опубликован: 1 май 1996
• Скачать
  Family of Curves Demonstrating Output Skews for Advanced BiCMOS Devices (Rev. A)
  PDF, 80 Кб, Версия: A, Файл опубликован: 1 дек 1996
  This document shows the output skew for the ABT16254 ABT16952 and ABT16500A devices of the TI advanced BiCMOS (ABT) family. The data samples show which output skew is being examined where the data originates and how it is analyzed. Some errors present in the data are discussed. Skew curves at varying temperatures are given for the ABT16240 ABT16245 ABT16952 ABT16500A and ABT16249 devic
• Скачать
  Power-Up 3-State (PU3S) Circuits in TI Standard Logic Devices
  PDF, 209 Кб, Файл опубликован: 10 май 2002
  Many telecom and networking applications require that cards be inserted and extracted from a live backplane without interrupting data or damaging components. To achieve this interface terminals of the card must be electrically isolated from the bus system during insertion or extraction from the backplane. To facilitate this Texas Instruments provides bus-interface and logic devices with features
• Скачать
  Power-Dissipation Calculations for TI FIFO Products (Rev. A)
  PDF, 106 Кб, Версия: A, Файл опубликован: 1 мар 1996
  Low power consumption is a major advantage of TI FIFO products. Power calculations are required to meet design requirements for chip temperature and system power. This document assists component and system designers in evaluating power consumption for the ACT and ABT FIFO products. Two examples of power calculations, one for the SN74ACT3632 bi-directional CMOS FIFO and one for the BiCMOS SN74ABT36

Модельный ряд

Классификация производителя

• Semiconductors> Logic> Flip-Flop/Latch/Register> FIFO Register
