Datasheet Texas Instruments TLC5540 — Даташит

Производитель	Texas Instruments
Серия	TLC5540

Datasheets

Цены

Купить TLC5540 на РадиоЛоцман.Цены — от 13 до 4 914 ₽ 37 предложений от 26 поставщиков Аналого-цифровые преобразователи (АЦП) 8-Bit 40 MSPS 1-Ch Internal S&H Lo Pwr
ChipWorker Весь мир	TLC5540CNS Texas Instruments	156 ₽	Купить
Триема Россия	TLC5540IPWR Texas Instruments	846 ₽	Купить
ТаймЧипс Россия	TLC5540 Texas Instruments	по запросу	Купить
ЗУМ-СМД Россия	TLC5540CNSR Texas Instruments	по запросу	Купить

Статус

Корпус / Упаковка / Маркировка

Параметры

Parameters / Models	TLC5540CNSLE	TLC5540CNSR	TLC5540CPW	TLC5540INSLE	TLC5540INSR	TLC5540INSRG4	TLC5540IPW	TLC5540IPWR
# Input Channels	1	1	1	1	1	1	1	1
Analog Input BW, МГц		75	75		75		75	75
Analog Input BW(MHz)	75			75		75
Approx. Price (US$)	2.64 | 1ku			2.64 | 1ku		2.64 | 1ku
Архитектура	Flash	Flash	Flash	Flash	Flash	Flash	Flash	Flash
DNL(Max)(+/-LSB)	1			1		1
DNL(Typ), +/-LSB		0.2	0.2		0.2		0.2	0.2
ENOB, Bits		6.8	6.8		6.8		6.8	6.8
ENOB(Bits)	6.8			6.8		6.8
INL(Max)(+/-LSB)	1			1		1
INL(Typ), +/-LSB		0.6	0.6		0.6		0.6	0.6
Input Buffer	No	No	No	No	No		No	No
Input Range, Vp-p	+2V	2	2	+2V	2	+2V	2	2
Interface	Parallel CMOS	Parallel CMOS	Parallel CMOS	Parallel CMOS	Parallel CMOS	Parallel CMOS	Parallel CMOS	Parallel CMOS
Рабочий диапазон температур, C		от -40 до 85,0 до 70	от -40 до 85,0 до 70		от -40 до 85,0 до 70		от -40 до 85,0 до 70	от -40 до 85,0 до 70
Operating Temperature Range(C)	-40 to 85 0 to 70			-40 to 85 0 to 70		-40 to 85 0 to 70

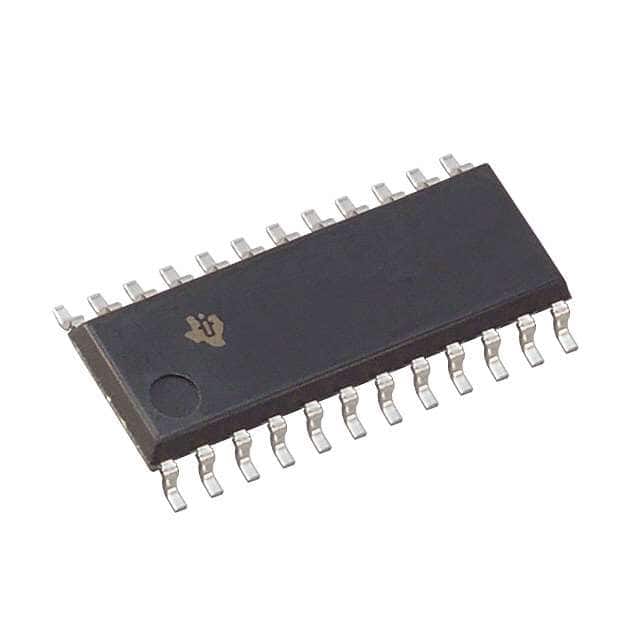

Package Group	SO	SO	TSSOP	SO	SO	SO	TSSOP	TSSOP
Package Size(mm2=WxL)						24TSSOP: 50 mm2: 6.4 x 7.8
Package Size: mm2:W x L, PKG		24SO: 117 mm2: 7.8 x 15(SO)	24TSSOP: 50 mm2: 6.4 x 7.8(TSSOP)		24SO: 117 mm2: 7.8 x 15(SO)		24TSSOP: 50 mm2: 6.4 x 7.8(TSSOP)	24TSSOP: 50 mm2: 6.4 x 7.8(TSSOP)
Package Size: mm2:W x L (PKG)	24TSSOP: 50 mm2: 6.4 x 7.8(TSSOP)			24TSSOP: 50 mm2: 6.4 x 7.8(TSSOP)
Power Consumption(Typ), mW		85	85		85		85	85
Power Consumption(Typ)(mW)	85			85		85
Rating	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog	Catalog
Reference Mode	Ext	Ext	Ext	Ext	Ext	Ext	Ext	Ext
Разрешение, Bits		8	8		8		8	8
Resolution(Bits)	8			8		8
SFDR, дБ		42	42		42		42	42
SFDR(dB)	42			42		42
SINAD, дБ		43.3	43.3		43.3		43.3	43.3
SNR, дБ		44	44		44		44	44
SNR(dB)	44			44		44
Sample Rate (max)(SPS)						40MSPS
Sample Rate(Max), MSPS		40	40		40		40	40
Sample Rate(Max)(MSPS)	40			40

Экологический статус

Application Notes

• Скачать
  Interfacing A/D Converters TLC5540/10 to the DSKplus DSP Starter Kit TMS320C54x
  PDF, 206 Кб, Файл опубликован: 1 апр 1997
  This Application Note describes the construction of a test circuit using the A/D converters TLC5540 and TLC5510, and alternative ways of interfacing these converters to the DSKplus DSP starter kit TMS
• Скачать
  CDCE62005 as Clock Solution for High-Speed ADCs
  PDF, 805 Кб, Файл опубликован: 4 сен 2008
  TI has introduced a family of devices well-suited to meet the demands for high-speed ADC devices such as the ADS5527, which is capable of sampling up to 210 MSPS. To realize the full potential of thes
• Скачать
  Smart Selection of ADC/DAC Enables Better Design of Software-Defined Radio
  PDF, 376 Кб, Файл опубликован: 28 апр 2009
  This application report explains different aspects of selecting analog-to-digital and digital-to-analog data converters for Software-Defined Radio (SDR) applications. It also explains how ADS61xx ADCs
• Скачать
  Driving High-Speed ADCs: Circuit Topologies and System-Level Parameters (Rev. A)
  PDF, 327 Кб, Версия: A, Файл опубликован: 10 сен 2010
  This application report discusses the performance-related aspects of passive and active interfaces at the analog input of high-speed pipeline analog-to-digital converters (ADCs). The report simplifies
• Скачать
  Phase Noise Performance and Jitter Cleaning Ability of CDCE72010
  PDF, 2.3 Мб, Файл опубликован: 2 июн 2008
  This application report presents phase noise data taken on the CDCE72010 jitter cleaner and synchronizer PLL device. The phase noise performance of the CDCE72010 depends on the phase noise of the refe
• Скачать
  CDCE72010 as a Clocking Solution for High-Speed Analog-to-Digital Converters
  PDF, 424 Кб, Файл опубликован: 8 июн 2008
  Texas Instruments has recently introduced a family of devices suitable to meet the demands of high-speed, high-IF sampling analog-to-digital converters (ADCs) such as the ADS5483, which is capable of
• Скачать
  Interfacing the TLC5540 Analog To Digital Converter to the TMS320C203-80 DSP
  PDF, 763 Кб, Файл опубликован: 1 мар 1998
  CMOS analog-to-digital converters (ADCs) are used as basic building blocks in many types of data acquisition systems.This application report describes the interface between the high-speed Texas Instruments (TI?TLC5540 8-bit parallel-output ADC and the TI TMS320C203-80 digital signal processor (DSP). The 8-bit resolution ADC can operate at a rate of up to 40MSa/s (megasamples per second). On-ch
• Скачать
  Interfacing A/D Converters TLC5540/10 to the DSKplus DSP Starter Kit TMS320C54x
  PDF, 206 Кб, Файл опубликован: 1 апр 1997
  This Application Note describes the construction of a test circuit using the A/D converters TLC5540 and TLC5510, and alternative ways of interfacing these converters to the DSKplus DSP starter kit TMS320C54x. Details are given of the test circuit of the TLC5540/10 and of the interface, and the programming of the digital signal processor TMS320C54x is also described.
• Скачать
  CDCE62005 as Clock Solution for High-Speed ADCs
  PDF, 805 Кб, Файл опубликован: 4 сен 2008
  TI has introduced a family of devices well-suited to meet the demands for high-speed ADC devices such as the ADS5527 which is capable of sampling up to 210 MSPS. To realize the full potential of these high-performance products it is imperative to provide a low phase noise clock source. The CDCE62005 clock synthesizer chip offers a real-world clocking solution to meet these stringent requirements
• Скачать
  Smart Selection of ADC/DAC Enables Better Design of Software-Defined Radio
  PDF, 376 Кб, Файл опубликован: 28 апр 2009
  This application report explains different aspects of selecting analog-to-digital and digital-to-analog data converters for Software-Defined Radio (SDR) applications. It also explains how ADS61xx ADCs and the DAC5688 from Texas Instruments fit properly for SDR designs.
• Скачать
  Driving High-Speed ADCs: Circuit Topologies and System-Level Parameters (Rev. A)
  PDF, 327 Кб, Версия: A, Файл опубликован: 10 сен 2010
  This application report discusses the performance-related aspects of passive and active interfaces at the analog input of high-speed pipeline analog-to-digital converters (ADCs). The report simplifies the many possibilities into two main categories: passive and active interface circuits. The first section of the report gives an overview of equivalent models of buffered and unbuffered ADC input cir
• Скачать
  Phase Noise Performance and Jitter Cleaning Ability of CDCE72010
  PDF, 2.3 Мб, Файл опубликован: 2 июн 2008
  This application report presents phase noise data taken on the CDCE72010 jitter cleaner and synchronizer PLL device. The phase noise performance of the CDCE72010 depends on the phase noise of the reference clock VCXO clock and the CDCE72010 itself. This application report shows the phase noise performance at several of the most popular CDMA frequencies. This data helps the user to choose the rig
• Скачать
  CDCE72010 as a Clocking Solution for High-Speed Analog-to-Digital Converters
  PDF, 424 Кб, Файл опубликован: 8 июн 2008
  Texas Instruments has recently introduced a family of devices suitable to meet the demands of high-speed high-IF sampling analog-to-digital converters (ADCs) such as the ADS5483 which is capable of sampling up to 135 MSPS. To realize the full potential of these high-performance devices the system must provide an extremely low phase noise clock source. The CDCE72010 clock synthesizer chip offers

Модельный ряд

Классификация производителя

• Semiconductors> Data Converters> Analog-to-Digital Converters (ADCs)> High Speed ADCs (>10MSPS)
