Datasheet Texas Instruments TMS320DM369 — Даташит
| Производитель | Texas Instruments |
| Серия | TMS320DM369 |
Цифровой медиапроцессор DaVinci
Datasheets
TMS320DM369 Digital Media System-on-Chip (DMSoC) datasheet
PDF, 1.5 Мб, Версия: A, Файл опубликован: 12 июл 2016
Выписка из документа
Цены
 Купить TMS320DM369 на РадиоЛоцман.Цены — от 73 до 10 536 ₽25 предложений от 17 поставщиков Цифровой сигнальный процессор DSP, DSP 16Bit/32Bit 432MHz 338Pin NFBGA | |||
| TMS320DM369ZCE Texas Instruments | 2 102 ₽ | ||
| TMS320DM369ZCED Texas Instruments | от 2 311 ₽ | ||
| TMS320DM369ZCEF Texas Instruments | 2 489 ₽ | ||
| TMS320DM369ZCEF Texas Instruments | 10 536 ₽ | ||
Статус
| TMS320DM369ZCE | TMS320DM369ZCED | TMS320DM369ZCEDF | TMS320DM369ZCEF | |
|---|---|---|---|---|
| Статус продукта | В производстве | В производстве | В производстве | В производстве |
| Доступность образцов у производителя | Да | Да | Да | Да |

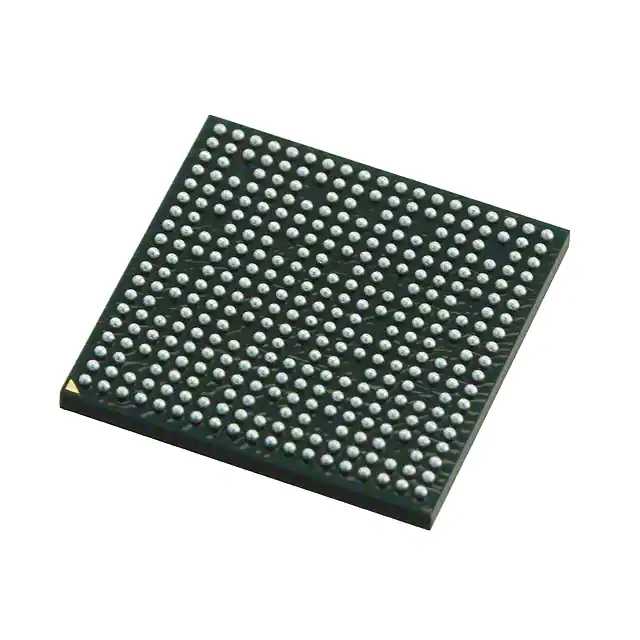

Корпус / Упаковка / Маркировка
| TMS320DM369ZCE | TMS320DM369ZCED | TMS320DM369ZCEDF | TMS320DM369ZCEF | |
|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 |
| Pin | 338 | 338 | 338 | 338 |
| Package Type | ZCE | ZCE | ZCE | ZCE |
| Industry STD Term | NFBGA | NFBGA | NFBGA | NFBGA |
| JEDEC Code | S-PBGA-N | S-PBGA-N | S-PBGA-N | S-PBGA-N |
| Package QTY | 160 | 160 | 160 | 160 |
| Carrier | JEDEC TRAY (5+1) | JEDEC TRAY (5+1) | JEDEC TRAY (5+1) | |
| Маркировка | 570 | DM369ZCED | DM369ZCEDF | 570 |
| Width (мм) | 13 | 13 | 13 | 13 |
| Length (мм) | 13 | 13 | 13 | 13 |
| Thickness (мм) | .89 | .89 | .89 | .89 |
| Pitch (мм) | .65 | .65 | .65 | .65 |
| Max Height (мм) | 1.3 | 1.3 | 1.3 | 1.3 |
| Mechanical Data | Скачать | Скачать | Скачать | Скачать |
Параметры
| Parameters / Models | TMS320DM369ZCE | TMS320DM369ZCED | TMS320DM369ZCEDF | TMS320DM369ZCEF |
|---|---|---|---|---|
| ARM CPU | 1 ARM9 | 1 ARM9 | 1 ARM9 | 1 ARM9 |
| ARM MHz, Max. | 432 | 432 | 432 | 432 |
| Applications | Consumer Electronics,Industrial Cameras,Security, Video and Imaging, Portable Cameras,Video Surveillance IP Cameras | Consumer Electronics,Industrial Cameras,Security, Video and Imaging, Portable Cameras,Video Surveillance IP Cameras | Consumer Electronics,Industrial Cameras,Security, Video and Imaging, Portable Cameras,Video Surveillance IP Cameras | Consumer Electronics,Industrial Cameras,Security, Video and Imaging, Portable Cameras,Video Surveillance IP Cameras |
| DRAM | LPDDR,DDR2 | LPDDR,DDR2 | LPDDR,DDR2 | LPDDR,DDR2 |
| EMAC | 10/100 | 10/100 | 10/100 | 10/100 |
| I2C | 1 | 1 | 1 | 1 |
| Operating Systems | Linux | Linux | Linux | Linux |
| Рабочий диапазон температур, C | от -40 до 85,0 до 85 | от -40 до 85,0 до 85 | от -40 до 85,0 до 85 | от -40 до 85,0 до 85 |
| Pin/Package | 338NFBGA | 338NFBGA | 338NFBGA | 338NFBGA |
| Rating | Catalog | Catalog | Catalog | Catalog |
| SPI | 5 | 5 | 5 | 5 |
| UART, SCI | 2 | 2 | 2 | 2 |
| USB | USB2.0 HS OTG | USB2.0 HS OTG | USB2.0 HS OTG | USB2.0 HS OTG |
| Video Acceleration | 1 MJCP,1 HDVICP | 1 MJCP,1 HDVICP | 1 MJCP,1 HDVICP | 1 MJCP,1 HDVICP |
| Video Port, Configurable | 1 Dedicated Input,1 Dedicated Output | 1 Dedicated Input,1 Dedicated Output | 1 Dedicated Input,1 Dedicated Output | 1 Dedicated Input,1 Dedicated Output |
| Video Resolution/Frame Rate | 1080P,30 FPS or less | 1080P,30 FPS or less | 1080P,30 FPS or less | 1080P,30 FPS or less |
Экологический статус
| TMS320DM369ZCE | TMS320DM369ZCED | TMS320DM369ZCEDF | TMS320DM369ZCEF | |
|---|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим | Совместим |
Application Notes
- TMS320DM36x SoC Architecture and ThroughputPDF, 5.8 Мб, Файл опубликован: 29 июл 2009
This application report provides information on the DM36x throughput performance and describes the DM36x System-on-Chip (SoC) architecture, data path infrastructure, and constraints that affect the throughput and different optimization techniques for optimum system performance. This document also provides information on the maximum possible throughput performance of different peripherals on the So - Converting single-ended video to differential video in single-supply systemsPDF, 212 Кб, Файл опубликован: 16 сен 2011
- Understanding TI's PCB Routing Rule-Based DDR Timing Specification (Rev. A)PDF, 93 Кб, Версия: A, Файл опубликован: 17 июл 2008
This application report motivates the way the DDR high-speed timing requirements are now going to be communicated to system designers. The traditional method of using data sheet parameters and simulation models is tedious. The system designer uses this information to evaluate whether timing specifications are met and can be expected to operate reliably.Ultimately, the real question the hardwa - High-Speed Interface Layout Guidelines (Rev. G)PDF, 814 Кб, Версия: G, Файл опубликован: 27 июл 2017
As modern bus interface frequencies scale higher, care must be taken in the printed circuit board (PCB) layout phase of a design to ensure a robust solution.
Модельный ряд
Серия: TMS320DM369 (4)
Классификация производителя
- Semiconductors> Processors> Digital Signal Processors> Media Processors > DaVinci Video Processors
