Datasheet Texas Instruments TMS320VC5470 — Даташит
| Производитель | Texas Instruments |
| Серия | TMS320VC5470 |
Процессор цифровых сигналов системного уровня
Datasheets
TMS320VC5470 Fixed-Point Digital Signal Processor datasheet
PDF, 675 Кб, Версия: B, Файл опубликован: 9 дек 2002
Выписка из документа
Цены
 Купить TMS320VC5470 на РадиоЛоцман.Цены — от 61 до 5 501 ₽26 предложений от 18 поставщиков Цифровой сигнальный процессор DSP, DSP Fixed-Point 16Bit 100MHz 257Pin BGA MICROSTAR | |||
| TMS320VC5470GHKA Texas Instruments | 457 ₽ | ||
| TMS320VC5470GHK Texas Instruments | 1 464 ₽ | ||
| TMS320VC5470 Texas Instruments | по запросу | ||
| TMS320VC5470ZHKA Texas Instruments | по запросу | ||
Статус
| TMS320VC5470GHK | TMS320VC5470GHKA | TMS320VC5470ZHKA | |
|---|---|---|---|
| Статус продукта | Снят с производства | Снят с производства | Снят с производства |
| Доступность образцов у производителя | Нет | Нет | Нет |

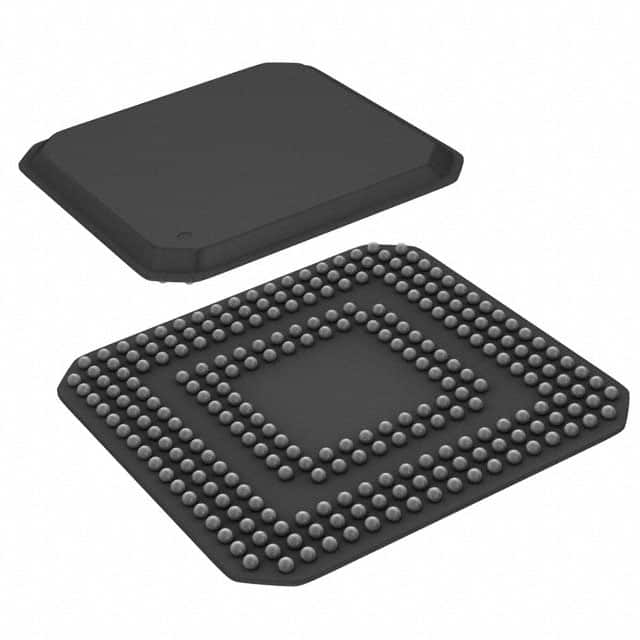

Корпус / Упаковка / Маркировка
| TMS320VC5470GHK | TMS320VC5470GHKA | TMS320VC5470ZHKA | |
|---|---|---|---|
| N | 1 | 2 | 3 |
| Pin | 257 | 257 | 257 |
| Package Type | GHK | GHK | ZHK |
| Industry STD Term | BGA MICROSTAR | BGA MICROSTAR | BGA MICROSTAR |
| JEDEC Code | S-PBGA-N | S-PBGA-N | S-PBGA-N |
| Маркировка | 320VC5470GHK | 320VC5470GHKA | 320VC5470ZHKA |
| Width (мм) | 16 | 16 | 16 |
| Length (мм) | 16 | 16 | 16 |
| Thickness (мм) | .9 | .9 | .9 |
| Pitch (мм) | .8 | .8 | .8 |
| Max Height (мм) | 1.4 | 1.4 | 1.4 |
| Mechanical Data | Скачать | Скачать | Скачать |
| Carrier | EIAJ TRAY (5+1) |
Экологический статус
| TMS320VC5470GHK | TMS320VC5470GHKA | TMS320VC5470ZHKA | |
|---|---|---|---|
| RoHS | Не совместим | Не совместим | Не совместим |
| Бессвинцовая технология (Pb Free) | Нет |
Application Notes
- TMS320VC5470/5471 BootloaderPDF, 147 Кб, Файл опубликован: 10 июн 2002
The TMS320VC547x devices, TMS320VC5470 and TMS320VC5471, have a master TMS470R1xв„ў (ARM7TDMIE) microcontroller (MCU) central processing unit (CPU) with a slave TMS320C54xв„ў digital signal processor (DSP) CPU. Bootload is accomplished through the MCU while the DSP is held in reset. Since no ROM resides on these devices, the bootloader code is transferred on-chip through one of several int - TMS320VC5471/TMS320VC5470 Inter-Processor CommunicationPDF, 138 Кб, Файл опубликован: 10 июн 2002
The TMS320VC547x (VC547x) generation of devices, including the TMS320VC5470 and the TMS320VC5471, has a master TMS470R1x (ARM7TDMIE) microcontroller unit (MCU) CPU with a slave TMS320C54xв„ў (C54xв„ў) digital signal processor (DSP) CPU. Inter-processor communication (IPC) between the two processors can be performed using various methods. This document describes an interrupt-driven method o - Using Boundary Scan on the TMS320VC5471/VC5470 DSPsPDF, 61 Кб, Файл опубликован: 15 апр 2002
The Texas Instruments (TI) TMS320VC5471 and TMS320VC5470 DSPs (hereafter referred to as VC547x) are dual-core processor devices implementing standard IEEE 1149.1 boundary scan capability. This application report contains a description of the VC547x boundary scan implementation and information about how to use it with other boundary scan tools and devices.The material covered in this applicatio
Модельный ряд
Серия: TMS320VC5470 (3)
Классификация производителя
- Semiconductors> Processors> Digital Signal Processors> C5000 DSP> Other C5000 DSP
