LTC2000A
16-/14-/11-Bit 2.7Gsps
DACs
FEATURES n DESCRIPTION 80dBc SFDR at 50MHz fOUT
>68dBc SFDR from DC to 1080MHz fOUT
40mA Nominal Full-Scale, В±1V Output Compliant
10mA to 60mA Adjustable Full-Scale Current Range
Single or Dual Port DDR LVDS and DHSTL Interface
Low Latency (7.5 Cycles for Single Port,
11 Cycles for Dual Port)
>78dBc 2-Tone IMD from DC to 1000MHz fOUT
–156dBc/Hz Additive Phase Noise at 1MHz Offset for
65MHz fOUT

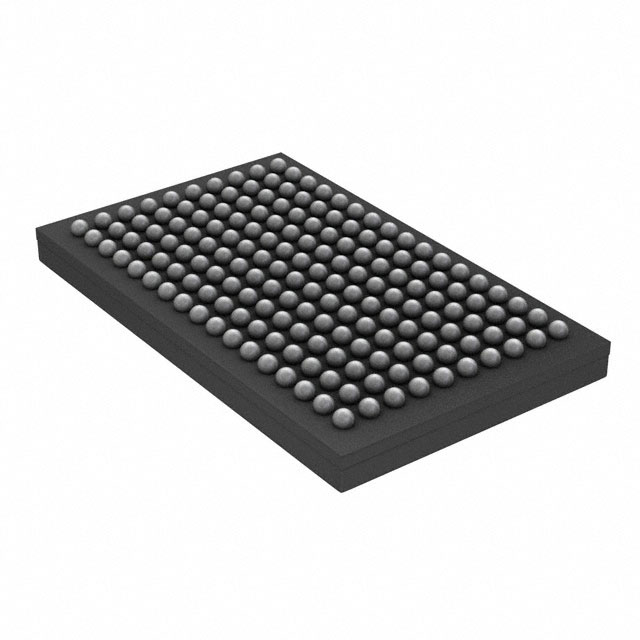

170-Lead (9mm Г— 15mm) BGA Package The LTCВ®2000A is a family of 16-/14-/11-bit 2.7Gsps
current steering DACs with exceptional spectral purity.
The single (1.35Gsps mode) or dual (2.7Gsps mode) port
source synchronous LVDS interface supports data rates of
up to 1.35Gbps using a 675MHz DDR data clock, which
can be either in quadrature or in phase with the data. An
internal synchronizer automatically aligns the data with
the DAC sample clock.
Additional features such as pattern generation, LVDS
loopout and junction temperature sensing simplify system …
