Datasheet Linear Technology LTC3611 — Даташит

Datasheets

Цены

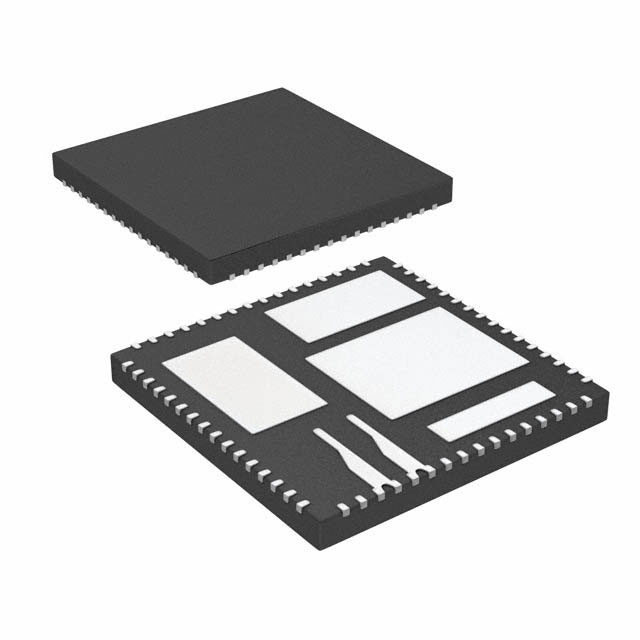

Купить LTC3611 на РадиоЛоцман.Цены — от 51 до 3 334 ₽ 43 предложений от 23 поставщиков IC REG BUCK ADJ 10A 64QFN / Conv DC-DC 4.5V to 32V Synchronous Step Down Single-Out 0.6V to 32V 10A 64-Pin...
AiPCBA Весь мир	LTC3611EWP#TRPBF Linear Technology	979 ₽	Купить
IC Home Весь мир	LTC3611EWP#TRPBF Analog Devices	1 260 ₽	Купить
Augswan Весь мир	LTC3611IWP#TRPBF Analog Devices	по запросу	Купить
ЭлектроПласт- Екатеринбург Россия	LTC3611EWP	по запросу	Купить

Корпус / Упаковка / Маркировка

Параметры

Экологический статус

Design Notes

• Скачать
  Monolithic Synchronous Step-Down Regulator Delivers up to 12A from a Wide Input Voltage Range &mdash DN457
  PDF, 75 Кб, Файл опубликован: 8 янв 2009
  Выписка из документа

  advertisement Monolithic Synchronous Step-Down Regulator Delivers up to 12A
  from a Wide Input Voltage Range – Design Note 457
  Charlie Zhao and Henry Zhang
  Typical Application Example
  Figure 1 shows a typical application schematic of the
  LTC3608. This 7mm Г— 8mm regulator supplies 2.5V at 8A
  maximum load current from a 4.5V to 20V input source.
  This application switches at a nominal 650kHz, which
  allows the use of low profile inductor and capacitors while
  maintaining high efficiency. The switching frequency can
  be easily adjusted by a resistor (RON in Figure 1, connected
  to the ION pin). Figure 2 shows the operating efficiency. Introduction
  The LTC В®3610 is a high power monolithic synchronous step-down DC/DC regulator that can deliver up
  to 12A of continuous output current from a 4V to 24V
  (28V maximum) input supply. It is a member of a high
  current monolithic regulator family (see Table 1) that
  features integrated low RDS(ON) N-channel top and bottom MOSFETs. This results in a high efficiency and high
  power density solution with few external components.
  This regulator family uses a constant on-time valley
  current mode architecture that is capable of operating
  at very low duty cycles at high frequency and with very
  fast transient response. All are available in low profile
  (0.9mm max) QFN packages. The FCB pin is connected to ground to force continuous …

Статьи

• Скачать
  32VIN Synchronous Buck Regulators with Integrated FETs Deliver up to 12A from Sub-1mm Height Packages &mdash LT Journal
  PDF, 246 Кб, Файл опубликован: 23 сен 2008
  Выписка из документа

  L DESIGN IDEAS 32VIN Synchronous Buck Regulators
  with Integrated FETs Deliver up to 12A
  from Sub-1mm Height Packages
  by Stephanie Dai and Theo Phillips
  Introduction
  Monolithic buck regulators are easy
  to hook up and they make it possible
  to squeeze an entire DC/DC converter
  into very tight spaces. Although monolithics are an easy fit, they aren’t the
  perfect fit for every application. For
  instance, they typically lack the capability to efficiently convert high input
  voltages (>12V) to low voltages at high
  output currents (>4A), thus leaving the
  job to a traditional controller IC and
  external MOSFETs.
  A new family of devices, though,
  offers the advantages of monolithics
  with the low duty cycle and high efficiency of discrete components. The
  LTC3608, LTC3609, LTC3610 and
  LTC3611 are synchronous buck converters that bring high power density
  and simplified design to point-of-load
  applications. With a maximum input of A new family of devices
  offers the advantages of …

Модельный ряд

Классификация производителя

• Power Management > Switching Regulator > Step-Down (Buck) Regulators > Internal Power Switch Buck
