Datasheet Linear Technology LTC3675EUFF#PBF — Даташит

Производитель	Linear Technology
Серия	LTC3675
Модель	LTC3675EUFF#PBF

7-канальный конфигурируемый PMIC высокой мощности

Datasheets

Скачать

PDF, 594 Кб, Версия: C, Файл закачен: 22 сен 2017

Выписка из документа

Цены

Купить LTC3675EUFF#PBF на РадиоЛоцман.Цены — от 221 до 2 901 ₽ 33 предложений от 18 поставщиков , Single Cell Li-Ion/Polymer Applications 2.7V to 5.5V 44-Pin QFN EP Tube
EIS Components Весь мир	LTC3675EUFF#PBF Analog Devices	400 ₽
IC Home Весь мир	LTC3675EUFF-1#TRPBF Analog Devices	653 ₽
Maybo Весь мир	LTC3675EUFF#PBF Analog Devices	1 257 ₽
ТаймЧипс Россия	LTC3675EUFF#TRPBF Linear Technology	по запросу

Корпус / Упаковка / Маркировка

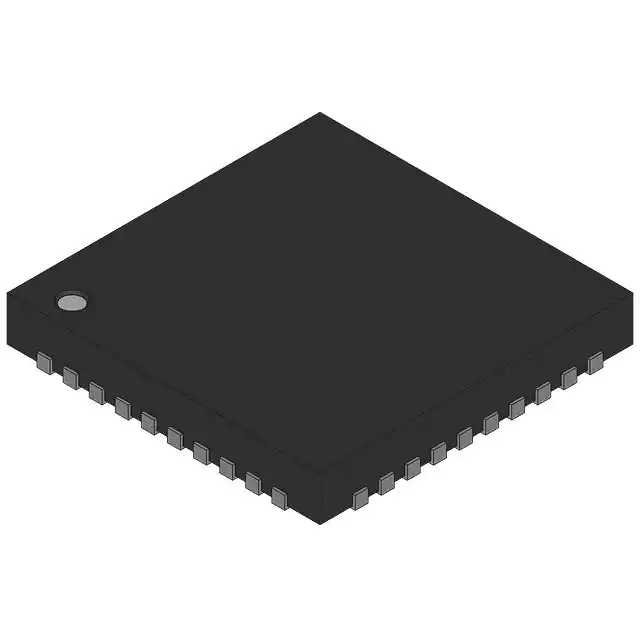

Корпус	4x7 QFN-44
Код корпуса	UFF
Индекс корпуса	05-08-1762

Параметры

Boost Switch Current	1 A
Buck Output Current	0.5, 0.5, 1, 1 A
Buck-Boost Output Current	1 A
Demo Boards	DC1607A
Экспортный контроль	нет
Основные особенности	Burst Mode, I2C Control, Adjustable Slew Rate
LDO Output Current	0.025 A
Количество выходов	7
Рабочий диапазон температур	от 0 до 85 °C
Vin Max	5.5 В
Vin Min	2.7 В

Экологический статус

RoHS

Совместим

Другие варианты исполнения

LTC3675-1

Статьи

Скачать
4mm × 7mm IC Produces Seven Regulated Outputs and a Dual-String LED Driver &mdash LT Journal
PDF, 599 Кб, Файл опубликован: 27 окт 2010
Выписка из документа
4mm Г— 7mm IC Produces Seven Regulated Outputs
and a Dual-String LED Driver
Aspiyan Gazder The LTC3675 is a space-saving single-chip power solution for multirail applications
that run from a single Li-ion cell. Its 4mm Г— 7mm QFN contains two 500mA buck
regulators, two 1A buck regulators, a 1A boost regulator, a 1A buck-boost regulator,
a boost LED driver capable of driving dual LED strings up to 25mA, and an alwayson 25mA LDO for powering a housekeeping microprocessor. All regulators can be
controlled via I2C. Figure 1 shows an eight-rail solution run from a single Li-ion battery.
SWITCHING REGULATOR FEATURES All of the voltage regulators in the LTC3675
are internally compensated monolithic
synchronous regulators. The buck regulators and the buck-boost regulator can be
enabled via enable pins or I2C, whereas
the boost regulator is enabled via I2C only.
The feedback regulation voltage of
the regulators can be programmed via
I2C from 425mV to 800mV in 25mV steps.
Each regulator offers two modes of light
load operation. The buck regulators offer
Burst Mode operation for the greatest efficiency and pulse skipping-mode for more
predictable EMI. The boost and buck-boost
regulators offer Burst Mode operation
and PWM mode. Each regulatorвЂ™s operating mode can be programmed via I2C.
The regulators also feature
I2C-programmable slew rate control …

Модельный ряд

Серия: LTC3675 (2)

LTC3675EUFF#PBF LTC3675EUFF#TRPBF

Классификация производителя

Power Management > Switching Regulator > Digitally Programmable Regulators
Power Management > LED Driver ICs > Step-Up (Boost) LED Drivers
Power Management > PMIC & Multifunction > Multitopology DC/DC

Варианты написания:

LTC3675EUFFPBF, LTC3675EUFF PBF
