Datasheet Linear Technology LTC1644CGN#PBF — Даташит

Datasheets

Цены

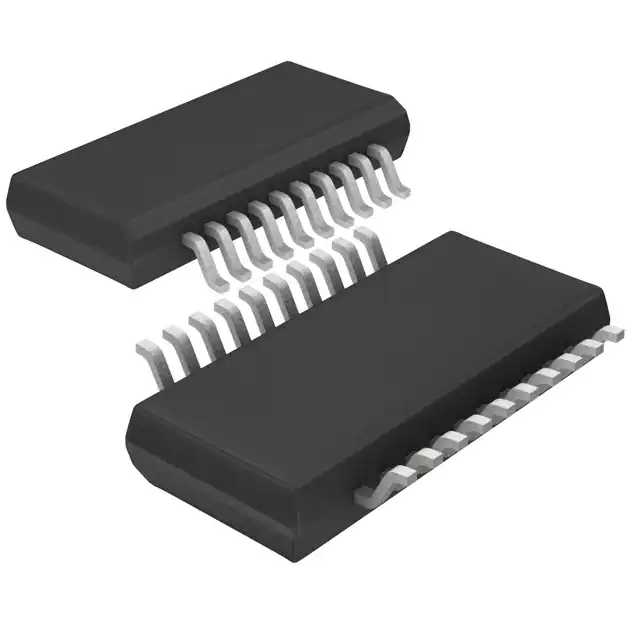

Купить LTC1644CGN#PBF на РадиоЛоцман.Цены — от 160 до 1 079 ₽ 32 предложений от 19 поставщиков IC CONTROLLER HOT SWAP 20-SSOP / Hot Swap Controller 1-CH 13.2V/-10.8V N-Channel Negative Voltage/Positive Voltage 20-Pin SSOP N Tube
EIS Components Весь мир	LTC1644CGN#PBF Analog Devices	258 ₽	Купить
727GS Весь мир	LTC1644CGN#TRPBF Analog Devices	от 336 ₽	Купить
LifeElectronics Россия	LTC1644CGN#TRPBF Linear Technology	по запросу	Купить
Augswan Весь мир	LTC1644CGN#TRPBF Analog Devices	по запросу	Купить

Корпус / Упаковка / Маркировка

Параметры

Экологический статус

Design Notes

• Скачать
  Design Guidelines for CompactPCI Hot Swap Control Applications Using the LTC1644 &mdash Design Solutions 12
  PDF, 132 Кб, Файл опубликован: 1 май 2003
  Выписка из документа

  Design Solutions 12
  May 2003
  Design Guidelines for CompactPCI Hot Swap Control
  Applications Using the LTC1644
  by Andy Gardner
  Introduction Long and Medium Power Pin Connections The LTCВ®1644 is designed for CompactPCITM Hot SwapTM
  control applications requiring –12V, 5V, 3.3V and 12V
  supplies (see Figure 1). The LTC1644 also precharges the
  bus I/O pins during hot insertion and extraction, feeds
  back the status of the back-end supply voltages with its
  PWRGD output, and intercepts the PCI_RST# signal onchip using the RESETIN and RESETOUT pins. There are
  several important considerations in circuit design and
  component selection for CompactPCI Hot Swap control
  applications using the LTC1644. CompactPCI connectors have both long and medium
  length GND, 5V, 3.3V and VI/O power pins as well as
  medium length –12V and 12V power pins. In general,
  medium length power pins are used for “Back End Power
  Planes” where the connector pins are isolated from the
  load by the LTC1644. The long connector pins may be
  used to provide “Early Power” to loads that require power
  immediately upon hot insertion without the benefit of BACKPLANE
  CONNECTOR C8
  0.01ВµF …

Статьи

• Скачать
  CompactPCI Hot Swap Controllers with Bus Precharge, On-Chip Intercept of PCI Reset Signal and Much More &mdash LT Journal
  PDF, 175 Кб, Файл опубликован: 1 дек 2001
  Выписка из документа

  DESIGN FEATURES CompactPCI Hot Swap Controllers
  with Bus Precharge, On-Chip Intercept
  of PCI Reset Signal and Much More
  by Andrew Gardner
  Introduction
  When a circuit board is inserted into
  a “hot” (powered) backplane, its supply bypass capacitors can draw large
  currents from the backplane power
  bus as they charge. These currents
  can cause glitches on the backplane
  supply voltage, resetting other boards
  in the system, and can even damage
  edge connectors. The LTC1644 and
  LTC1646 Hot Swapв„ў controllers
  safely limit these charging currents
  during board insertion into a hot backplane. They also offer several features
  specifically tailored for CompactPCIв„ў
  (CPCI) Hot Swap applications: R2
  0.007Ω
  1% 5VIN MED 5V
  LONG 5V R1
  0.005Ω, 1% 3VIN MED 3.3V
  LONG 3.3V LONG V(I/O) V(I/O) MED –12V SHORT BD_SEL# CompactPCI CONNECTOR D1 R4 …

Модельный ряд

Классификация производителя

• Monitor, Control and Protection > Hot Swap Controllers > PCI Hot Swap Controllers | Low Voltage Hot Swap Controllers

Варианты написания:

LTC1644CGNPBF, LTC1644CGN PBF
