TLX9304
TOSHIBA PHOTOCOUPLER LED & PHOTO-IC TLX9304
Unit: mm гЂ‡ Inverter control applications in Automotive Equipment
гЂ‡ Interface of IPM (Intelligent Power Module)
гЂ‡ HEV (Hybrid Electric Vehicle)
and EV (Electric Vehicle) Applications

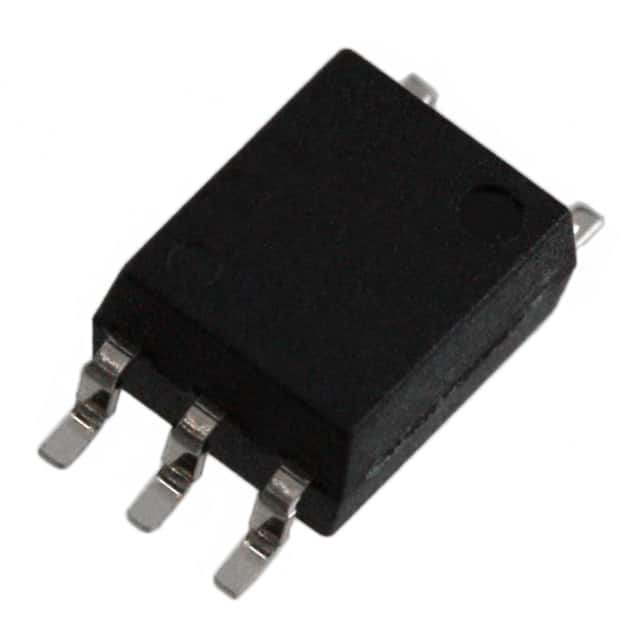

The Toshiba TLX9304 consists of an infrared light emitting diode and
integrated high gain, high-speed photodetectors. The TLX9304 is housed in
the SO6 package. The output stage is an open collector type.
The photodetector has an internal Faraday shield that provides a
common-mode transient immunity of 15 kV/Ојs. TLX9304 realizes minimum
and maximum of propagation delay time, switching speed dispersion, and
high common mode transient immunity. Therefore TLX9304 is suitable for
isolation interface between IPM (Intelligent Power Module) in motor control
application.
пЃ¬ Isolation voltage : 3750 Vrms (min) пЃ¬ Common mode transient immunity : 15 kV/Ојs (min)
@VCM = 1500 V пЃ¬ Propagation delay time (tpHL/tpLH): tpHL = 400 ns (max)
tpLH = 550 ns (max) пЃ¬ Switching Time Dispersion(|tpLH-tpHL|): пЃ¬ It becomes TTL compatible by connecting the resistance. пЃ¬ AEC-Q101 qualified 400 ns (max) JEDEC
―
JEITA
―
TOSHIBA
11-4L1 …
