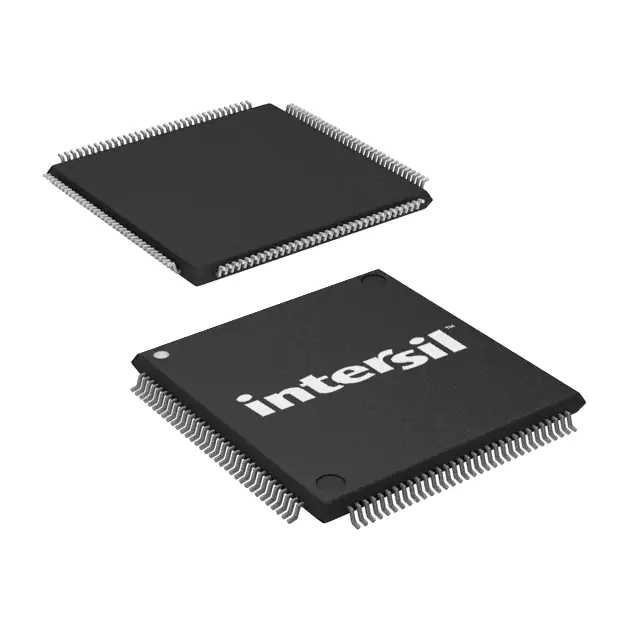

Datasheet Intersil TW8836 — Даташит

DATA SHORT
To request the full datasheet, please visit www.intersil.com/products/TW8836 TW8836 FN8645
Rev 5.00
November 3, 2016 LCD Video Processor with Built-In Decoder, TTL/LVDS Inputs, MCU, OSD, and
TTL/LVDS Panel Interface Features The TW8836 is a highly integrated LCD video processor that
incorporates many of the features required to create a
multipurpose LCD display system into a single package. This
includes a high quality, 2D comb NTSC/PAL/SECAM video
decoder, triple high-speed RGB ADCs, an LVDS and TTL digital
input interface, high-quality scaler and deinterlacer, as well as a
versatile OSD, high-performance MCU and LVDS or TTL output
panel interface. The TW8836 can support input resolutions up
to 1080p and can drive LCD panels at resolutions up to
1366x768. The TW8836’s video processing capability includes
arbitrary H/V scaling, panoramic scaling, image mirroring,
image adjustment and enhancement, black and white stretch,
etc. The feature set and versatility of this device makes it an
ideal solution for in-car LCD display applications, as well as
portable display applications such as pico projectors. Analog Video Decoder NTSC (M, 4.43) and PAL (B, D, G, H, I, M, N, N combination),
PAL (60), SECAM with automatic format detection Three 10-bit ADCs and analog clamping circuit Fully programmable static gain or automatic gain control for
the Y or CVBS channel Programmable white peak control for the Y or CVBS channel Software selectable analog inputs allow composite, S-video,
analog YPbPr, or RGB High quality adaptive 2D comb filter for NTSC/PAL inputs PAL delay line for color phase error correction Image enhancement with 2D dynamic peaking/CTI Digital subcarrier PLL for accurate color decoding Programmable hue, brightness, saturation, contrast, sharpness Selectable differential or single-ended CVBS input Digital horizontal PLL and advanced synchronization
processing for VCR playback and weak signal performance High quality horizontal and vertical filtered-down scaling …
