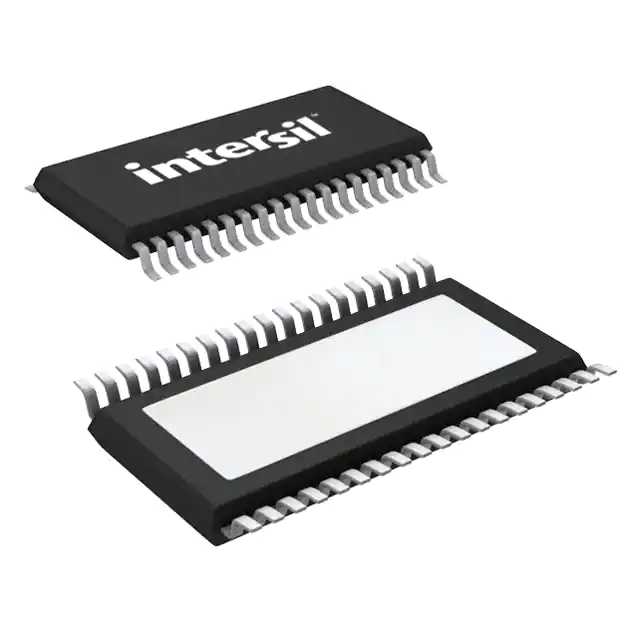

D2-24044 Features The D2-24044 device is a high performance, integrated
Class-D amplifier power stage. The four power stage
outputs are configurable as four separate Half-Bridge
outputs, as two Full-Bridge outputs, or combinations of
Half-Bridge and Full-Bridge. Individual power stage
overload monitoring, on-chip temperature monitoring,
and common alert logic outputs provide protection to
integrate with the final system’s controller. All Digital Class-D Power Stage 4
-Configurable Power Stage Outputs Supporting:
2 Channels, Bridged
4 Channels, Half-Bridge
2 Channels, Half-Bridge, plus 1 Channel Bridged Output Power (Bridged)
-25W (8О©, <1% THD)
-30W (8О©, <10% THD) Single HV Supply -Wide 9V-26V Range
-Gate Drive Supply Internally-Generated Individual Channel Protection Monitoring Temperature and Undervoltage Monitoring Efficient 38 Ld HTSSOP Package Digital Amplifier Power Stage
HSBSA
HVDDA nOVRT
nPDN
IREF Configuration &
Control OUTA
HGNDA OCFG1 nERRORA OCFG0 HSBSB
HVDDB
PWM1 …
