DATASHEET
EL9115 FN7441
Rev 7.00
January 12, 2012 Triple Analog Video Delay Line
The EL9115 is a triple analog delay line that allows skew
compensation between any three signals. This part is perfect
for compensating for the skew introduced by a typical CAT-5
cable with differing electrical lengths on each pair. Features The EL9115 can be programmed in steps of 2ns up to 62ns

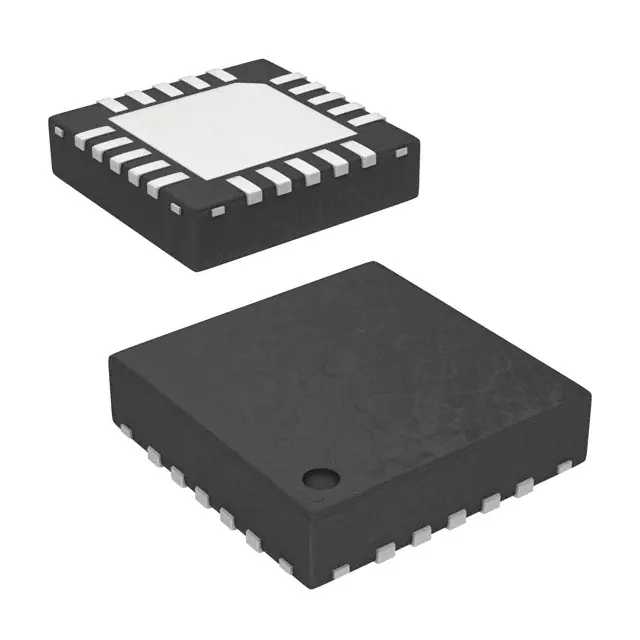

total delay on each channel. Operates from В±5V supply Ordering Information Low power consumption Up to 122MHz bandwidth 20 Ld QFN (5mmx5mm) package 3. For Moisture Sensitivity Level (MSL), please see device
information page for EL9115. For more information on MSL,
please see Tech Brief TB363. Analog beamforming Pinout
EL9115
(20 LD 5X5 QFN)
TOP VIEW
16 VSPO 2. These Intersil Pb-free plastic packaged products employ special
Pb-free material sets, molding compounds/die attach materials,
and 100% matte tin plate plus anneal (e3 termination finish,
which is RoHS compliant and compatible with both SnPb and
Pb-free soldering operations). Intersil Pb-free products are MSL
classified at Pb-free peak reflow temperatures that meet or
exceed the Pb-free requirements of IPC/JEDEC J STD-020. Skew control for RGB VSP 1 15 ROUT RIN 2 14 GNDO
THERMAL
PAD GND 3 13 GOUT …
