DATASHEET
ISL34341 FN6827
Rev 1.00
Jun 19, 2008 WSVGA 24-Bit Long-Reach Video SERDES with Bi-directional Side-Channel

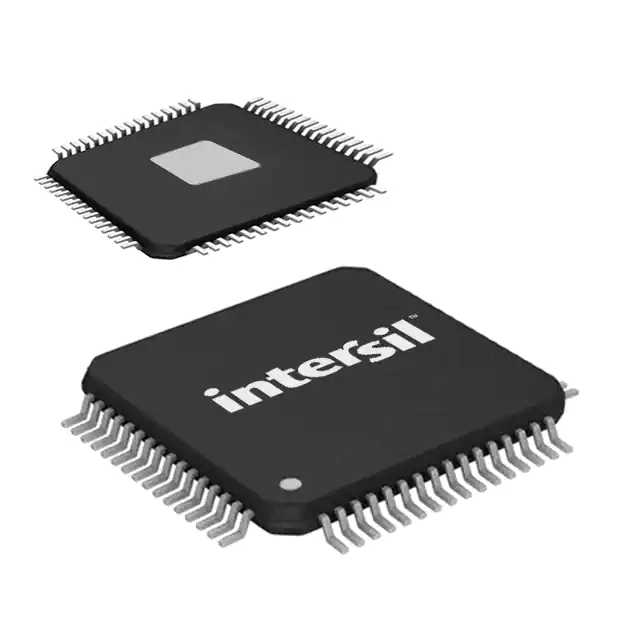

The ISL34341 is a serializer/deserializer of LVCMOS parallel
video data. The video data presented to the serializer on the
parallel LVCMOS bus is serialized into a high-speed
differential signal. This differential signal is converted back to
parallel video at the remote end by the deserializer. It also
transports auxiliary data bi-directionally over the same link
during the video vertical retrace interval.
I2C bus mastering allows the placement of external slave
devices on the remote side of the link. An I2C controller can
be placed on either side of the link allowing bi-directional I2C
communication through the link to the external devices on
the other side. Both chips can be fully configured from a
single controller or independently by local controllers. TEMP.
RANGE
(В°C) PART
MARKING 24-bit RGB transport over single differential pair 6MHz to 40MHz pixel clock rates Bi-directional auxiliary data transport without extra
bandwidth and over the same differential pair I2C Bus Mastering to the remote side of the link with a
controller on either the serializer or deserializer 40MHz PCLK transports
-SVGA 800x600 @ 70fps, 16% blanking …
