DATASHEET
ISLA216P FN7574
Rev 2.00
December 10, 2012 16-Bit, 250MSPS/200MSPS/130MSPS ADC
The ISLA216P is a family of low power, high performance
16-bit analog-to-digital converters. Designed with Intersil’s
proprietary FemtoChargeв„ў technology on a standard CMOS
process, the family supports sampling rates of up to
250MSPS. The ISLA216P is part of a pin-compatible portfolio
of 12 to 16-bit A/Ds with maximum sample rates ranging from
130MSPS to 500MSPS. Features A serial peripheral interface (SPI) port allows for extensive
configurability, as well as fine control of various parameters
such as gain and offset. Programmable built-in test patterns Digital output data is presented in selectable LVDS or CMOS

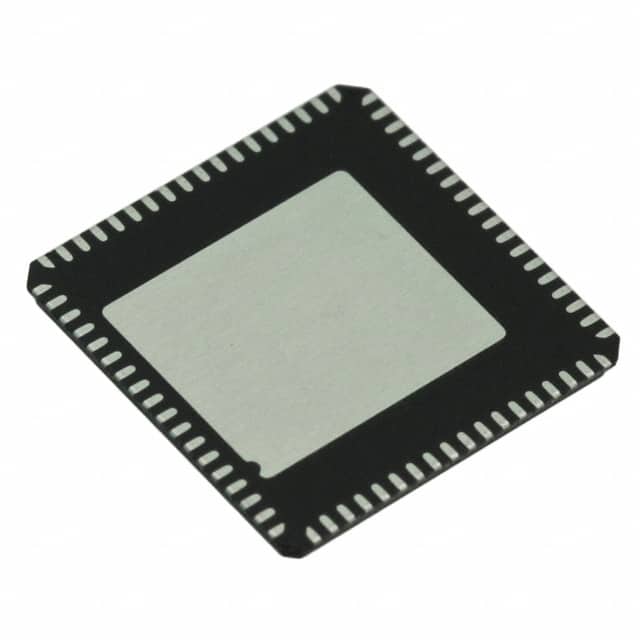

formats. The ISLA216P is available in a 72-contact QFN
package with an exposed paddle. Operating from a 1.8V
supply, performance is specified over the full industrial
temperature range (-40В°C to +85В°C). Single supply 1.8V operation Clock duty cycle stabilizer 75fs Clock jitter 700MHz Bandwidth Multi-ADC support
-SPI Programmable fine gain and offset control
-Support for multiple ADC synchronization
-Optimized output timing Nap and sleep modes
-200Вµs Sleep wake-up time Data output clock Key Specifications DDR LVDS-compatible or LVCMOS outputs SNR @ 250/200/130MSPS
-75.0/76.6/77.5dBFS fIN = 30MHz
-72.1/72.6/72.4dBFS fIN = 363MHz SFDR @ 250/200/130MSPS …
