DATASHEET
ISL3232E, ISL4221E, ISL4223E FN6045
Rev 6.00
May 13, 2010 QFN Packaged, В±15kV ESD Protected, +2.7V to +5.5V, 150nA, 250kbps, RS-232
Transmitters/Receivers
The Intersil ISL3232E and ISL4221E, ISL4223E devices are
2.7V to 5.5V powered RS-232 transmitters/receivers which
meet ElA/TIA-232 and V.28/V.24 specifications, even at
VCC = 3.0V. Additionally, they provide В±15kV ESD protection
(IEC61000-4-2 Air Gap and Human Body Model) on
transmitter outputs and receiver inputs (RS-232 pins).
Targeted applications are PDAs, Palmtops, and hand-held
products where the low operational, and even lower standby,
power consumption is critical. Efficient on-chip charge pumps,
coupled with manual and automatic power-down functions,

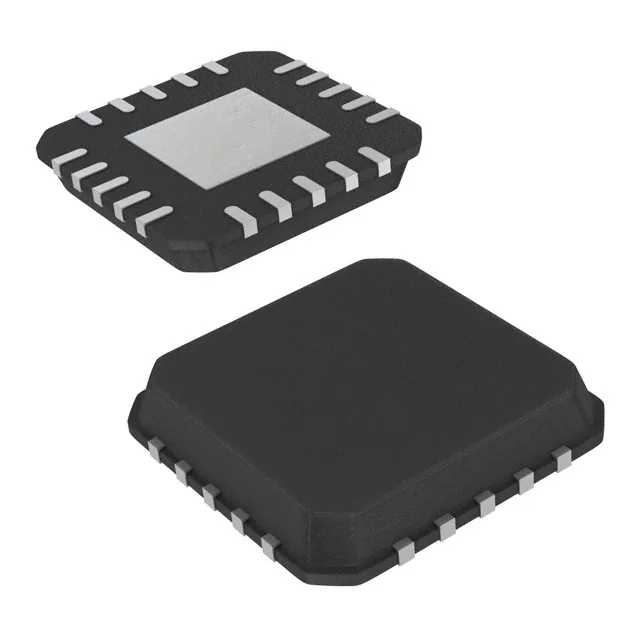

reduce the standby supply current to a 150nA trickle. Tiny
5mmx5mm Quad Flat No-Lead (QFN) packaging and the
use of small, low value capacitors ensure board space
savings as well. Data rates greater than 250kbps are
guaranteed at worst case load conditions.
The ISL4221E is a 1 driver, 1 receiver device and the
ISL3232E and ISL4223E are 2 driver, 2 receiver devices
that, coupled with the 5mmx5mm QFN package, provide the …
