3-Axis, ±200 g
Digital MEMS Accelerometer
ADXL375 Data Sheet
FEATURES GENERAL DESCRIPTION Low power: as low as 35 µA in measurement mode and
0.1 µA in standby mode at VS = 2.5 V
Power consumption scales automatically with bandwidth
Embedded, 32-level FIFO buffer minimizes processor load
Bandwidth of up to 1 kHz
Bandwidth selectable via serial command
Shock event detection
Activity/inactivity monitoring
Supply voltage range: 2.0 V to 3.6 V
I/O voltage range: 1.7 V to VS
SPI (3-or 4-wire) and I2C digital interfaces
Wide temperature range: −40°C to +85°C
10,000 g shock survival
Pb free/RoHS compliant

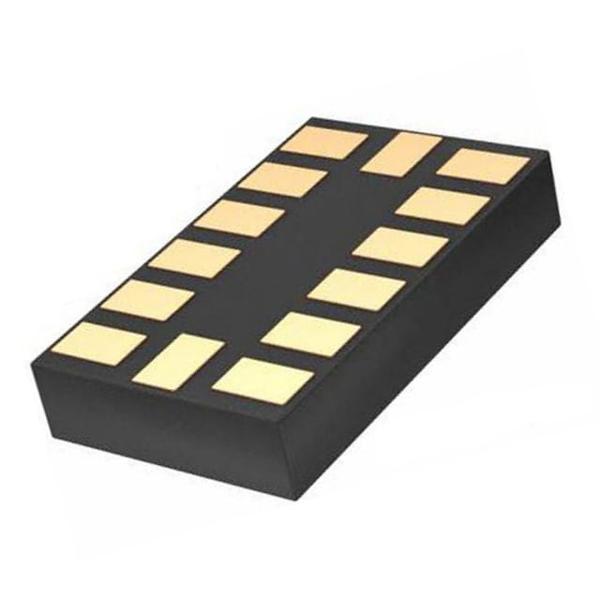

Small and thin: 3 mm × 5 mm × 1 mm LGA package The ADXL375 is a small, thin, 3-axis accelerometer that provides
low power consumption and high resolution measurement up
to ±200 g. The digital output data is formatted as 16-bit, twos
complement data and is accessible through a SPI (3-or 4-wire)
or I2C digital interface.
An integrated memory management system with a 32-level first in, …

REVISIONS
LTR DESCRIPTION DATE Prepared in accordance with ASME Y14.24 APPROVED Vendor item drawing REV
PAGE
REV
PAGE
REV STATUS
OF PAGES REV
PAGE PMIC N/A 1 2 3 4 5 6 7 8 9 PREPARED BY DLA LAND AND MARITIME
COLUMBUS, OHIO 43218-3990
http://www.landandmaritime.dla.mil/ Phu H. Nguyen
Original date of drawing
YY MM DD CHECKED BY TITLE
Phu H. Nguyen 18-08-09 APPROVED BY
Thomas M. Hess
SIZE A
REV 10 CODE IDENT. NO. MICROCIRCUIT, DIGITAL, 3-AXIS, ±200 g,
DIGITAL MEMS ACCELEROMETER,
MONOLITHIC SILICON
DWG NO. V62/18612 16236
PAGE 1 OF 10 DISTRIBUTION STATEMENT A. Approved for public release. Distribution is unlimited.
AMSC N/A 5962-V100-18 1. SCOPE
1.1 Scope. This drawing documents the general requirements of a high performance 3-Axis, ±200 g Digital MEMS Accelerometer
microcircuit, with an operating temperature range of -55°C to +105°C. …

3-Axis, ±200 g Digital MEMS
Accelerometer
ADXL375-EP Enhanced Product
FEATURES GENERAL DESCRIPTION Low power: as low as 35 µA in measurement mode and
0.1 µA in standby mode at VS = 2.5 V
Power consumption scales automatically with bandwidth
Embedded, 32-level FIFO buffer minimizes processor load
−3 dB bandwidth of up to 1.6 kHz
Bandwidth selectable via serial command
Shock event detection
Activity/inactivity monitoring
Supply voltage range: 2.0 V to 3.6 V
I/O voltage range: 1.7 V to VS
SPI (3-or 4-wire) and I2C digital interfaces
10,000 g shock survival
Pb free/RoHS compliant
Small and thin: 3 mm × 5 mm × 1 mm LGA package The ADXL375-EP is a small, thin, 3-axis accelerometer that
provides low power consumption and high resolution
measurement up to ±200 g. The digital output data is formatted
as 16-bit, twos complement data and is accessible through a
serial peripheral interface (SPI) (3-or 4-wire) or I2C digital
interface.
An integrated memory management system with a 32-level first in, …
