Datasheet Intersil ISL32602E — Даташит
| Производитель | Intersil |
| Серия | ISL32602E |
1.8V to 3.3V, Micro-Power, В±15kV ESD, +125В°C, Slew Rate Limited, RS-485/RS-422 Transceivers
Datasheets
ISL32600E, ISL32601E, ISL32602E, ISL32603E Datasheet
PDF, 1.2 Мб, Версия: 2014-12-15
Выписка из документа
Цены
 Купить ISL32602E на РадиоЛоцман.Цены — от 1.70 до 485 ₽24 предложений от 15 поставщиков Чип интерфейса, PB-FREE uPOWER 1.8V 14LD SOIC,-40+125 RS-485 TRANSC 128KBPS HT SUSA CODE:8542390000 | |||
| ISL32602EFBZ Renesas | 49 ₽ | ||
| ISL32602EFBZ-T Intersil | 104 ₽ | ||
| ISL32602EFBZ-T Intersil | по запросу | ||
| ISL32602EFUZ-T Intersil | по запросу | ||
Корпус / Упаковка / Маркировка
| ISL32602EFBZ | ISL32602EFBZ-T | ISL32602EFBZ-T7A | ISL32602EFUZ | ISL32602EFUZ-T | ISL32602EFUZ-T7A | |
|---|---|---|---|---|---|---|
| N | 1 | 2 | 3 | 4 | 5 | 6 |

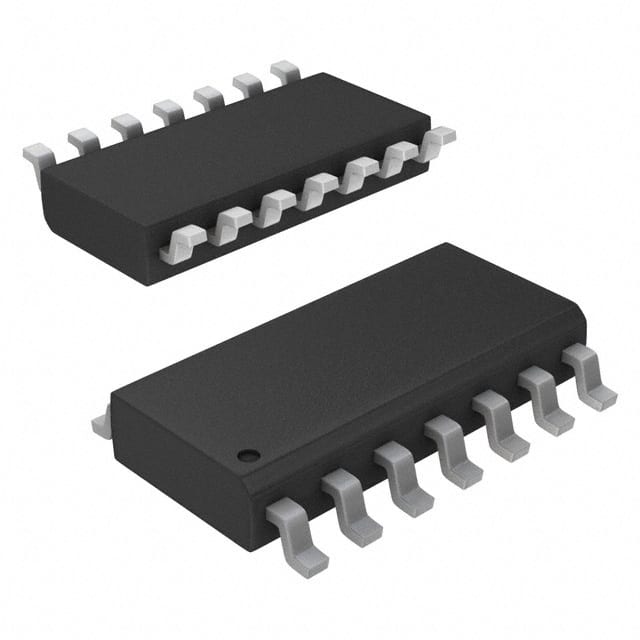

| Корпус | 14 Ld SOIC | 14 Ld SOIC T+R | 14 Ld SOIC T+R | 10 Ld MSOP | 10 Ld MSOP T+R | 10 Ld MSOP T+R |
Параметры
| Parameters / Models | ISL32602EFBZ | ISL32602EFBZ-T | ISL32602EFBZ-T7A | ISL32602EFUZ | ISL32602EFUZ-T | ISL32602EFUZ-T7A |
|---|---|---|---|---|---|---|
| # of Rx | 1 | 1 | 1 | 1 | 1 | 1 |
| # of Tx | 1 | 1 | 1 | 1 | 1 | 1 |
| Скорость передачи данных | 0.46 Mbps | 0.46 Mbps | 0.46 Mbps | 0.46 Mbps | 0.46 Mbps | 0.46 Mbps |
| Description | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers | 1.8V to 3.3V, Micro-Power, ?15kV ESD, +125?C, Slew Rate Limited, RS-485/RS-422 Transceivers |
| Devices Allowed on Bus | 256 | 256 | 256 | 256 | 256 | 256 |
| Half/Full Duplex | Full | Full | Full | Full | Full | Full |
| High ESD? | Yes-IEC61000 | Yes-IEC61000 | Yes-IEC61000 | Yes-IEC61000 | Yes-IEC61000 | Yes-IEC61000 |
| Hot Plug | Yes | Yes | Yes | Yes | Yes | Yes |
| IS Enabled/Disabled | 105 μA | 105 μA | 105 μA | 105 μA | 105 μA | 105 μA |
| Key Feature | Low Power | Low Power | Low Power | Low Power | Low Power | Low Power |
| Рабочий диапазон температур | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 | от -40 до 125 |
| Peak Temp | 260°C | 260°C | 260°C | 260°C | 260°C | 260°C |
| Qualification Level | Standard | Standard | Standard | Standard | Standard | Standard |
| SHDN ICC | .01 μA | .01 μA | .01 μA | .01 μA | .01 μA | .01 μA |
| Slew Rate Limited | Yes | Yes | Yes | Yes | Yes | Yes |
| Tx/Rx Enable | Yes | Yes | Yes | Yes | Yes | Yes |
| VCC (max) | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V | 3.6 V |
| VCC (min) | 1.8 V | 1.8 V | 1.8 V | 1.8 V | 1.8 V | 1.8 V |
| VL Pin | No | No | No | No | No | No |
Экологический статус
| ISL32602EFBZ | ISL32602EFBZ-T | ISL32602EFBZ-T7A | ISL32602EFUZ | ISL32602EFUZ-T | ISL32602EFUZ-T7A | |
|---|---|---|---|---|---|---|
| RoHS | Совместим | Совместим | Совместим | Совместим | Совместим | Совместим |
Другие варианты исполнения
Модельный ряд
Серия: ISL32602E (6)
Классификация производителя
- Interface ICs > RS-485, RS-422 & RS-232 > RS-485/RS-422
