Datasheet Intersil HI4P0509-5Z — Даташит

Производитель	Intersil
Серия	HI-509
Модель	HI4P0509-5Z

Одиночные 16 и 8/дифференциальные 8-канальные и 4-канальные аналоговые КМОП-мультиплексоры

Datasheets

Скачать

PDF, 887 Кб, Версия: 2017-12-14

Выписка из документа

HI-506, HI-507, HI-508, HI-509
Data Sheet Single 16 and 8/Differential 8-Channel and
4-Channel CMOS Analog Multiplexers
The HI-506/HI-507 and HI-508/HI-509 monolithic CMOS
multiplexers each include an array of sixteen and eight
analog switches respectively, a digital decoder circuit for
channel selection, voltage reference for logic thresholds, and
an enable input for device selection when several
multiplexers are present. The Dielectric Isolation (DI)
process used in fabrication of these devices eliminates the
problem of latchup. DI also offers much lower substrate
leakage and parasitic capacitance than conventional junction
isolated CMOS (see Application Note AN520). June 14, 2016 FN3142.10 Features Pb-Free Available (RoHS Compliant) (See Ordering Info) Low ON Resistance 180пЃ— Wide Analog Signal RangeпЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ®пЂ пЂ В±15V TTL/CMOS Compatible Access Time . 250ns Maximum Power Supply 44V Break-Before-Make Switching No Latch-Up The switching threshold for each digital input is established by
an internal +5V reference, providing a guaranteed minimum
2.4V for logic вЂњ1вЂќ and maximum 0.8V for logic вЂњ0вЂќ. This allows
direct interface without pullup resistors to signals from most
logic families: CMOS, TTL, DTL and some PMOS. For
protection against transient overvoltage, the digital inputs
include a series 200пЃ— resistor and diode clamp to each
supply. Replaces DG506A/DG506AA and DG507A/DG507AA The HI-506 is a single 16-channel, the HI-507 is an
8-channel differential, the HI-508 is a single 8-channel and
the HI-509 is a 4-channel differential multiplexer. Selector Switch Replaces DG508A/DG508AA and DG509A/DG509AA Applications Data Acquisition Systems Precision Instrumentation Demultiplexing If input overvoltages are present, the HI-546/HI-547/HI-548/
HI-549 multiplexers are recommended. 1 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. …

Купить HI4P0509-5Z на РадиоЛоцман.Цены — от 320 до 3 645 ₽ 14 предложений от 14 поставщиков Чип интерфейса, Analog Multiplexer Dual 4:1 20Pin PLCC T/R
AiPCBA Весь мир	HI4P0509-5Z Intersil	1 022 ₽
Кремний Россия и страны СНГ	HI4P0509-5Z	по запросу
SUV System Весь мир	HI4P0509-5Z	по запросу
МосЧип Россия	HI4P0509-5Z96 Intersil	по запросу

АЦП азиатских производителей. Часть 1. Преобразователи последовательного приближения

Корпус / Упаковка / Маркировка

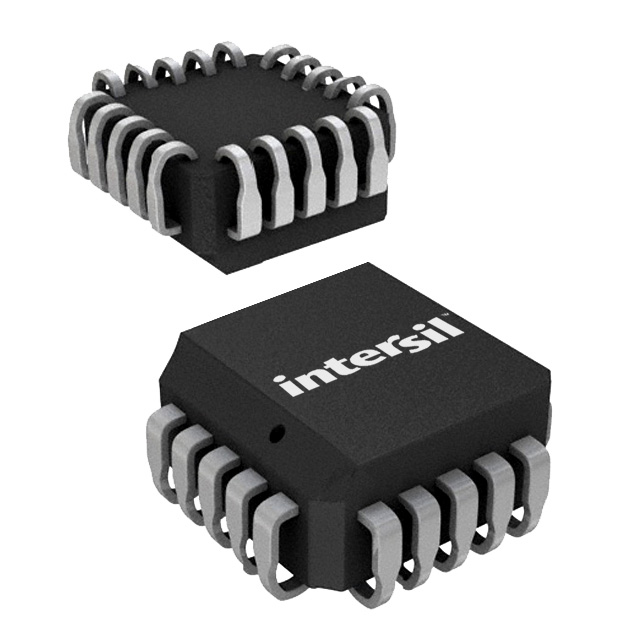

Корпус	20 Ld PLCC
Индекс корпуса	N20.35
Пиковая температура пайки	250°C

Параметры

Количество каналов	8
Chg Inj	15 pC
Configuration	2 x 4:1
Description	Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers
Drain Cap	12 pF
IS	1.5 mA
Leakage	0.3 nA
Количество каналов	8
Рабочий диапазон температур	от -55 до 125
Qualification Level	Standard
Source Cap	10 pF
Switch or MUX	MUX
TOFF	250 ns
TON	250 ns
Type of Switch	N/A
VCC (Dual) (max)	В±18 V
VCC (Dual) (min)	В±10 V
VCC (Single) (max)	20 V
VCC (Single) (min)	20 V
rDS(ON)	180 О©

Экологический статус

RoHS

Совместим

Другие варианты исполнения

HI-506 HI-507 HI-508

Модельный ряд

Серия: HI-509 (8)

HI1-0509-2 HI1-0509-4 HI1-0509-5 HI3-0509-5 HI4P0509-5 HI4P0509-5Z HI9P0509-5 HI9P0509-5Z

Классификация производителя

Space & Harsh Environment > Harsh Environment > Switches/MUXs/Crosspoints

Варианты написания:

HI4P05095Z, HI4P0509 5Z
