DATASHEET
ISL54059
Negative Signal Swing, Sub-ohm, Dual SPDT Single Supply Switch
The Intersil ISL54059 device is a low ON-resistance, low
voltage, bi-directional, dual single-pole/double-throw (SPDT)
analog switch. It is designed to operate from a single +1.8V to
+6.5V supply and pass signals that swing down to 6.5V below
the positive supply rail. Targeted applications include battery
powered equipment that benefit from low rON (0.56пЃ—пЂ©пЂ¬пЂ low
power consumption (8nA) and fast switching speeds
(tON = 55ns, tOFF = 18ns). The digital inputs are 1.8V
logic-compatible up to a +3V supply. The ISL54059 is offered
in a small form factor package, alleviating board space

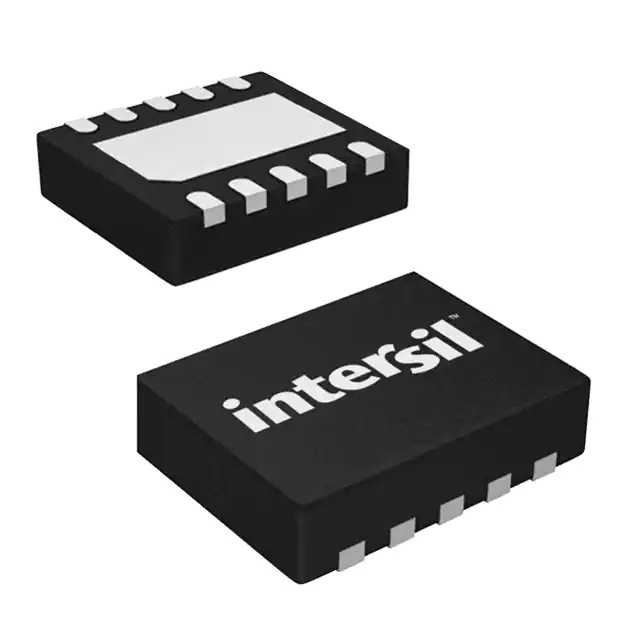

limitations. It is available in a tiny 10 Ld 1.8x1.4mm ВµTQFN or
10 Ld 3x3mm TDFN package.
The ISL54059 is a committed dual single-pole/double-throw
(SPDT) that consists of two normally open (NO) and two
normally closed (NC) switches with independent logic control.
This configuration can be used as a dual 2-to-1 multiplexer.
TABLE 1. FEATURES AT A GLANCE FN6579
Rev 2.00
March 11, 2011 Features Pb-Free (RoHS Compliant) Negative Signal Swing (Max 6.5V Below V+) ON-Resistance (rON)
-V+ = +4.5V 0.52пЃ— …
