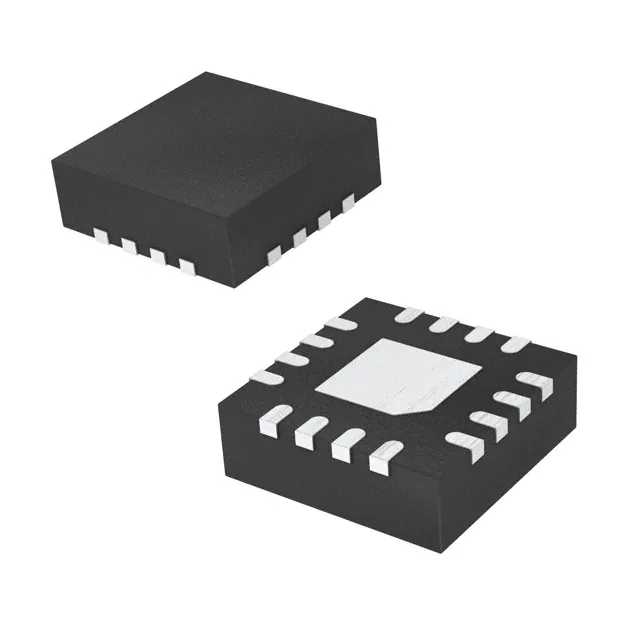

MIC4606
85V Full-Bridge MOSFET Drivers with Adaptive Dead Time and
Shoot-Through Protection
Features General Description The MIC4606 is an 85V full-bridge MOSFET driver that
features adaptive dead time and shoot-through
protection. The adaptive dead time circuitry actively
monitors both sides of the full-bridge to minimize the
time between high-side and low-side MOSFET
transitions, thus maximizing power efficiency.
Antishoot-through circuitry prevents erroneous inputs
and noise from turning both MOSFETs of each side of
the bridge on at the same time. 5.5V to 16V Gate Drive Supply Voltage Range
Advanced Adaptive Dead Time
Intelligent Shoot-Through Protection
MIC4606-1: 4 Independent TTL Inputs
MIC4606-2: 2 PWM Inputs
Enable Input For On/Off Control
On-Chip Bootstrap Diodes
Fast 35 ns Propagation Times
Drives 1000 pF Load With 20 ns Rise And Fall
Times Low Power Consumption: 235 ОјA Total Quiescent
Current Separate High-And Low-Side Undervoltage
Protection –40В°C to +125В°C Junction Temperature Range The MIC4606 also offers a wide 5.5V to 16V operating …
