Plastic Packages for Integrated Circuits Package Outline Drawing
L8.3x3J

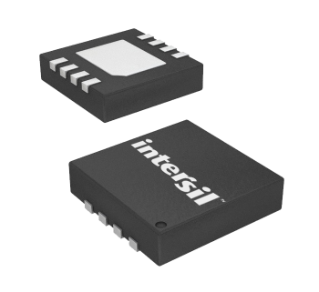

8 LEAD DUAL FLAT NO-LEAD PLASTIC PACKAGE
Rev 1 3/15
2X 1.950
3.00 B 0.15 8 5 3.00 (4X) 6X 0.65 A 1.64 +0.10/ -0.15 6
PIN 1
INDEX AREA 4 8X 0.30
8X 0.400 В± 0.10 TOP VIEW 6 PIN #1 INDEX AREA 1 4 0.10 M C A B
2.38
+0.10/ -0.15 BOTTOM VIEW SEE DETAIL "X" ( 2.38 )
( 1.95) 0.10 C Max 1.00 C
0.08 C SIDE VIEW ( 8X 0.60)
(1.64)
( 2.80 ) PIN 1 C 0 . 2 REF 5 (6x 0.65)
0 . 00 MIN.
0 . 05 MAX. ( 8 X 0.30) DETAIL "X" TYPICAL RECOMMENDED LAND PATTERN NOTES:
1. Dimensions are in millimeters.
Dimensions in ( ) for Reference Only. 2. Dimensioning and tolerancing conform to AMSE Y14.5m-1994. 1 3. Unless otherwise specified, tolerance : Decimal В± 0.05 4. Dimension applies to the metallized terminal and is measured
between 0.15mm and 0.30mm from the terminal tip. 5. Tiebar shown (if present) is a non-functional feature and may be
located on any of the 4 sides (or ends). 6. The configuration of the pin #1 identifier is optional, but must be
located within the zone indicated. The pin #1 identifier may be
either a mold or mark feature. …
