Datasheet Texas Instruments TPS2023P — Даташит
| Производитель | Texas Instruments |
| Серия | TPS2023 |
| Модель | TPS2023P |
1,65 А, 2,7–5,5 В, одиночный переключатель распределения питания, MOSFET Hi-Side, отчет об ошибках, включение режима Act-Low 8-PDIP -40 to 85
Datasheets
TPS2020/21/22/23/24 - Power-Distribution Switches datasheet
PDF, 810 Кб, Версия: C, Файл опубликован: 24 сен 2007
Выписка из документа
Цены
 Купить TPS2023P на РадиоЛоцман.Цены — от 35 до 811 ₽31 предложений от 15 поставщиков Контролер нагрузки, 1.65A, 2.7-5.5V Single Power Distribution Switch IC Hi-Side MOSFET, Fault eport, Act-Low Enable 8-PDIP -40℃ to 85℃ | |||
| TPS2023P Texas Instruments | от 136 ₽ | ||
| TPS2023P Texas Instruments | 148 ₽ | ||
| TPS2023P Texas Instruments | от 256 ₽ | ||
| TPS2023P Texas Instruments | от 292 ₽ | ||
Статус
| Статус продукта | В производстве (Рекомендуется для новых разработок) |
| Доступность образцов у производителя | Нет |

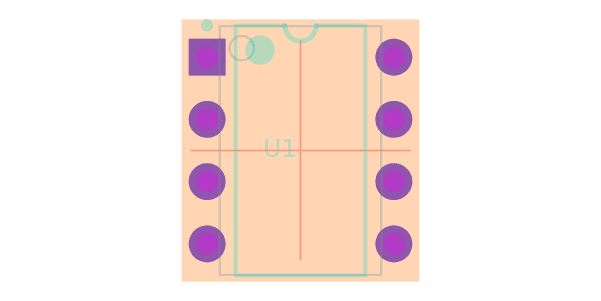

Корпус / Упаковка / Маркировка
| Pin | 8 |
| Package Type | P |
| Industry STD Term | PDIP |
| JEDEC Code | R-PDIP-T |
| Package QTY | 50 |
| Carrier | TUBE |
| Маркировка | TPS2023P |
| Width (мм) | 6.35 |
| Length (мм) | 9.81 |
| Thickness (мм) | 3.9 |
| Pitch (мм) | 2.54 |
| Max Height (мм) | 5.08 |
| Mechanical Data | Скачать |
Параметры
| Continuous Current(Max) | 1.5 A |
| Current Limit Topology | Constant-Current |
| Enable | Active Low |
| Number of Switches | 1 |
| Рабочий диапазон температур | от -40 до 85 C |
| Package Group | PDIP |
| Package Size: mm2:W x L | See datasheet (PDIP) PKG |
| Rating | Catalog |
| USB Switch rDS(on) | 33 mOhms |
| Vin(Max) | 5.5 В |
| Vin(Min) | 2.7 В |
Экологический статус
| RoHS | Совместим |
| Бессвинцовая технология (Pb Free) | Да |
Application Notes
- Protecting Industrial Digital Control Outputs Using Intelligent MOSFETSPDF, 55 Кб, Файл опубликован: 26 окт 2000
Digital outputs in industrial applications often must implement some type of protection measure. The integrity of the signal, transmitted over a distance of several meters, can suffer due to fault conditions like a short circuit or an overcurrent, either of which can damage the device driving the signal. To prevent electromagnetic compatibility problems, it may also be necessary to slow down the s - TPS202x/3x And TPS204x/5x USB Power DistributionPDF, 116 Кб, Файл опубликован: 16 окт 1998
The USB specification, revision 1.1, defines the power distribution requirements for the self-powered hubs (including hosts), bus-powered hubs, and functions. This application report demonstrates how Texas Instruments power management products meet or exceed voltage regulation, voltage droop, and EMI requirements in the USB power distribution system. - Power Management Solutions for Infiniband (SM) I/O ModulesPDF, 75 Кб, Файл опубликован: 20 окт 2000
InfiniBand, a scalable, modular, channel-based, switched-fabric architecture, is defined for the connection of servers with servers and with storage and networking devices. Because appropriate power management is essential for quality implementations, this report presents straightforward solutions for both high-power and low-power applications as required by the InfiniBand specification. - Power Supply Sequencing Solutions for Dual Supply Voltage DSPs (Rev. A)PDF, 104 Кб, Версия: A, Файл опубликован: 5 июл 2000
This application report describes power-supply sequencing recommendations and techniques applicable to dual supply voltage DSPs in TI's TMS320C2000 TMS320C5000 and TMS320C6000 families. These techniques take advantage of the reset power good enable and soft-start features available on TI Power Management Products including low drop out regulators switching power supply controllers supply vol - A Power-Distribution Switch With Latched Over-Current Protection (Rev. A)PDF, 99 Кб, Версия: A, Файл опубликован: 3 июл 2007
Power-distribution switches, like the TPS203x, operate in retry mode in an overload, but some applications require the switch to latch off. The latch-off function can be implemented using the simple circuit described in this application report.
Модельный ряд
Серия: TPS2023 (5)
- TPS2023D TPS2023DG4 TPS2023DR TPS2023DRG4 TPS2023P
Классификация производителя
- Semiconductors > Power Management > USB Power and Charging Port Controllers > Fixed Current Limited Switch
