MASW20000
GaAs SPDT Switch
DC -20 GHz Rev. V5 Features
п‚ п‚ п‚ п‚ п‚ п‚ п‚ Very Broadband Performance
Low Insertion Loss: 1.75 dB Typical @ 18 GHz
High Isolation: 50 dB Typical @ 18 GHz
Fast Switching Speed: 2 ns Typical
Reflective Configuration
Ultra Low DC Power Consumption
Via Hole Grounding Pad Layout

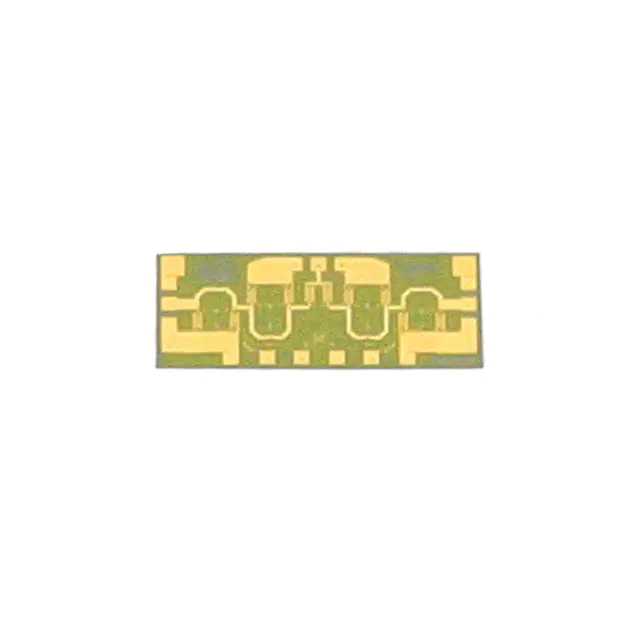

GND RF GND GND GND RF1 RF2 GND GND Description
M/A-COM’s MASW20000 is a versatile, high
isolation SPDT switch. Designed on M/A-COM’s
mature 1-micron MESFET process, this parts is ideal
for modules or other packaging for use in the
Cellular, GPS, LAN and infrastructure markets.
Demonstrating performance up to 20 GHz, the
MASW20000 will perform well in many types of
applications within that range. A1 B2 B1 A2 Bond Pad Dimensions
Bond Pad Dimension Inches (mm) RF, RF1, RF2 0.004 x 0.004 (0.100 x 0.100) A1, A2, B1, B2 0.004 x 0.004 (0.100 x 0.100) DIE Size 0.083 x 0.035 x 0.004
(2.10 x 0.89 x 0.10) 1 Ordering Information
Part Number Package MASW20000 Die 1. Die quantity varies. Schematic
Absolute Maximum Ratings2 …
