GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610
www.vishay.com Vishay General Semiconductor Glass Passivated Single-Phase Bridge Rectifier
FEATURES
• UL recognition file number E54214 ~ • Ideal for printed circuit boards e4 • Typical IR less than 0.5 μA ~ • High surge current capability

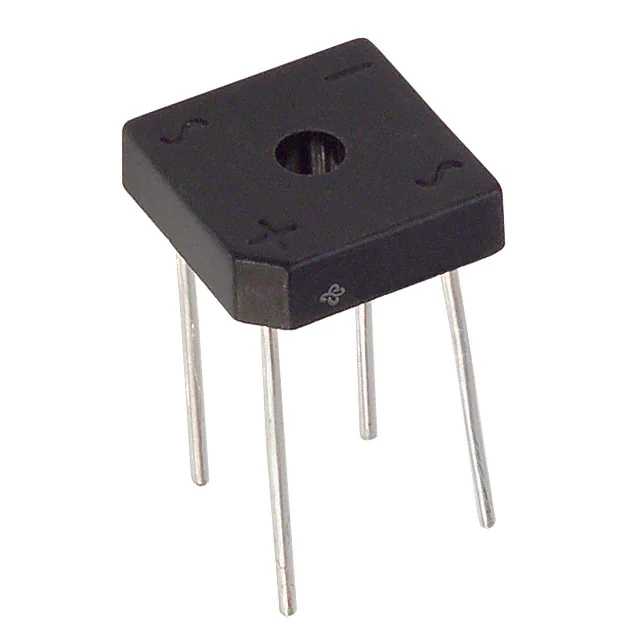

• High case dielectric strength 1500 VRMS ~ ~ • Solder dip 275 °C max. 10 s, per JESD 22-B106 Case Style GBPC6 • Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912 TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS
Package General purpose use in AC/DC bridge full wave rectification
for power supply, home appliances, office equipment,
industrial automation applications. GBPC6 IF(AV) 6A VRRM 50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V IFSM 175 A MECHANICAL DATA IR 5 μA Case: GBPC6 VF at IF = 3.0 A 1.0 V TJ max. 150 °C Diode variations Quad Molding compound meets UL 94 V-0 flammability rating
Base P/N-E4 -RoHS-compliant, commercial grade
Terminals: Silver plated
J-STD-002 and JESD22-B102 leads, solderable per Polarity: As marked, positive lead by beveled corner
Mounting Torque: 10 cm-kg (8.8 in-lbs) maximum
Recommended Torque: 5.7 cm-kg (5 in-lbs) maximum MAXIMUM RATINGS (TA = 25 °C unless otherwise noted)
SYMBOL GBPC
6005 GBPC
601 GBPC
602 GBPC
604 GBPC
606 GBPC
608 GBPC
610 UNIT Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS bridge input voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V PARAMETER Maximum average forward …
