TEMD1000, TEMD1020, TEMD1030, TEMD1040
www.vishay.com Vishay Semiconductors Silicon PIN Photodiode, RoHS Compliant
TEMD1000 FEATURES TEMD1020 Package type: surface mount Package form: GW, RGW, yoke, axial TEMD1030 Dimensions (L x W x H in mm): 2.5 x 2 x 2.7 Radiant sensitive area (in mm2): 0.23 High radiant sensitivity Daylight blocking filter matched with 870 nm to
950 nm emitters TEMD1040 Fast response times Angle of half sensitivity: пЃЄ = В± 15В° Package matches with IR emitter series TSMF1000 18029 Floor life: 168 h, MSL 3, acc. J-STD-020 Compliant to RoHS Directive 2002/95/EC and in
accordance with WEEE 2002/96/EC DESCRIPTION

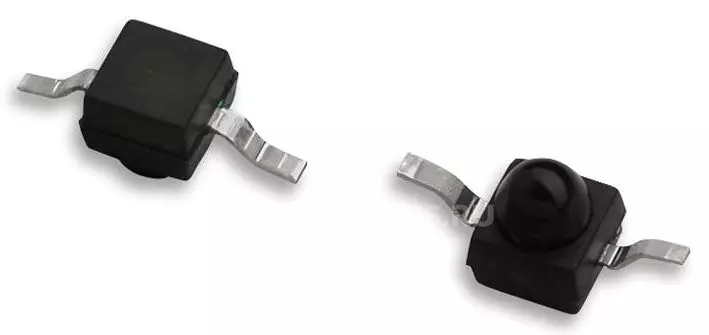

TEMD1000 series are PIN photodiodes with high speed and
high radiant sensitivity in black, surface mount plastic
packages with lens and daylight blocking filter. Filter
bandwidth is matched with 870 nm to 950 nm IR emitters. APPLICATIONS High speed detector for infrared radiation Infrared
remote
control
and
free
air
data
transmissionsystems, e.g. in combination with TSFFxxxx
series IR emitters PRODUCT SUMMARY
Ira (μA)  (deg) 0.5 (nm) TEMD1000 6.0 to 13.0 ± 15 790 to 1050 TEMD1020 6.0 to 13.0 ± 15 790 to 1050 TEMD1030 6.0 to 13.0 ± 15 790 to 1050 TEMD1040 6.0 to 13.0 ± 15 790 to 1050 COMPONENT Note Test conditions see table “Basic Characteristics” ORDERING INFORMATION
ORDERING CODE PACKAGING REMARKS PACKAGE FORM TEMD1000 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Reverse gullwing TEMD1020 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Gullwing TEMD1030 Tape and reel MOQ: 1000 pcs, 1000 pcs/reel Yoke TEMD1040 Bulk MOQ: 1000 pcs, 1000 pcs/bulk Axial leads Note MOQ: minimum order quantity ABSOLUTE MAXIMUM RATINGS (Tamb = 25 В°C, unless otherwise specified)
PARAMETER TEST CONDITION Reverse voltage
Power dissipation Tamb п‚Ј 25 В°C Junction temperature
Operating temperature range
Storage temperature range …
