Datasheet Texas Instruments ADS1255IDBT — Даташит
| Производитель | Texas Instruments |
| Серия | ADS1255 |
| Модель | ADS1255IDBT |
24-разрядный дельта-сигма АЦП с очень низким уровнем шума, скоростью 30 кSPS, 20-SSOP, от -40 до 85
Datasheets
Very Low Noise, 24-Bit Analog-to-Digital Converter datasheet
PDF, 992 Кб, Версия: K, Файл опубликован: 17 сен 2013
Выписка из документа
Цены
 Купить ADS1255IDBT на РадиоЛоцман.Цены — от 342 до 46 661 ₽35 предложений от 20 поставщиков TEXAS INSTRUMENTS ADS1255IDBT Analog to Digital Converter, 24Bit, 30KSPS, Single, 4.75V, 5.25V, SSOP | |||
| ADS1255IDBT | 446 ₽ | ||
| ADS1255IDBT Texas Instruments | 1 467 ₽ | ||
| ADS1255IDBT Texas Instruments | от 2 272 ₽ | ||
| ADS1255IDBT | по запросу | ||
Статус
| Статус продукта | В производстве (Рекомендуется для новых разработок) |
| Доступность образцов у производителя | Да |

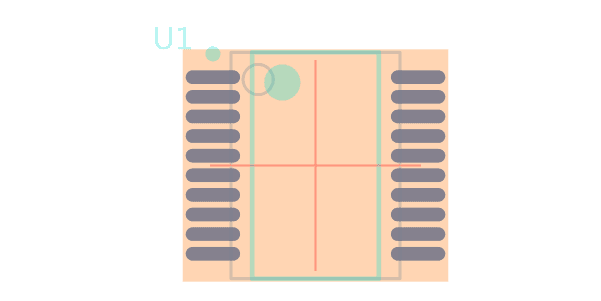

Корпус / Упаковка / Маркировка
| Pin | 20 |
| Package Type | DB |
| Industry STD Term | SSOP |
| JEDEC Code | R-PDSO-G |
| Package QTY | 250 |
| Carrier | SMALL T&R |
| Маркировка | ADS1255IDB |
| Width (мм) | 5.3 |
| Length (мм) | 7.2 |
| Thickness (мм) | 1.95 |
| Pitch (мм) | .65 |
| Max Height (мм) | 2 |
| Mechanical Data | Скачать |
Параметры
| # Input Channels | 2 |
| Analog Voltage AVDD(Max) | 5.25 В |
| Analog Voltage AVDD(Min) | 4.75 В |
| Архитектура | Delta-Sigma |
| Digital Supply(Max) | 3.6 В |
| Digital Supply(Min) | 1.8 В |
| Input Range(Max) | 5.25 В |
| Тип входа | Differential,Single-Ended |
| Integrated Features | 50/60 Hz Rejection,GPIO,PGA |
| Interface | SPI |
| Multi-Channel Configuration | Multiplexed |
| Рабочий диапазон температур | от -40 до 85 C |
| Package Group | SSOP |
| Package Size: mm2:W x L | 20SSOP: 56 mm2: 7.8 x 7.2(SSOP) PKG |
| Power Consumption(Typ) | 36 mW |
| Rating | Catalog |
| Reference Mode | Ext |
| Разрешение | 24 Bits |
| Sample Rate (max) | 30kSPS SPS |
| Sample Rate(Max) | 0.03 MSPS |
Экологический статус
| RoHS | Совместим |
Комплекты разработчика и оценочные наборы
- Evaluation Modules & Boards: ADS1256EVM-PDK
ADS1256 Performance Demonstration Kit
Статус продукта: В производстве (Рекомендуется для новых разработок) - Evaluation Modules & Boards: DLPNIRSCANEVM
DLPВ® NIRscanВ™ Evaluation Module
Статус продукта: В производстве (Рекомендуется для новых разработок)
Application Notes
- Using Ceramic Resonators with the ADS1255/6PDF, 233 Кб, Файл опубликован: 9 июл 2004
The ADS1255 and ADS1256 each have an onboard clock generator designed to use an external crystal to create the system clock. External ceramic resonators can also be used, since resonators operate with a similar clock generator circuit. Compared with quartz crystals, resonators typically are less accurate and have lower Q, and must be carefully evaluated before being used with either the ADS1255/6 - Seismic Sensor Demonstration Using an ADS1255 and TMS320VC5510A DSP (Rev. A)PDF, 193 Кб, Версия: A, Файл опубликован: 29 янв 2009
A prototype system for seismic sensing for such applications as oil exploration, earthquake detection, and acoustic monitoring is described. The system uses a delta-sigma converter and low-power DSP. Measured system performance met the requirements for such systems. - Measuring Single-Ended 0V-5V Signals with Differential Delta-Sigma ADCs (Rev. A)PDF, 48 Кб, Версия: A, Файл опубликован: 18 май 2015
- Interfacing the ADS1251/52 to the MSP430PDF, 264 Кб, Файл опубликован: 8 мар 2005
This application report demonstrates an effective method to interface the ADS1251 and ADS1252 sigma-delta data converters to the MSP430F449 microcontroller. The software for this application report was developed on the HPA449 development system. - Digital Filter Types in Delta-Sigma ADCsPDF, 219 Кб, Файл опубликован: 27 июн 2017
This application report discusses digital filters which are a ubiquitous feature in delta-sigma analog todigital converters (ADCs). Digital low-pass filters are essential to the functionality of a delta-sigma ADCwhich relies on oversampling and noise shaping to push quantization noise out of band. There arevariations between the types of digital filters used in delta-sigma ADCs that provide - Analog-to-Digital Converter Grounding Practices Affect System Performance (Rev. A)PDF, 69 Кб, Версия: A, Файл опубликован: 18 май 2015
- A Glossary of Analog-to-Digital Specifications and Performance Characteristics (Rev. B)PDF, 425 Кб, Версия: B, Файл опубликован: 9 окт 2011
This glossary is a collection of the definitions of Texas Instruments' Delta-Sigma (О”ОЈ), successive approximation register (SAR), and pipeline analog-to-digital (A/D) converter specifications and performance characteristics. Although there is a considerable amount of detail in this document, the product data sheet for a particular product specification is the best and final reference. - Principles of Data Acquisition and Conversion (Rev. A)PDF, 132 Кб, Версия: A, Файл опубликован: 16 апр 2015
Модельный ряд
Серия: ADS1255 (4)
- ADS1255IDBR ADS1255IDBRG4 ADS1255IDBT ADS1255IDBTG4
Классификация производителя
- Semiconductors > Data Converters > Analog-to-Digital Converters (ADCs) > Precision ADCs (<=10MSPS)
