AOZ1376DI
20V 5A ECPowerв„ў Protection Switch
with True Reverse Current Blocking General Description Features The AOZ1376DI power switch is intended for applications
that require circuit protections. The input operating voltage
ranges between 3.4V and 22V, making it ideal for USB
Type-C power delivery applications. The VIN terminal is
rated as 28V Absolute Maximum. The AOZ1376DI provides
under-voltage lockout, over-voltage and over-temperature
protection function. The over-voltage protection threshold is
selectable by an external resistor. The internal soft-start
circuitry controls inrush current due to highly capacitive
loads. The slew rate can be adjusted using an external
capacitor. пЃ¬ 20mпЃ— typical ON resistance пЃ¬ 3.4V to 22V operating input voltage пЃ¬ VIN is rated 28V Abs max. пЃ¬ True reverse current blocking пЃ¬ Selectable over-voltage protection пЃ¬ Programmable soft-start пЃ¬ VIN Under-voltage lockout пЃ¬ VIN and VOUT over-voltage lockout пЃ¬ Thermal shutdown protection пЃ¬ В±4kV HBM ESD rating пЃ¬ В±8kV HBM ESD rating for VIN and VOUT пЃ¬ 3mm x 3mm DFN-12L package The AOZ1376DI has True Reverse-Current Blocking
(TRCB) protection to avoid undesired reverse-current from
VOUT to VIN at all time.

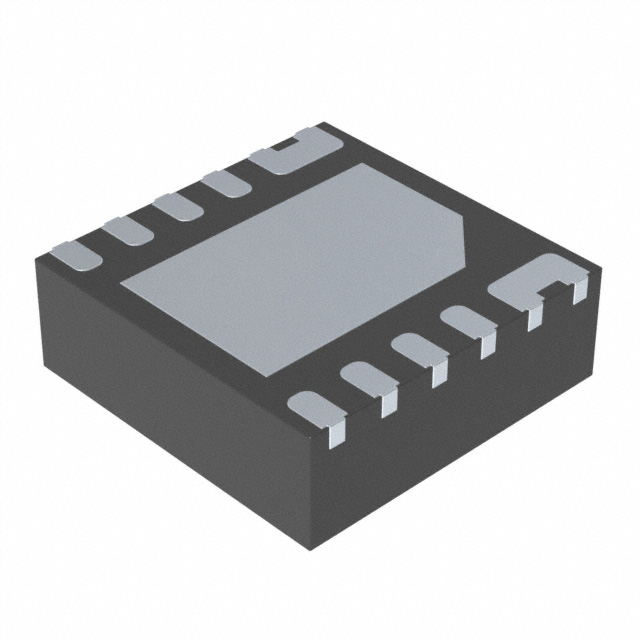

The AOZ1376DI is available in a 3mm x 3mm DFN-12
package which can operate over -40В°C to +85В°C temperature range. Applications
пЃ¬ Thunderbolt/USB Type-C PD power switch пЃ¬ Portable devices пЃ¬ Notebook/desktop computers пЃ¬ Monitors пЃ¬ Docking station/dongles Typical Application Rev. 1.0 June 2018 www.aosmd.com Page 1 of 14 AOZ1376DI
Ordering Information
Part Number Fault Recovery Temperature Range Package Environmental AOZ1376DI-01 Auto-Restart -40В°C to +85В°C 3mm x 3mm DFN-12L RoHS AOZ1376DI-02 Latch-Off -40В°C to +85В°C 3mm x 3mm DFN-12L RoHS All AOS products are offered in packages with Pb-free plating and compliant to RoHS standards.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information. Pin Configuration
VOUT ` VIN VOUT
POVP …
